Item # 10-18018.5-0-2000MM
MODULAR SOLUTIONS EXTRUDED PROFILE
18.5MM X 180MM, CUT TO THE LENGTH OF 2000 MM
- $113.96 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 20.50
GENERAL SPECIFICATIONS:

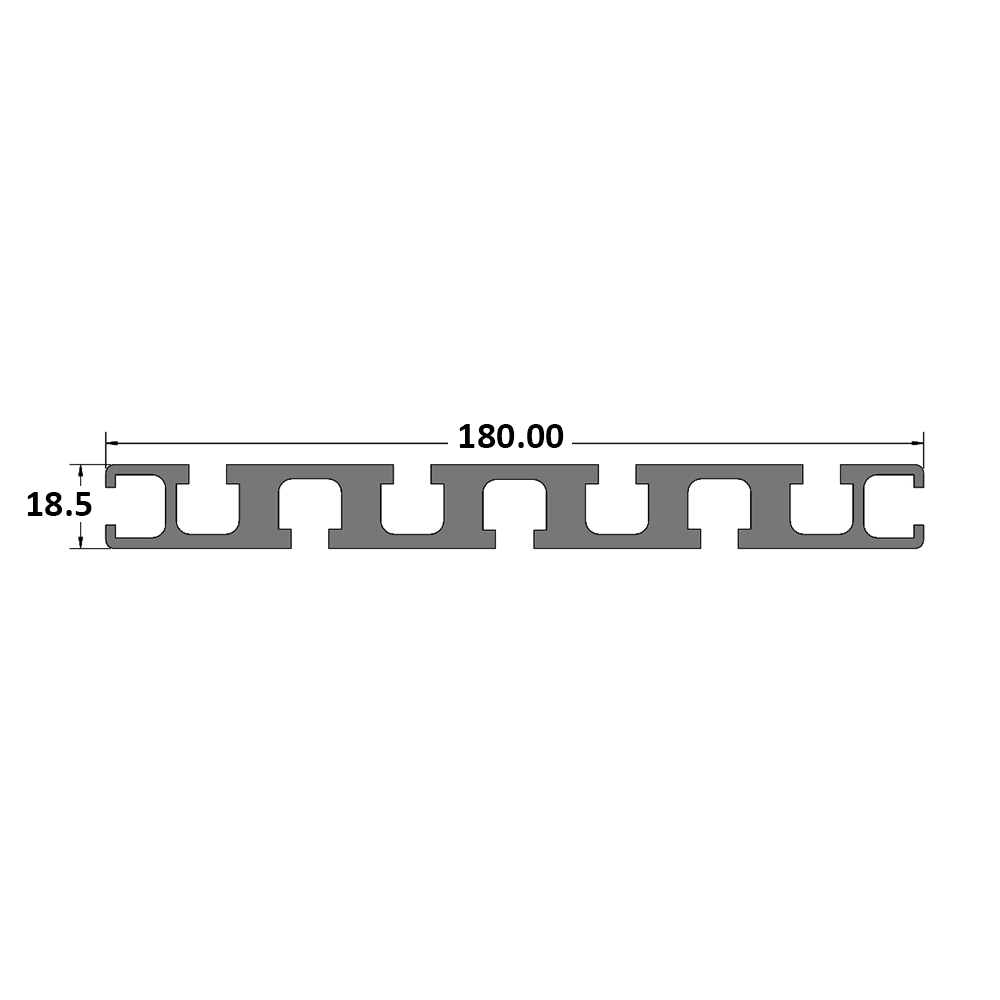

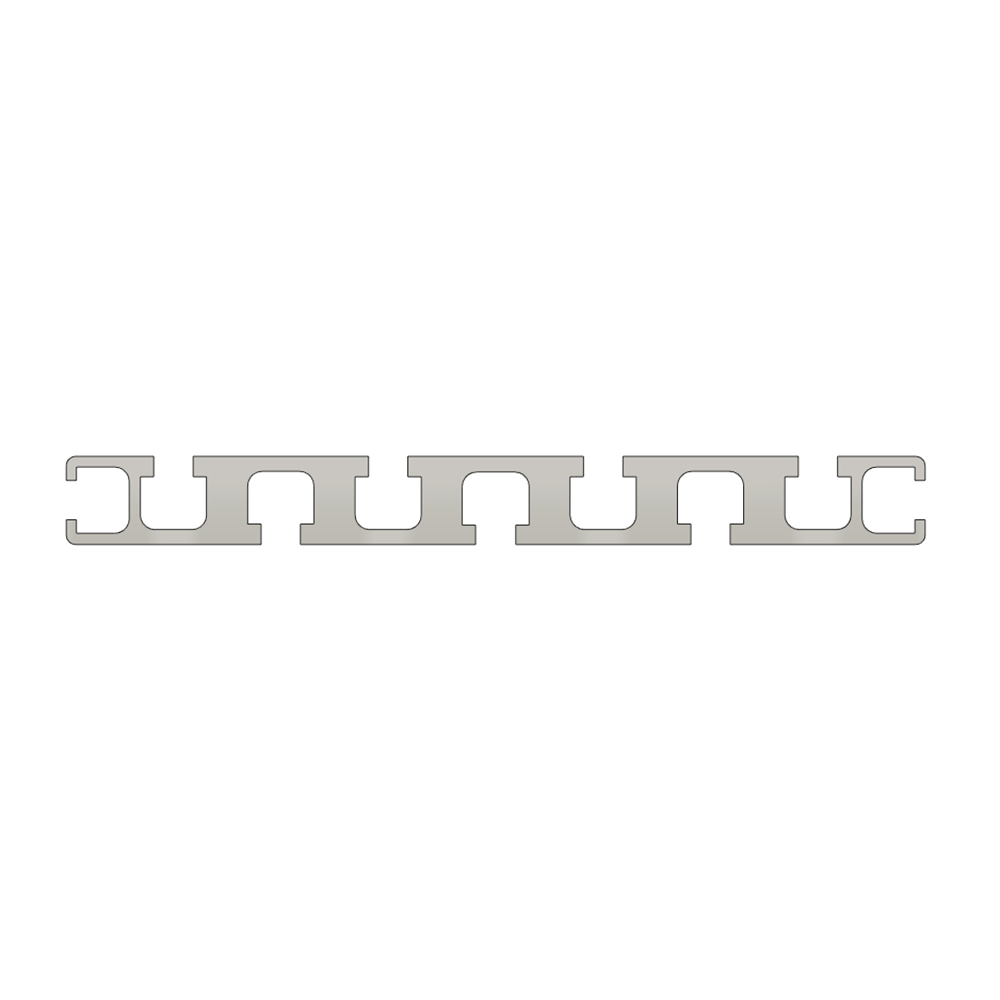

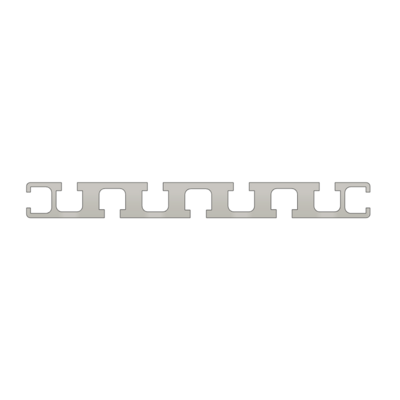

- 180MM X 18.5MM PROFILE
- STANDARD 8MM T SLOT
- CLEAR COAT ANODIZATION
- MATERIAL: 6063 T6 ANODIZED ALUMINUM
TECHNICAL:
- IX = 6.65 CM4
- IY = 401 CM4
- USE END CAP = 60-110-2 (LT GRAY), 60-110-1 (BLACK)
INFO:
- USE END CAP = 60-110-2 (LT GRAY), 60-110-1 (BLACK)

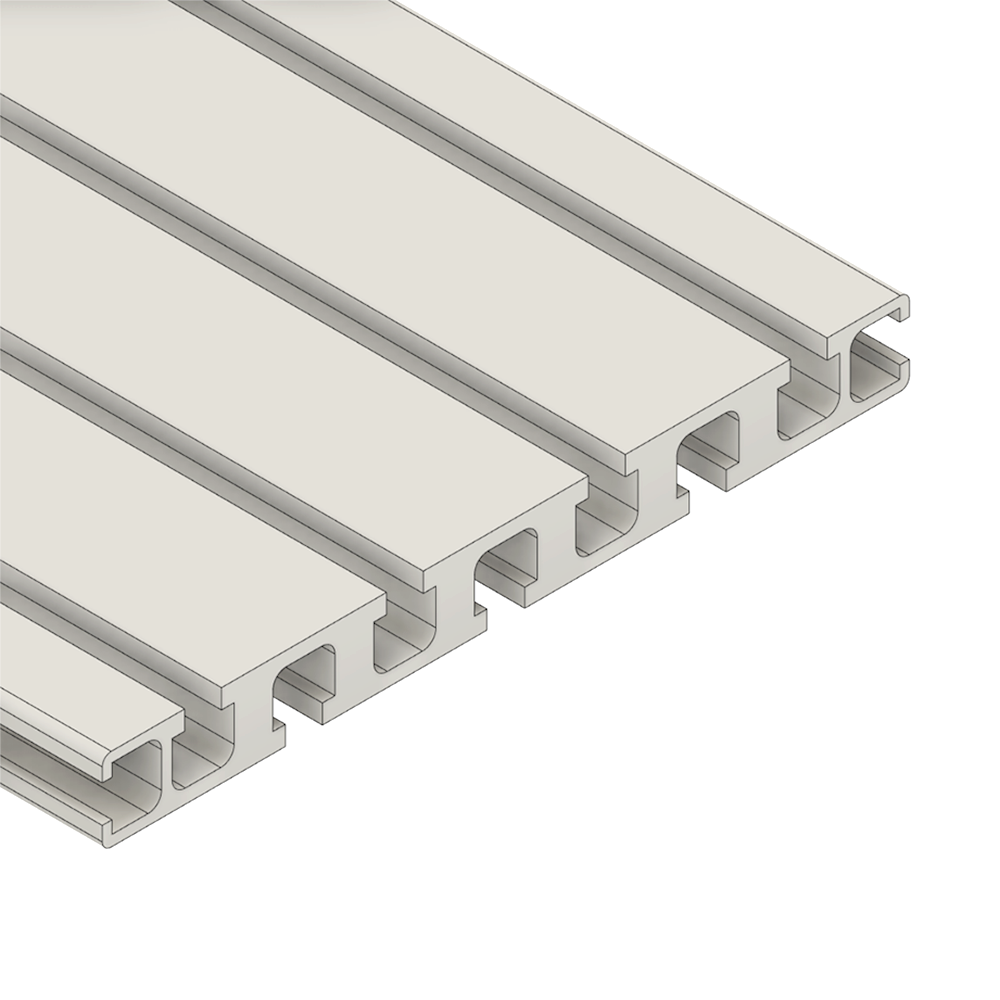

- BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE
Click image to enlarge
Specifications
| CUT LENGTH | 2000 MM |
Item # 10-18018.5-0-2000MM
MODULAR SOLUTIONS EXTRUDED PROFILE
18.5MM X 180MM, CUT TO THE LENGTH OF 2000 MM
