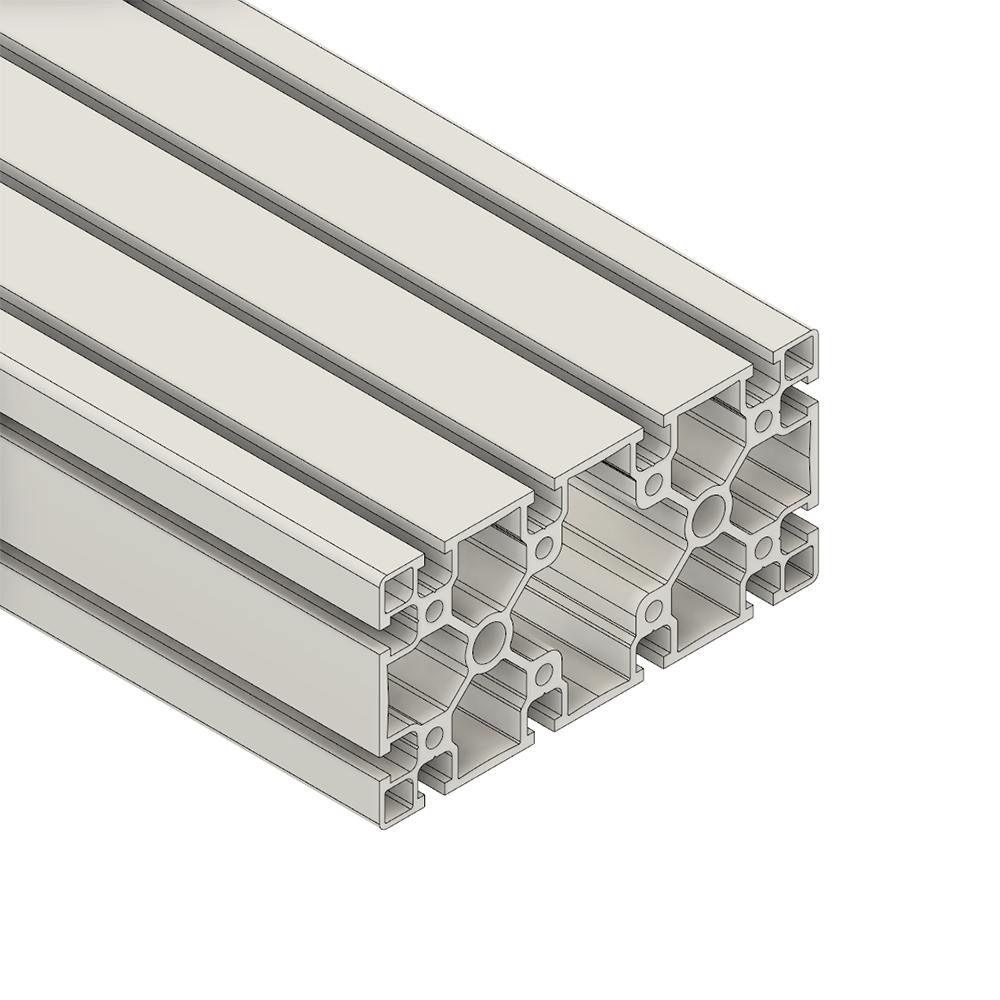

Item # 10-18090-0-72IN
MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X 180MM, CUT TO THE LENGTH OF 72 INCH
- $370.95 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 44.00
GENERAL SPECIFICATIONS:

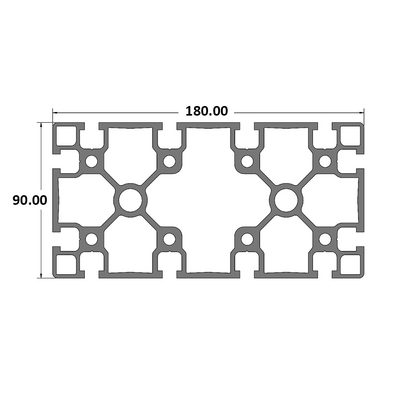

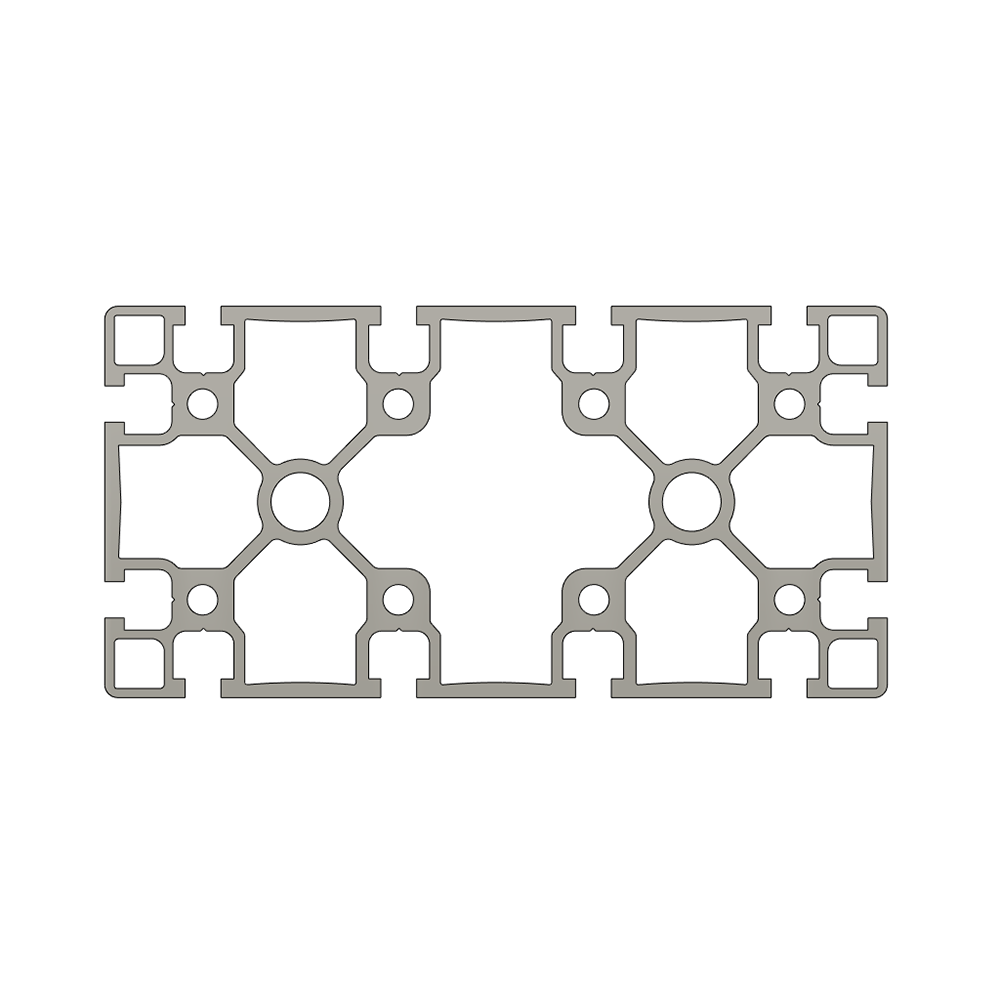

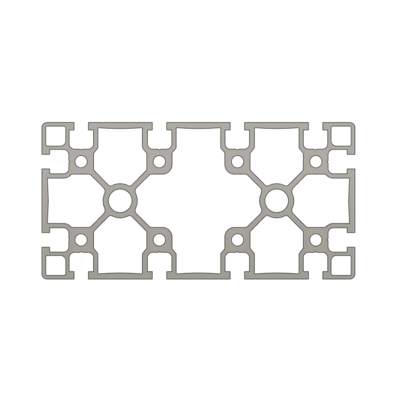

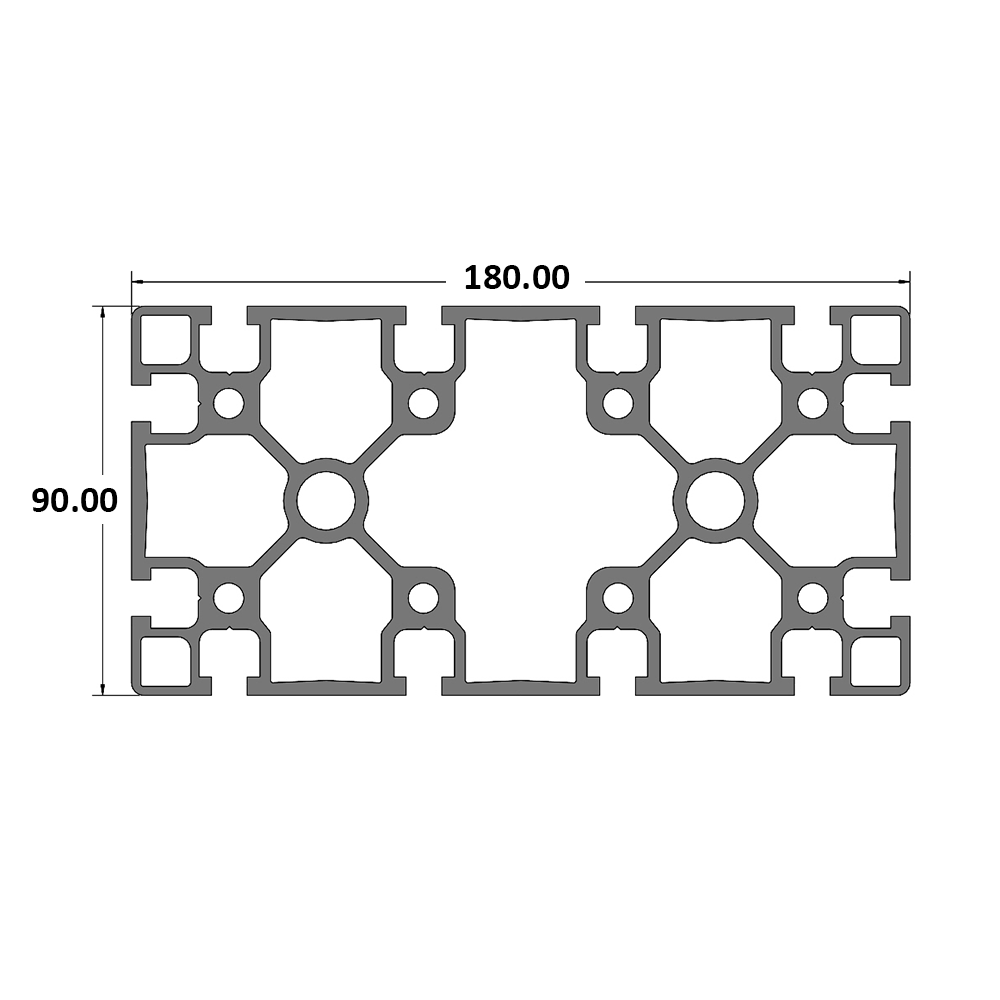

- 180MM X 90MM PROFILE
- STANDARD 8MM T SLOT
- CLEAR COAT ANODIZATION
- MATERIAL: 6063 T6 ANODIZED ALUMINUM
TECHNICAL:
- IX = 348.5 CM4
- IY = 1298.7 CM4
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-170-1 (BLACK), 60-170-2 (LT GRAY)
INFO:
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-170-1 (BLACK), 60-170-2 (LT GRAY)
- BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE
Click image to enlarge
Specifications
| CUT LENGTH | 72 INCH |
Item # 10-18090-0-72IN
MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X 180MM, CUT TO THE LENGTH OF 72 INCH
Documents
×
