Item # 10-3030-0-800MM

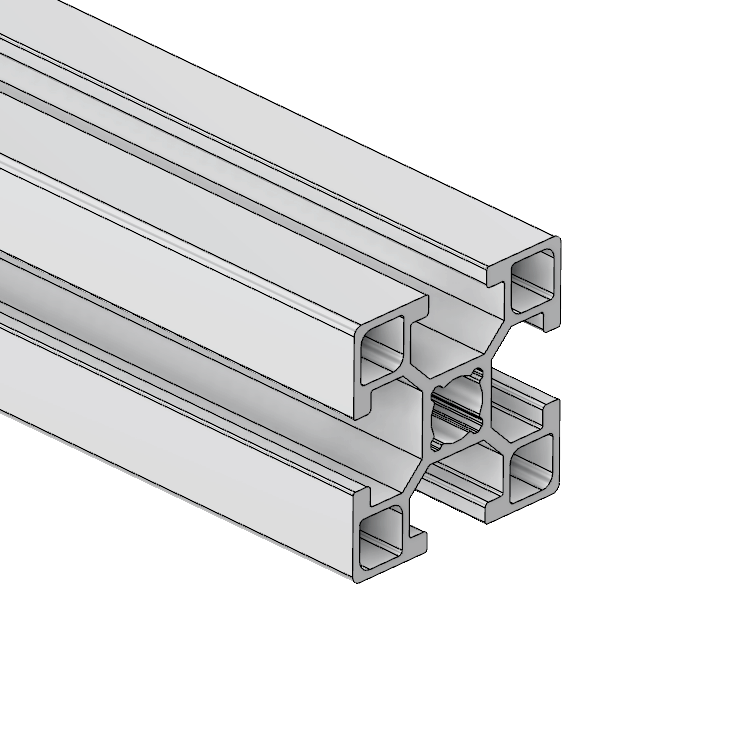

MODULAR SOLUTIONS EXTRUDED PROFILE
30MM X 30MM, 6063 T6, CUT TO THE LENGTH OF 800 MM

  • $11.02 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 2.16

MODULAR SOLUTIONS EXTRUDED PROFILE, 30MM X 30MM, 6063 T6, CUT TO THE LENGTH OF 800 MM

GENERAL SPECIFICATIONS:

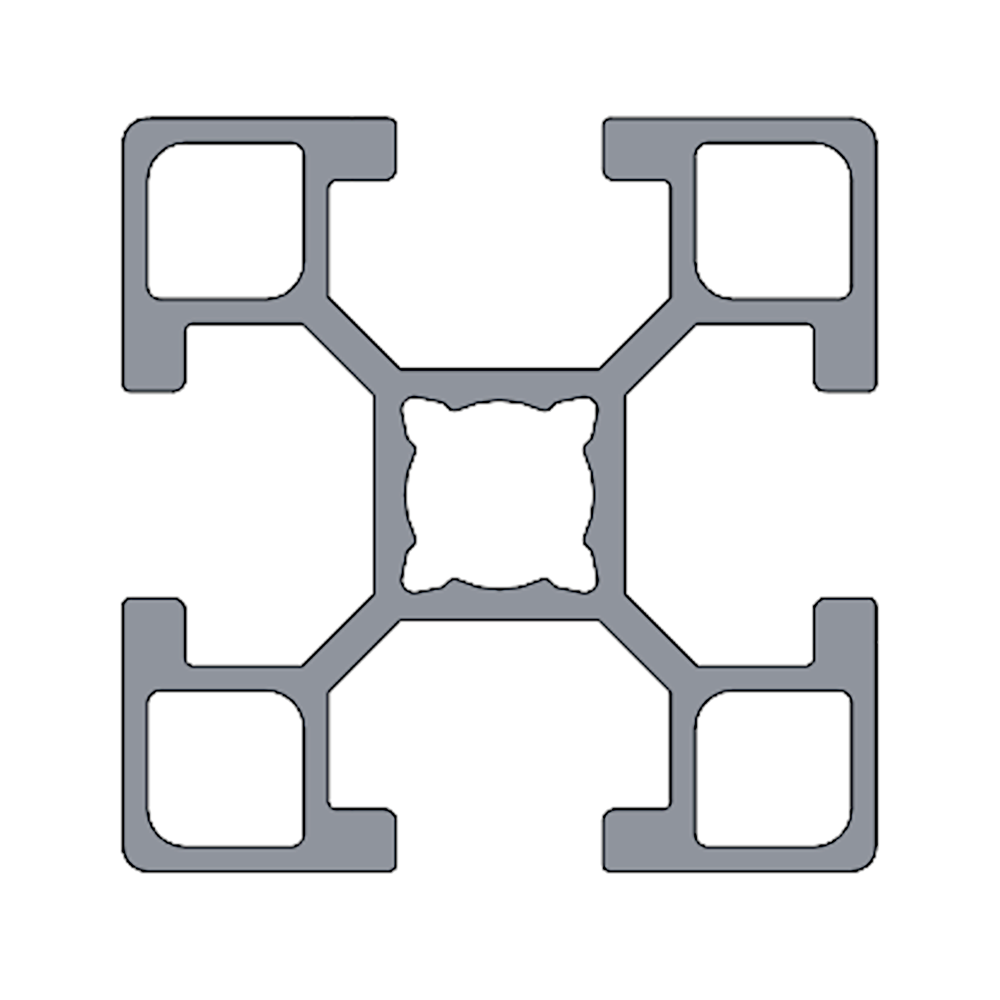

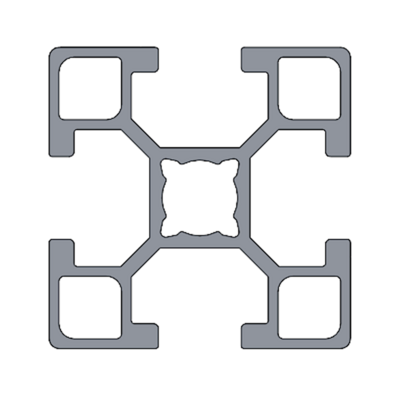

  • 30MM X 30MM PROFILE
  • STANDARD 8MM T SLOT
  • CLEAR COAT ANODIZATION
  • MATERIAL: 6063 T6 ANODIZED ALUMINUM

TECHNICAL:

  • IX = 2.78 CM4
  • IY = 2.78 CM4
  • FOR USE WITH 8MM SELF TAPPING SCREWS
  • USE END CAP = 60-200-2 (LT GRAY)

INFO:

  • FOR USE WITH 8MM SELF TAPPING SCREWS
  • USE END CAP = 60-200-2 (LT GRAY)
  • BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE

10-3030-0-800MM MODULAR SOLUTIONS EXTRUDED PROFILE<BR>30MM X 30MM, 6063 T6, CUT TO THE LENGTH OF 800 MM
10-3030-0-800MM MODULAR SOLUTIONS EXTRUDED PROFILE<BR>30MM X 30MM, 6063 T6, CUT TO THE LENGTH OF 800 MM
Click image to enlarge
10-3030-0-800MM MODULAR SOLUTIONS EXTRUDED PROFILE<BR>30MM X 30MM, 6063 T6, CUT TO THE LENGTH OF 800 MM
10-3030-0-800MM MODULAR SOLUTIONS EXTRUDED PROFILE<BR>30MM X 30MM, 6063 T6, CUT TO THE LENGTH OF 800 MM

Specifications

CUT LENGTH 800 MM

Item # 10-3030-0-800MM

MODULAR SOLUTIONS EXTRUDED PROFILE
30MM X 30MM, 6063 T6, CUT TO THE LENGTH OF 800 MM

  • $11.02 / EA
    • Log in to see if custom discounts apply

    Documents

    10-3030-0-800MM MODULAR SOLUTIONS EXTRUDED PROFILE<BR>30MM X 30MM, 6063 T6, CUT TO THE LENGTH OF 800 MM
    10-3030-0-800MM MODULAR SOLUTIONS EXTRUDED PROFILE<BR>30MM X 30MM, 6063 T6, CUT TO THE LENGTH OF 800 MM
