Item # 10-3232RC-0-2000MM

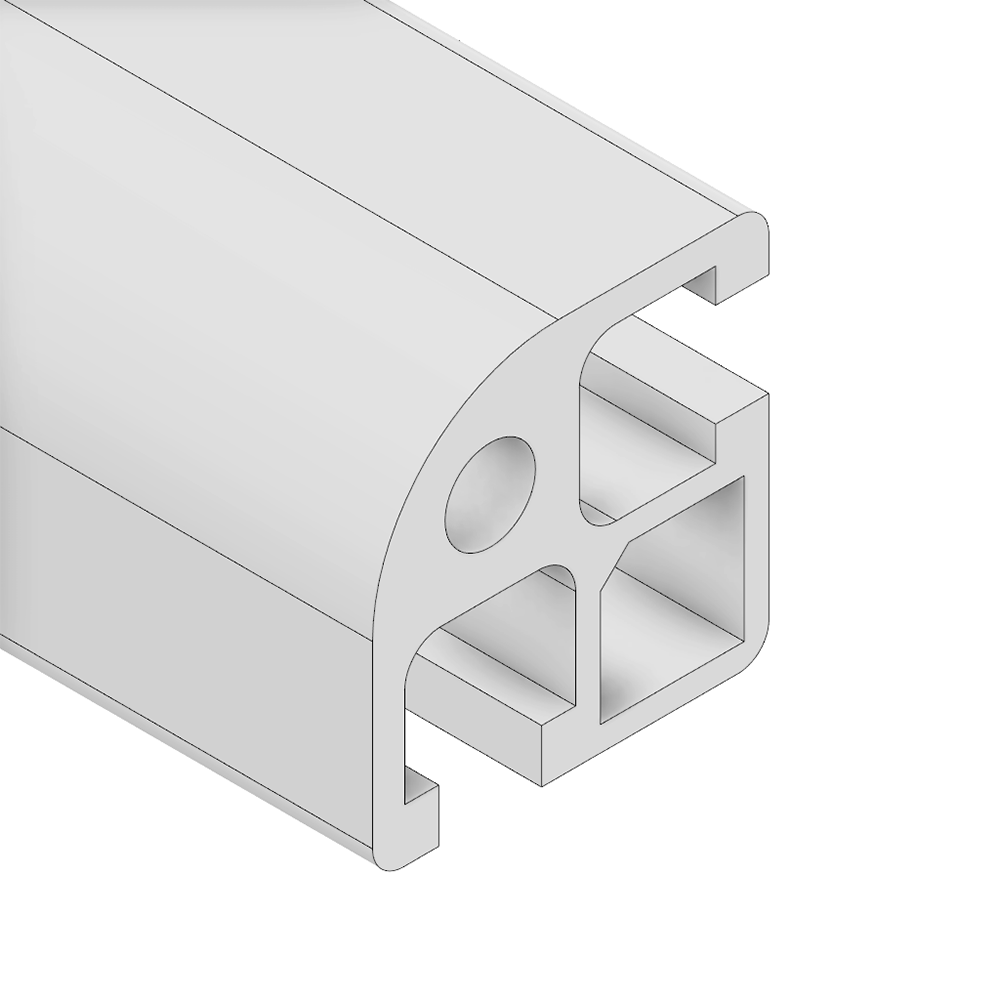

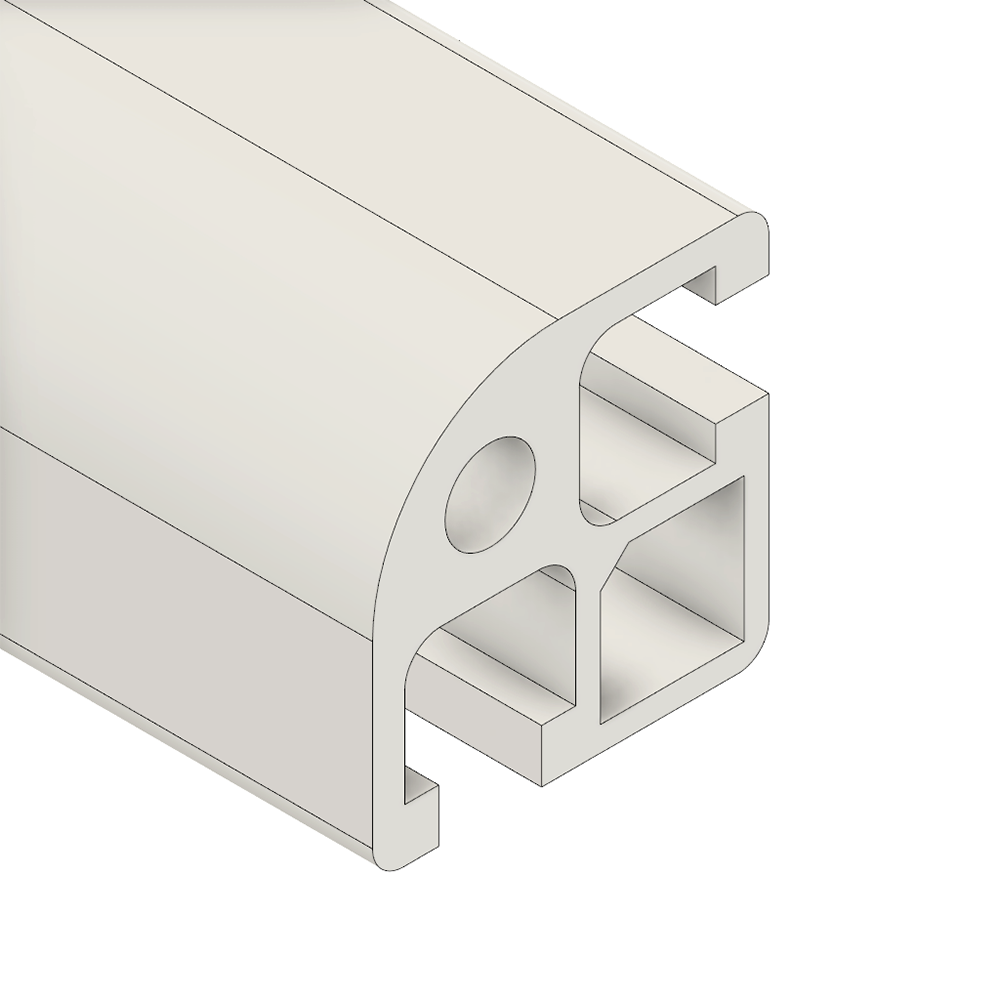

MODULAR SOLUTIONS EXTRUDED PROFILE
32MM X 32MM ROUND CORNER, CUT TO THE LENGTH OF 2000 MM
- $31.00 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 5.12
GENERAL SPECIFICATIONS:

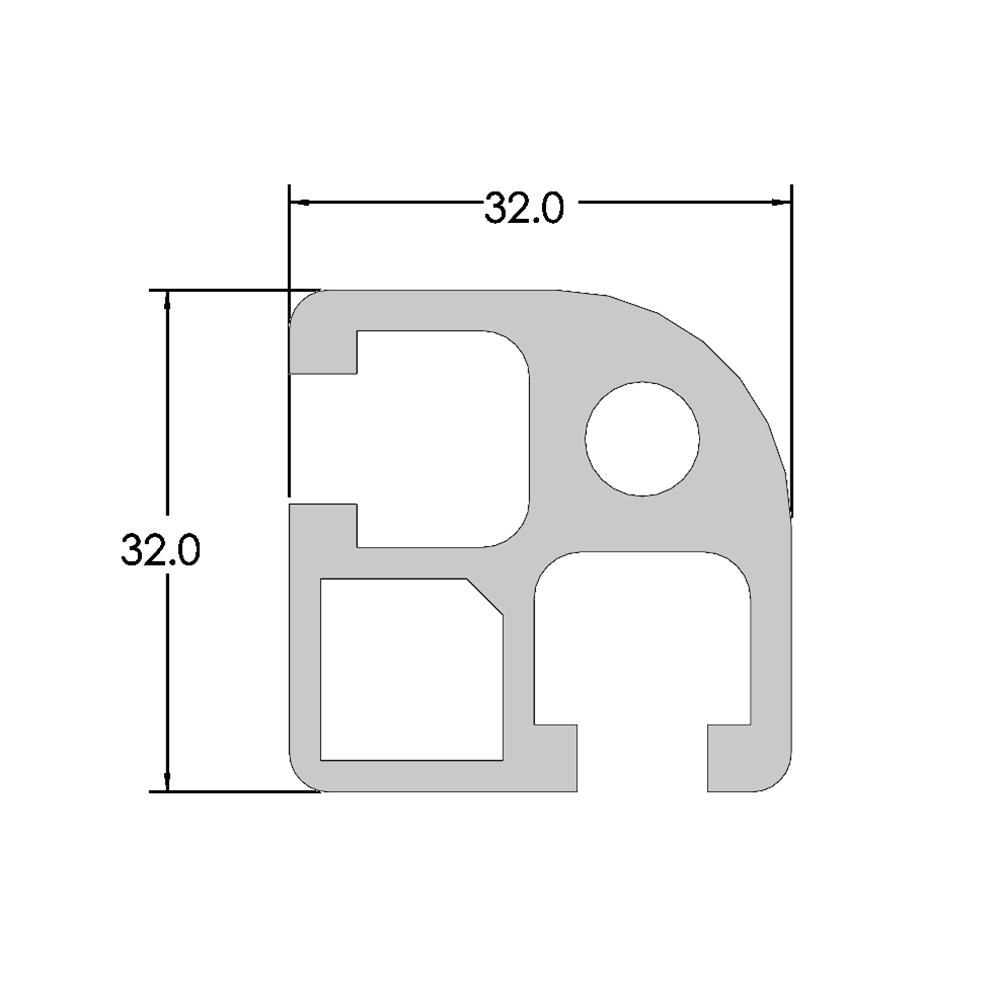

- 32MM X 32MM ROUND CORNER PROFILE
- STANDARD 8MM T SLOT
- CLEAR COAT ANODIZATION
- MATERIAL: 6063 T6 ANODIZED ALUMINUM
TECHNICAL:
- IX = 4.10 CM4
- IY = 4.10 CM4
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-220-1 (BLACK), 60-220-2 (LT GRAY)
INFO:
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-220-1 (BLACK), 60-220-2 (LT GRAY)
- ROUNDER PROFILE FOR VISUAL APPEAL
Click image to enlarge
Specifications
| CUT LENGTH | 2000 MM |
Item # 10-3232RC-0-2000MM
MODULAR SOLUTIONS EXTRUDED PROFILE
32MM X 32MM ROUND CORNER, CUT TO THE LENGTH OF 2000 MM
