Item # 10-45135-0-60IN

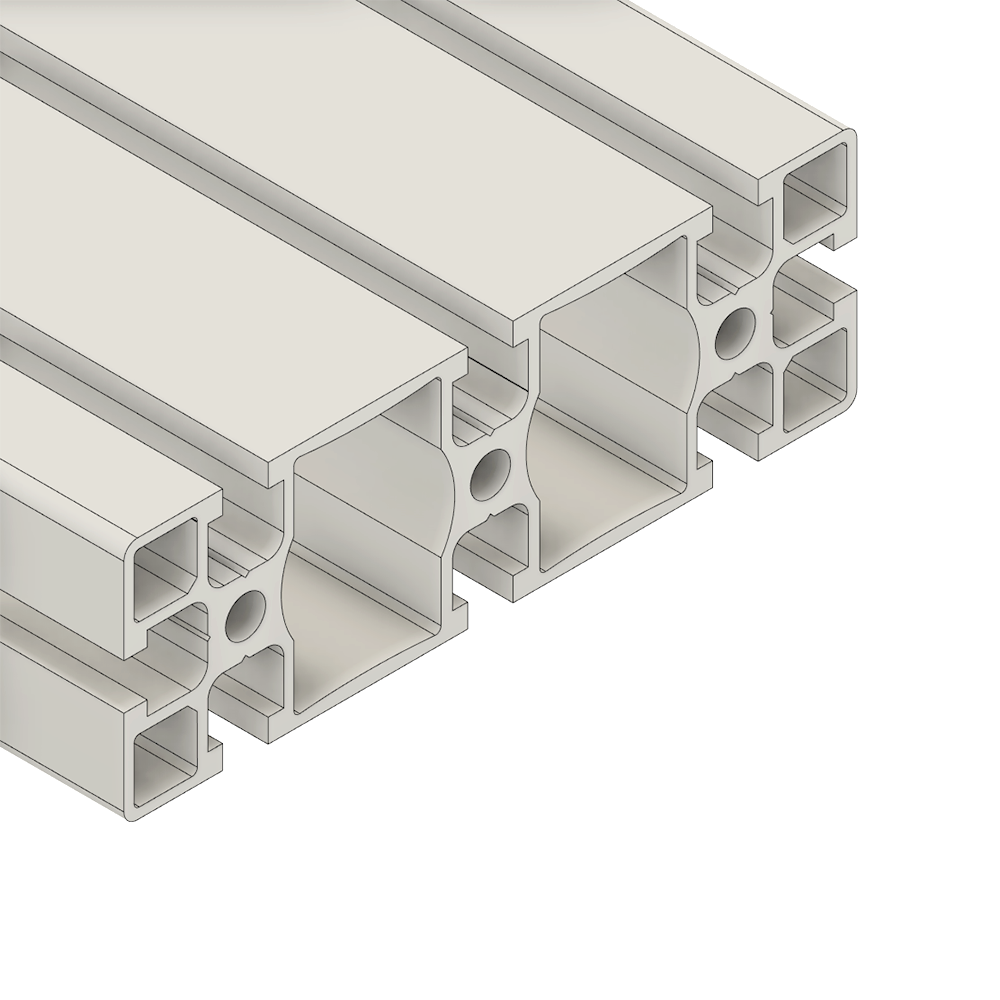

MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 135MM, CUT TO THE LENGTH OF 60 INCH
- $72.79 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 15.15
GENERAL SPECIFICATIONS:

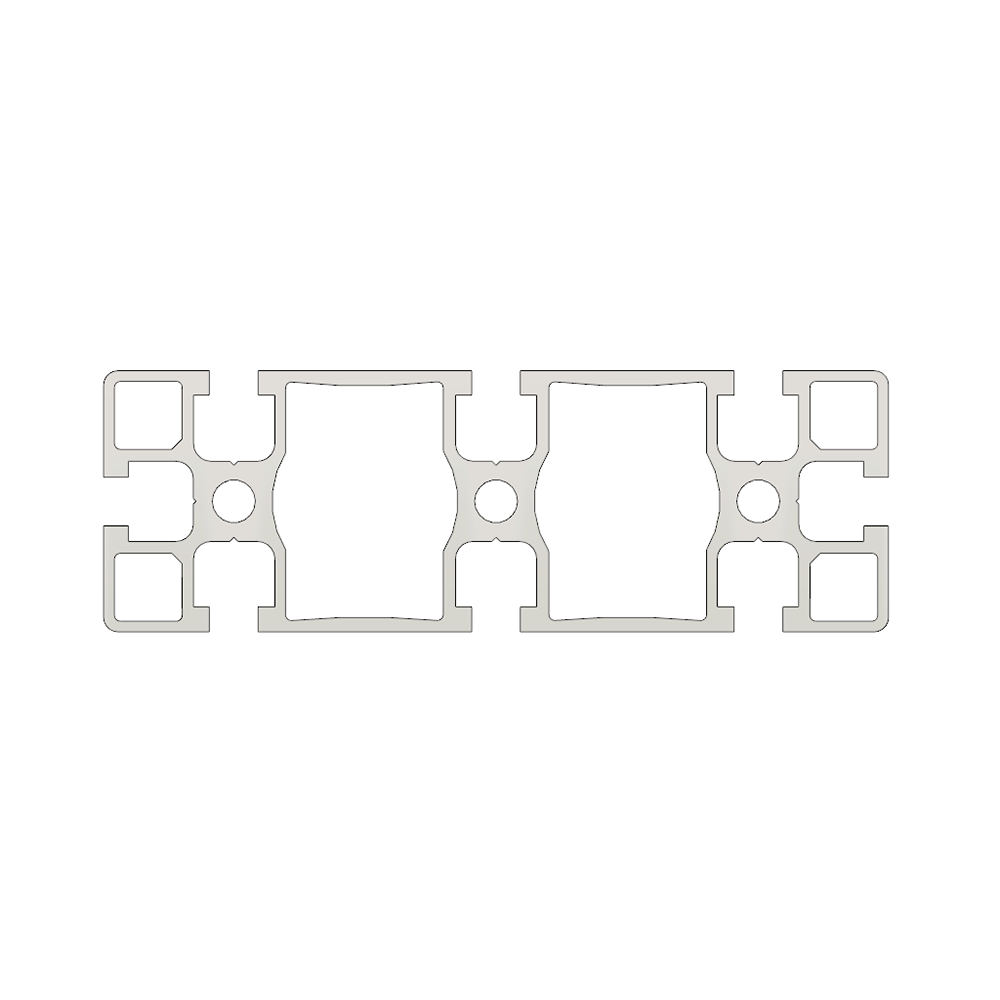

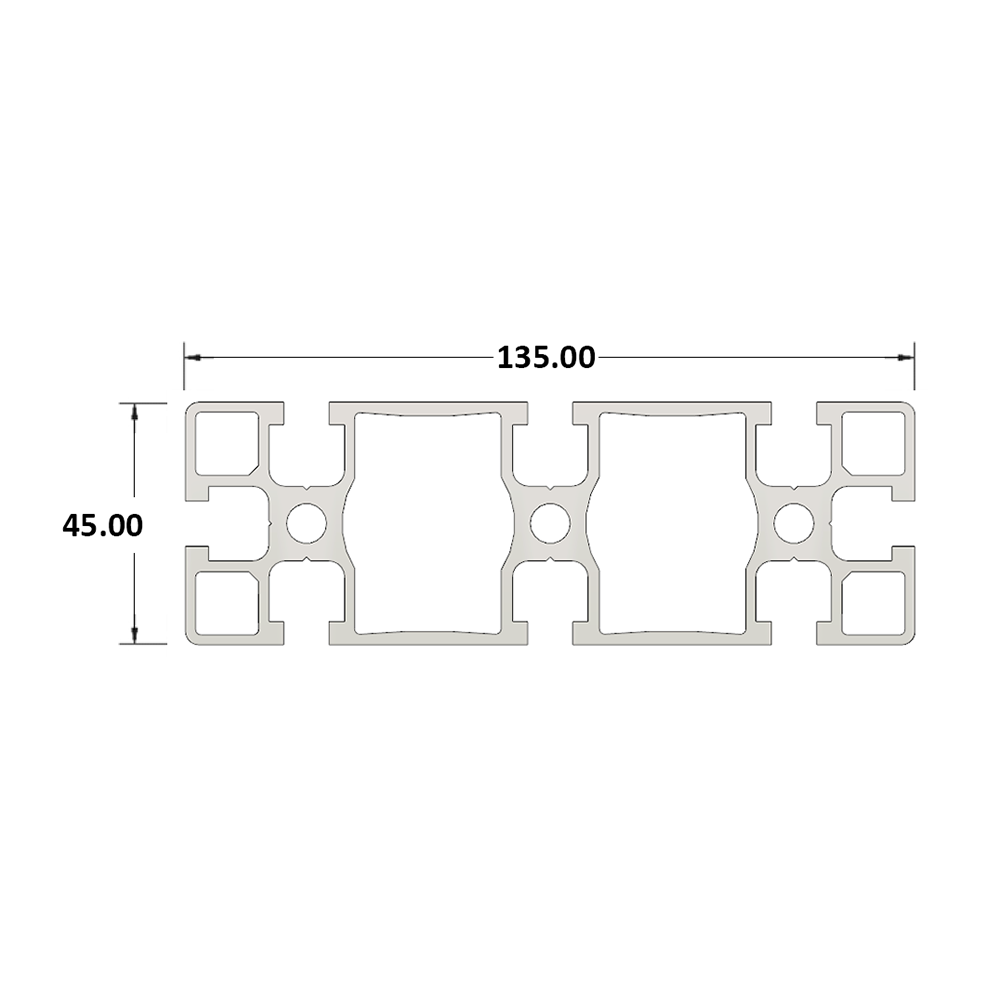

- 45MM X 135MM PROFILE
- STANDARD 8MM T SLOT
- CLEAR COAT ANODIZATION
- MATERIAL: 6063 T6 ANODIZED ALUMINUM
TECHNICAL:
- IX = 36.97 CM4
- IY = 304.13 CM4
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 140-1 (BLACK), 60-140-2 (LT GRAY)
INFO:
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 140-1 (BLACK), 60-140-2 (LT GRAY)
- BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE
Click image to enlarge
Specifications
| CUT LENGTH | 60 INCH |
Item # 10-45135-0-60IN
MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 135MM, CUT TO THE LENGTH OF 60 INCH
