Item # 10-4545R-0-72IN
MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 45MM ROUND, CUT TO THE LENGTH OF 72 INCH
- $38.10 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 13.04
GENERAL SPECIFICATIONS:

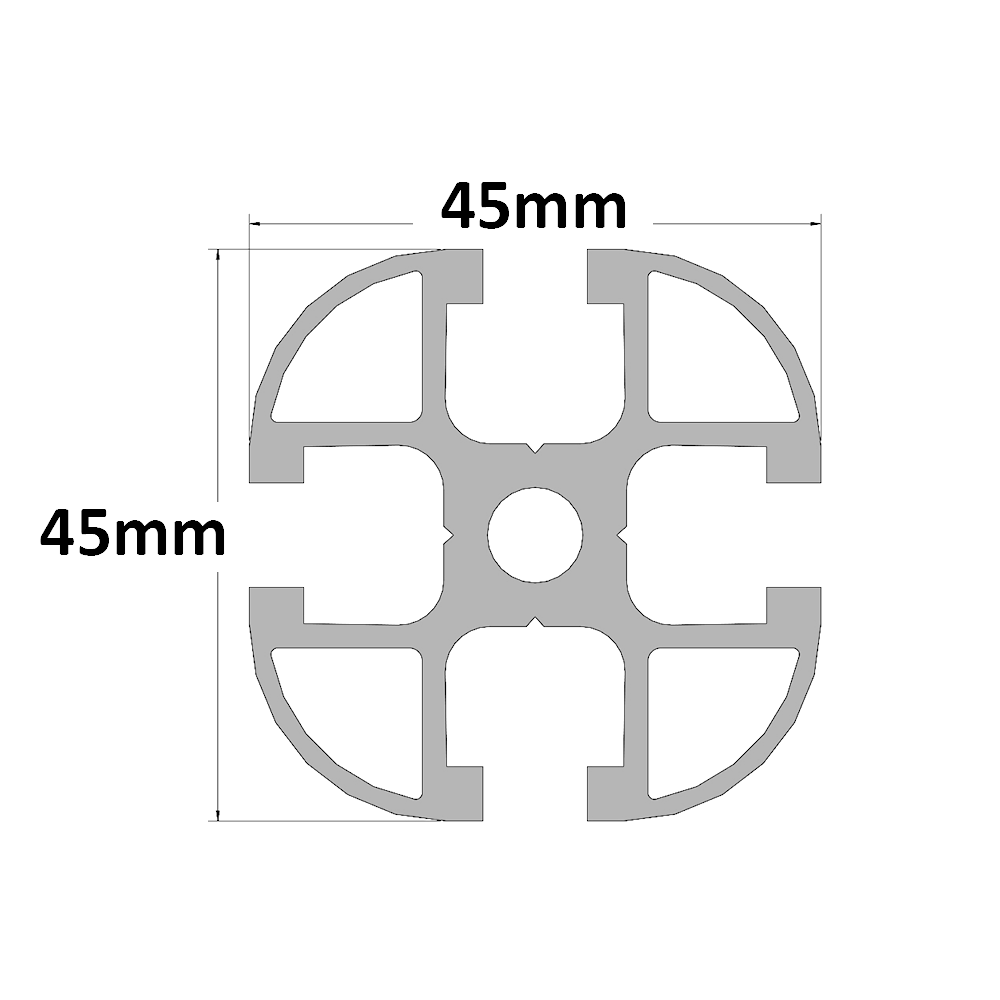

- 45MM X 45MM ROUND PROFILE
- STANDARD 8MM T SLOT
- CLEAR COAT ANODIZATION
- MATERIAL: 6063 T6 ANODIZED ALUMINUM
TECHNICAL:
- IX = 9.68 CM4
- IY = 9.68 CM4
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-290-2 (LT GRAY), 60-290-1 (BLACK)
INFO:
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-290-2 (LT GRAY), 60-290-1 (BLACK)
- BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE
Click image to enlarge
Specifications
| CUT LENGTH | 72 INCH |
Item # 10-4545R-0-72IN
MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 45MM ROUND, CUT TO THE LENGTH OF 72 INCH
