Item # 10-4545RC-0-1500MM

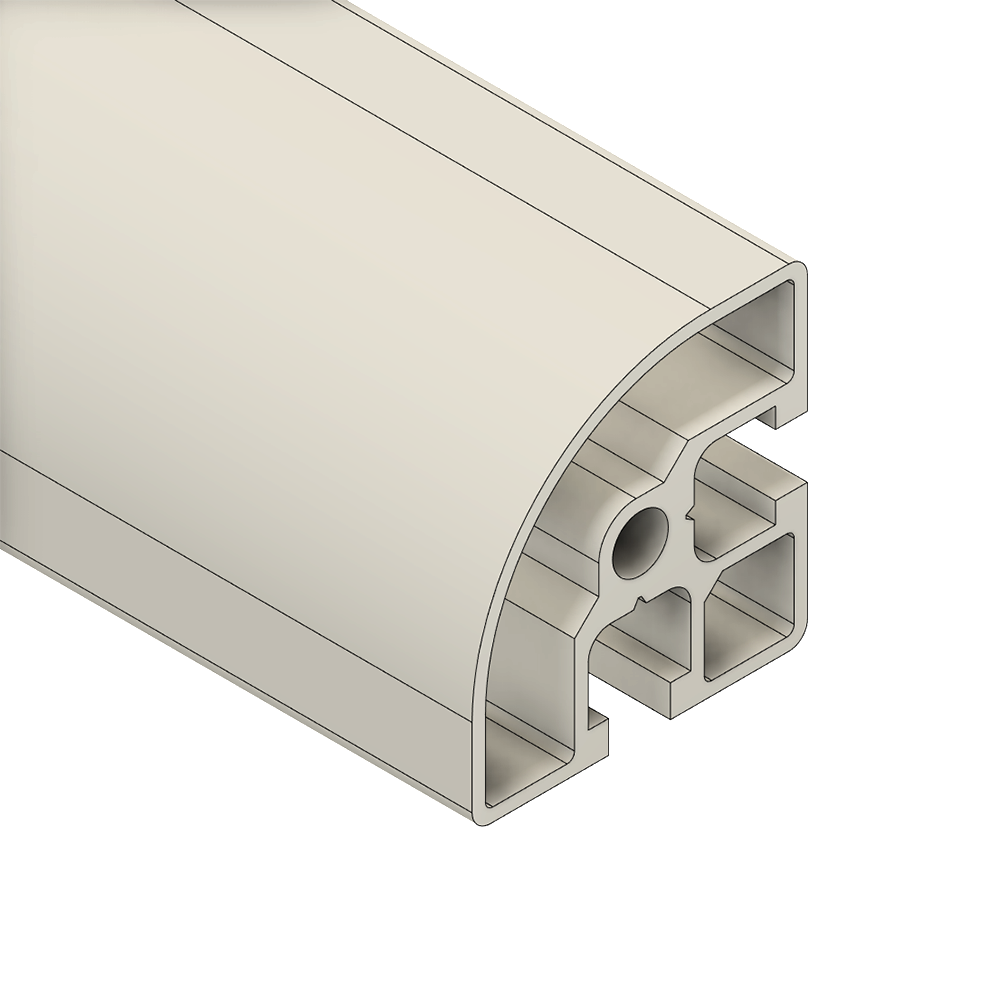

MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 45MM ROUND CORNER, CUT TO THE LENGTH OF 1500 MM
- $37.98 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 4.64
GENERAL SPECIFICATIONS:

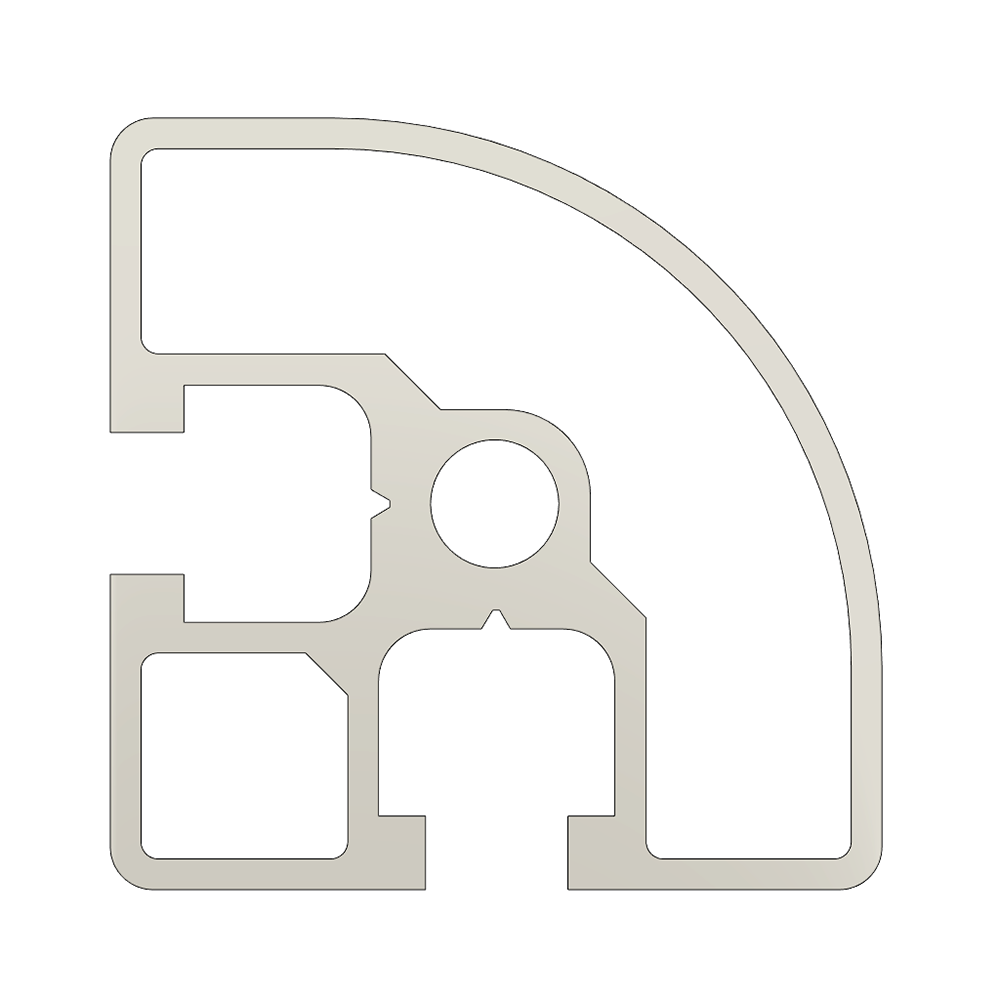

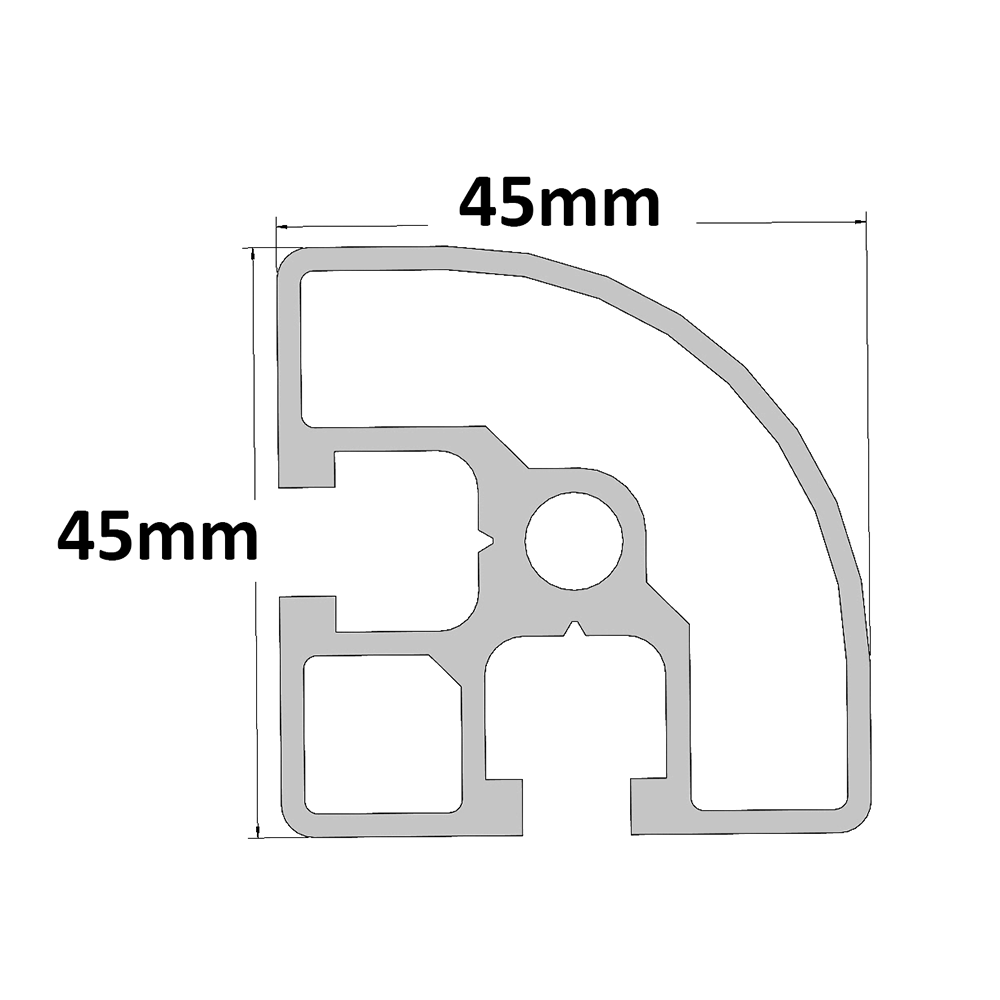

- 45MM X 45MM ROUND CORNER PROFILE
- STANDARD 8MM T SLOT
- CLEAR COAT ANODIZATION
- MATERIAL: 6063 T6 ANODIZED ALUMINUM
TECHNICAL:
- IX = 9.19 CM4
- IY = 9.19 CM4
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-120-2 (LT GRAY), 60-120-1 (BLACK)
INFO:
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-120-2 (LT GRAY), 60-120-1 (BLACK)
- BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE
Click image to enlarge
Specifications
| CUT LENGTH | 1500 MM |
Item # 10-4545RC-0-1500MM
MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 45MM ROUND CORNER, CUT TO THE LENGTH OF 1500 MM
Documents
×
