Item # 10-4590-0-900MM

MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 90MM, CUT TO THE LENGTH OF 900 MM

  • $30.71 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 4.81

MODULAR SOLUTIONS EXTRUDED PROFILE, 45MM X 90MM, CUT TO THE LENGTH OF 900 MM

GENERAL SPECIFICATIONS:

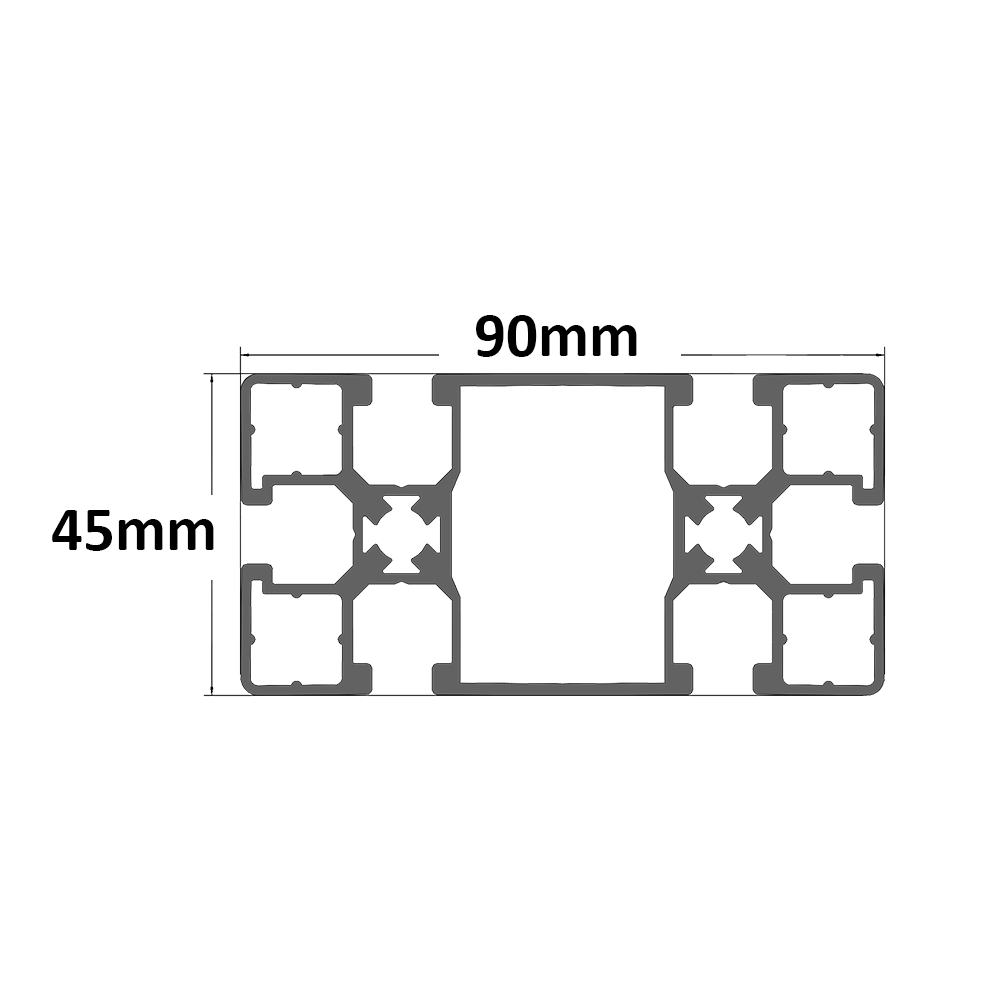

  • 45MM X 90MM PROFILE
  • STANDARD 8MM T SLOT
  • CLEAR COAT ANODIZATION
  • MATERIAL: 6063 T6 ANODIZED ALUMINUM

TECHNICAL:

  • IX = 18.87 CM4
  • IY = 74.17 CM4
  • FOR USE WITH 8MM SELF TAPPING SCREWS
  • END CAP 60-020-0, 60-020-1, 60-020-2, OR 60-020-5

INFO:

  • FOR USE WITH 8MM SELF TAPPING SCREWS
  • END CAP 60-020-0, 60-020-1, 60-020-2, OR 60-020-5
  • BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE

10-4590-0-900MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>45MM X 90MM, CUT TO THE LENGTH OF 900 MM
10-4590-0-900MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>45MM X 90MM, CUT TO THE LENGTH OF 900 MM
10-4590-0-900MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>45MM X 90MM, CUT TO THE LENGTH OF 900 MM
Click image to enlarge
10-4590-0-900MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>45MM X 90MM, CUT TO THE LENGTH OF 900 MM
10-4590-0-900MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>45MM X 90MM, CUT TO THE LENGTH OF 900 MM
10-4590-0-900MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>45MM X 90MM, CUT TO THE LENGTH OF 900 MM

Specifications

CUT LENGTH 900 MM

Item # 10-4590-0-900MM

MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 90MM, CUT TO THE LENGTH OF 900 MM

  • $30.71 / EA
    • Log in to see if custom discounts apply
