Item # 10-9018.5-0-2000MM

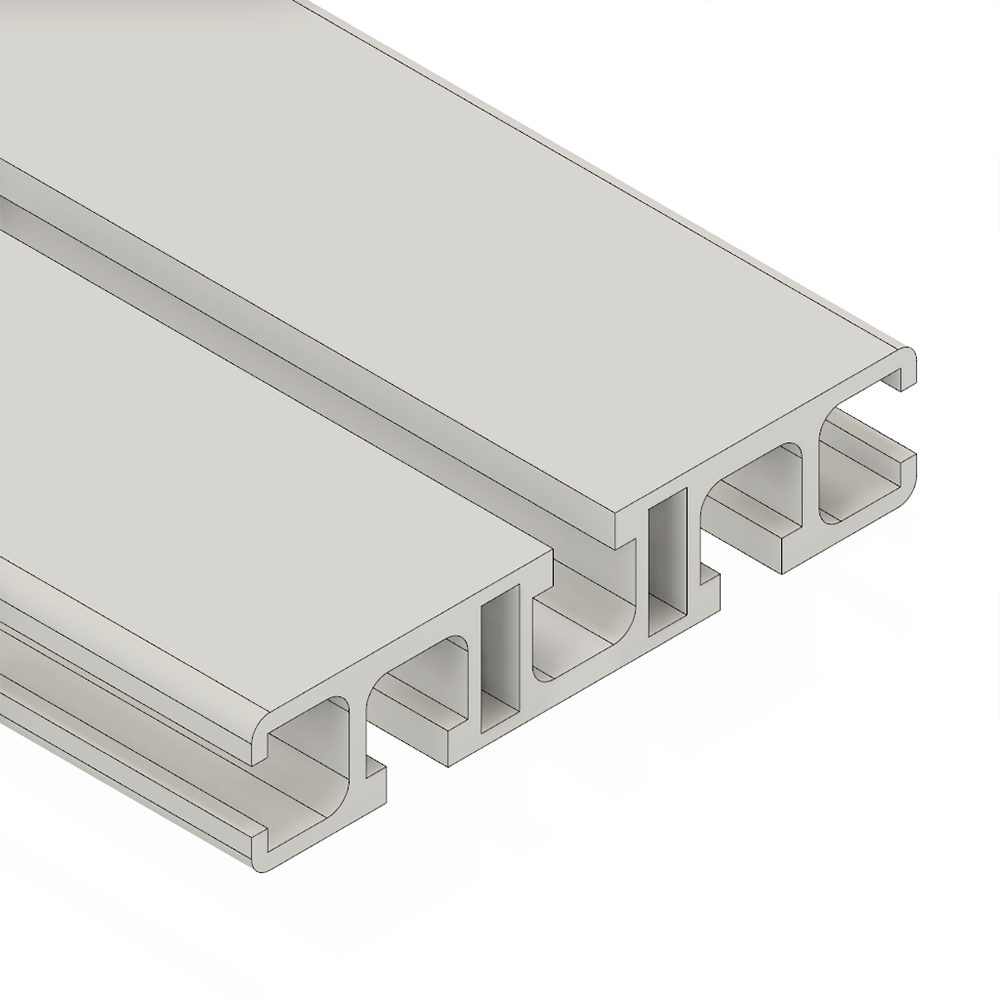

MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X18.5MM, CUT TO THE LENGTH OF 2000 MM
- $70.11 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 7.46
GENERAL SPECIFICATIONS:

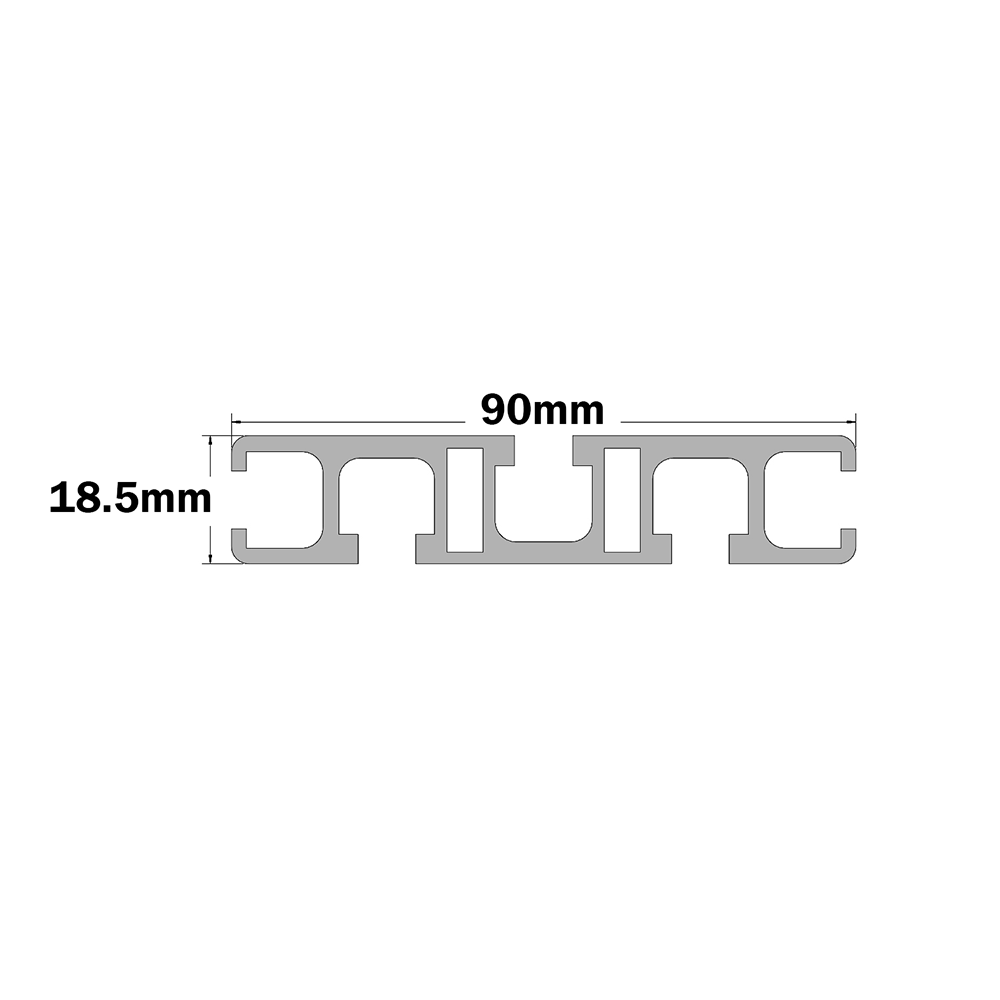

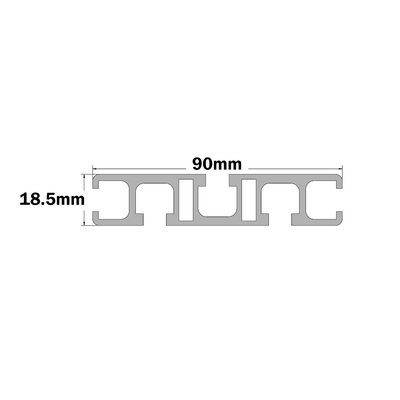

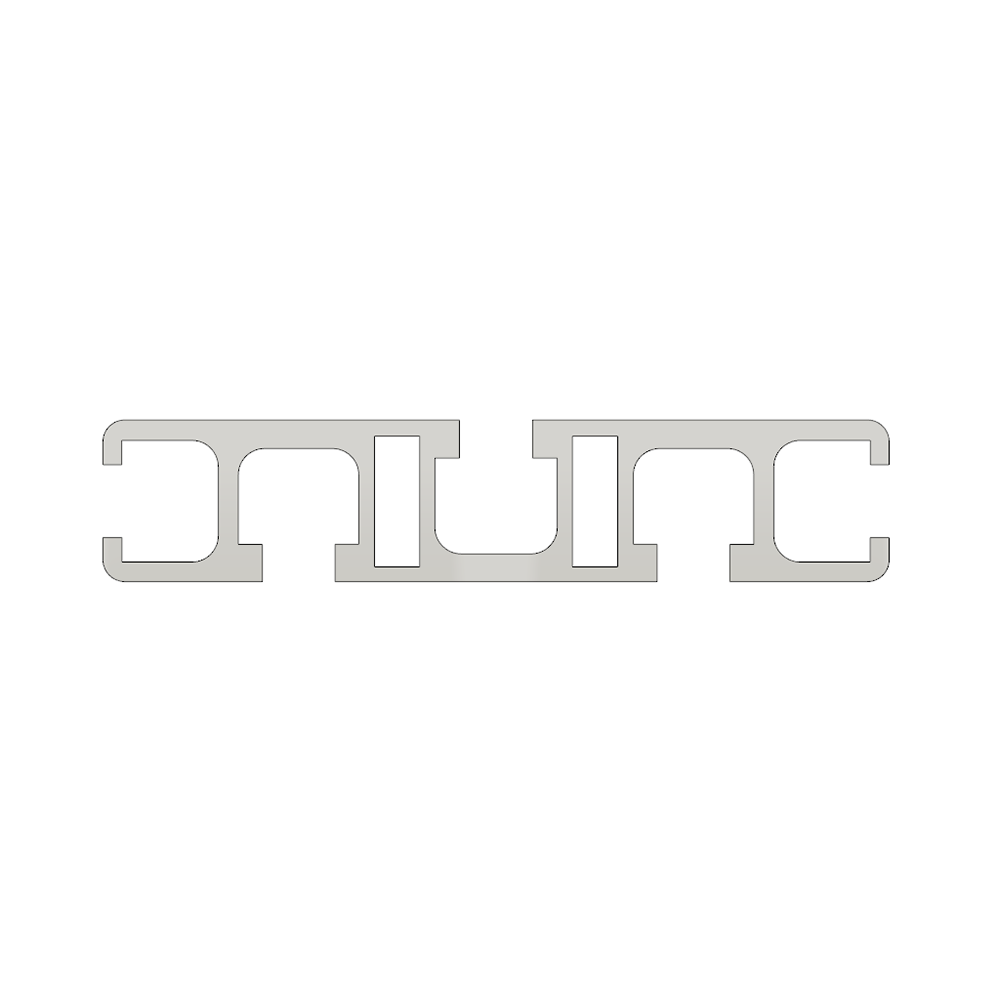

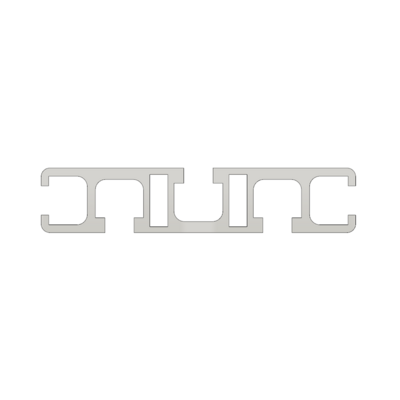

- 90MM X18.5MM PROFILE
- STANDARD 8MM T SLOT
- CLEAR COAT ANODIZATION
- MATERIAL: 6063 T6 ANODIZED ALUMINUM
TECHNICAL:
- IX = 2.96 CM4
- IY = 41.24 CM4
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-100-2 (LT GRAY), 60-100-1 (BLACK)
INFO:
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-100-2 (LT GRAY), 60-100-1 (BLACK)
- BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE
Click image to enlarge
Specifications
| CUT LENGTH | 2000 MM |
Item # 10-9018.5-0-2000MM
MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X18.5MM, CUT TO THE LENGTH OF 2000 MM
