Item # 10-9032-0-48IN
MODULAR SOLUTIONS EXTRUDED PROFILE

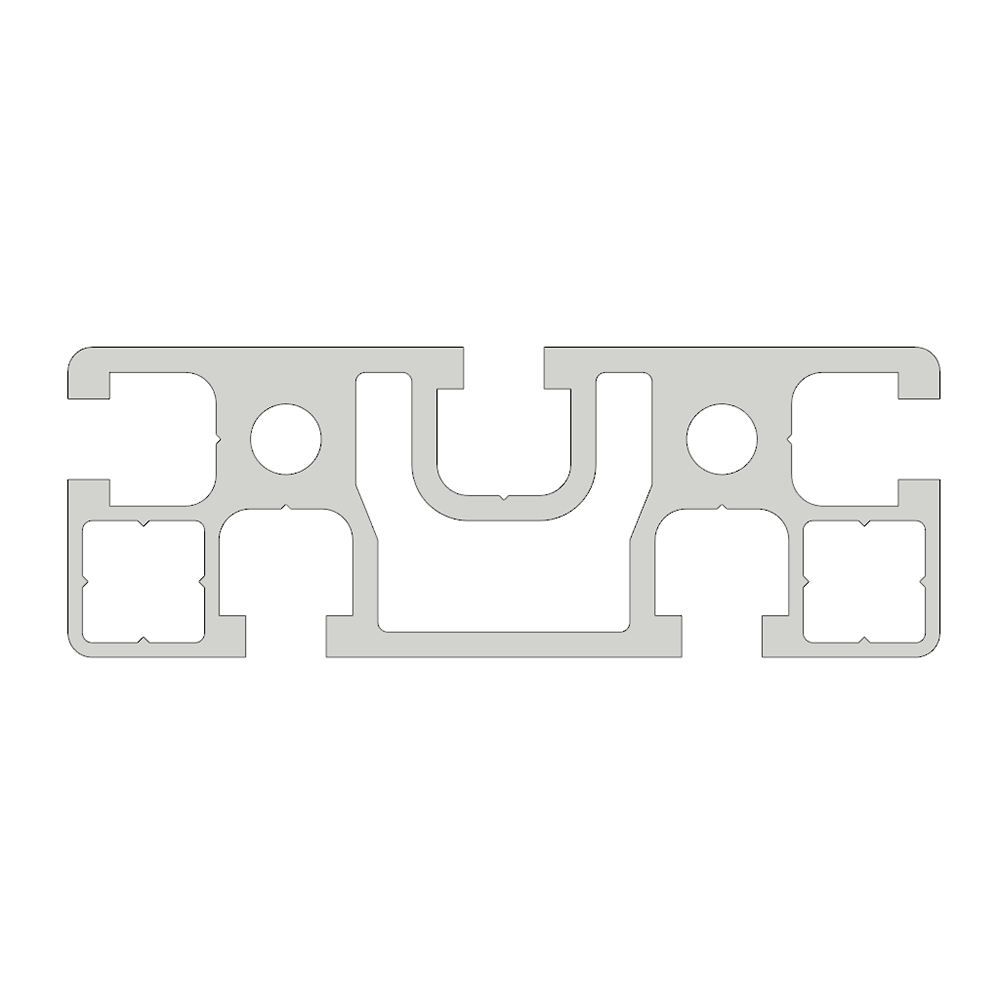

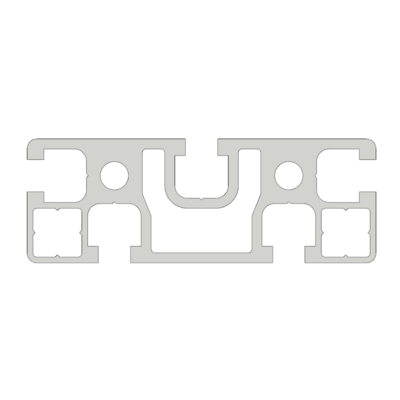

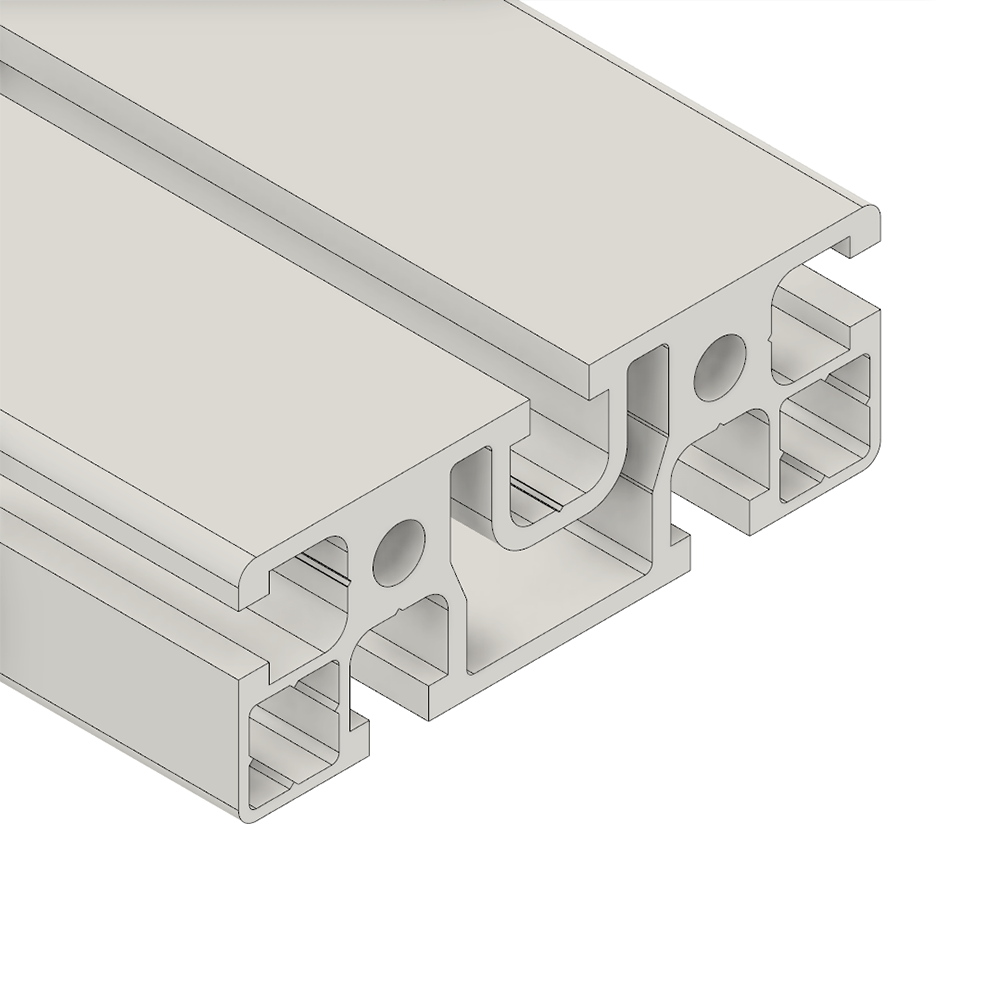

90MM X 32MM PROFILE, CUT TO THE LENGTH OF 48 INCH
- $57.56 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 7.79
GENERAL SPECIFICATIONS:

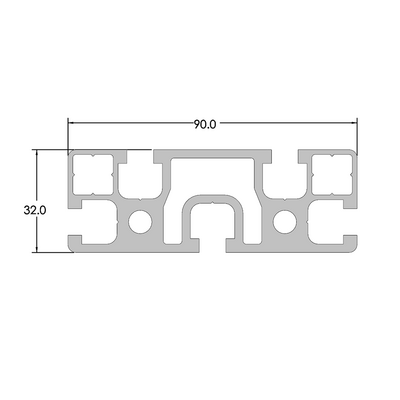

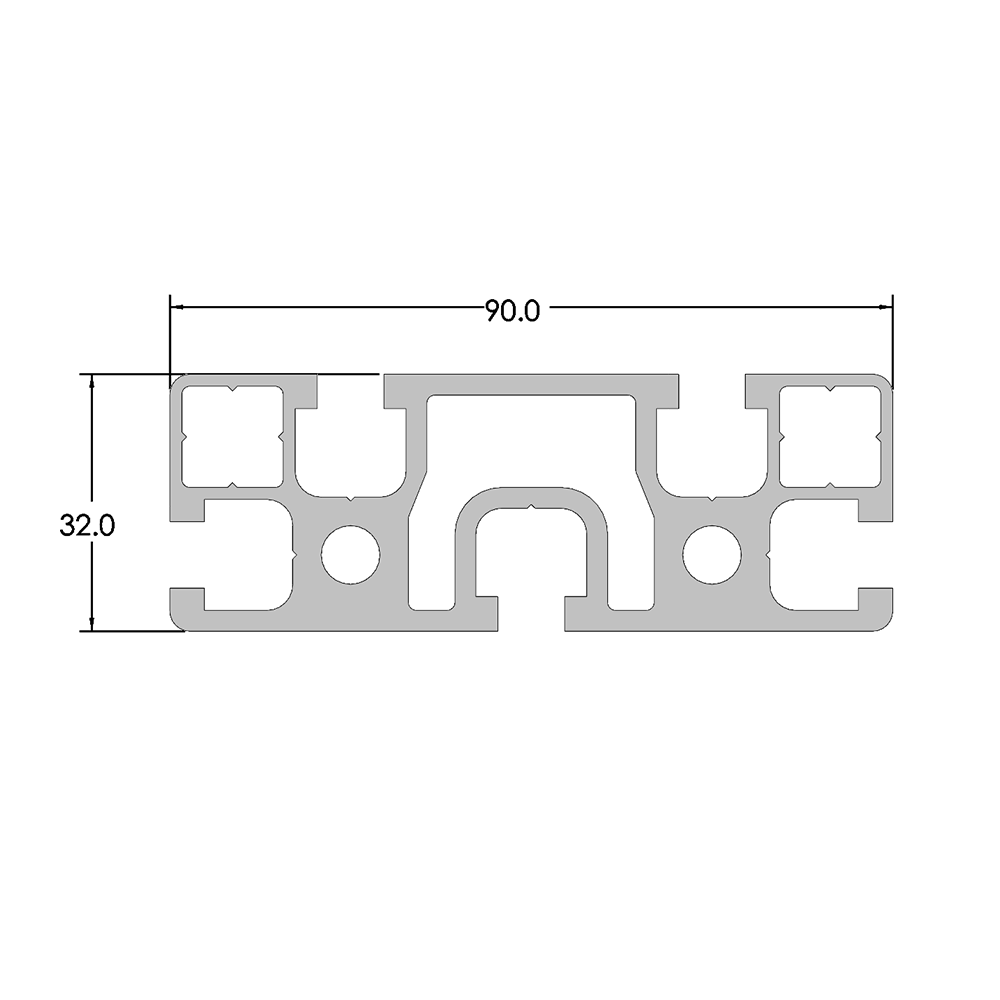

- 90MM X 32MM PROFILE
- STANDARD 8MM T SLOT
- CLEAR COAT ANODIZATION
- MATERIAL: 6063 T6 ANODIZED ALUMINUM
TECHNICAL:
- IX = XXX CM4
- IY = XXX CM4
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-210-2 (LT GRAY), 60-210-1 (BLACK)
INFO:
- FOR USE WITH 8MM SELF TAPPING SCREWS
- USE END CAP = 60-210-2 (LT GRAY), 60-210-1 (BLACK)
- BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE
Click image to enlarge
Specifications
| CUT LENGTH | 48 INCH |
Item # 10-9032-0-48IN
MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X 32MM PROFILE, CUT TO THE LENGTH OF 48 INCH
Documents
×
