Item # 10-9090-0-700MM

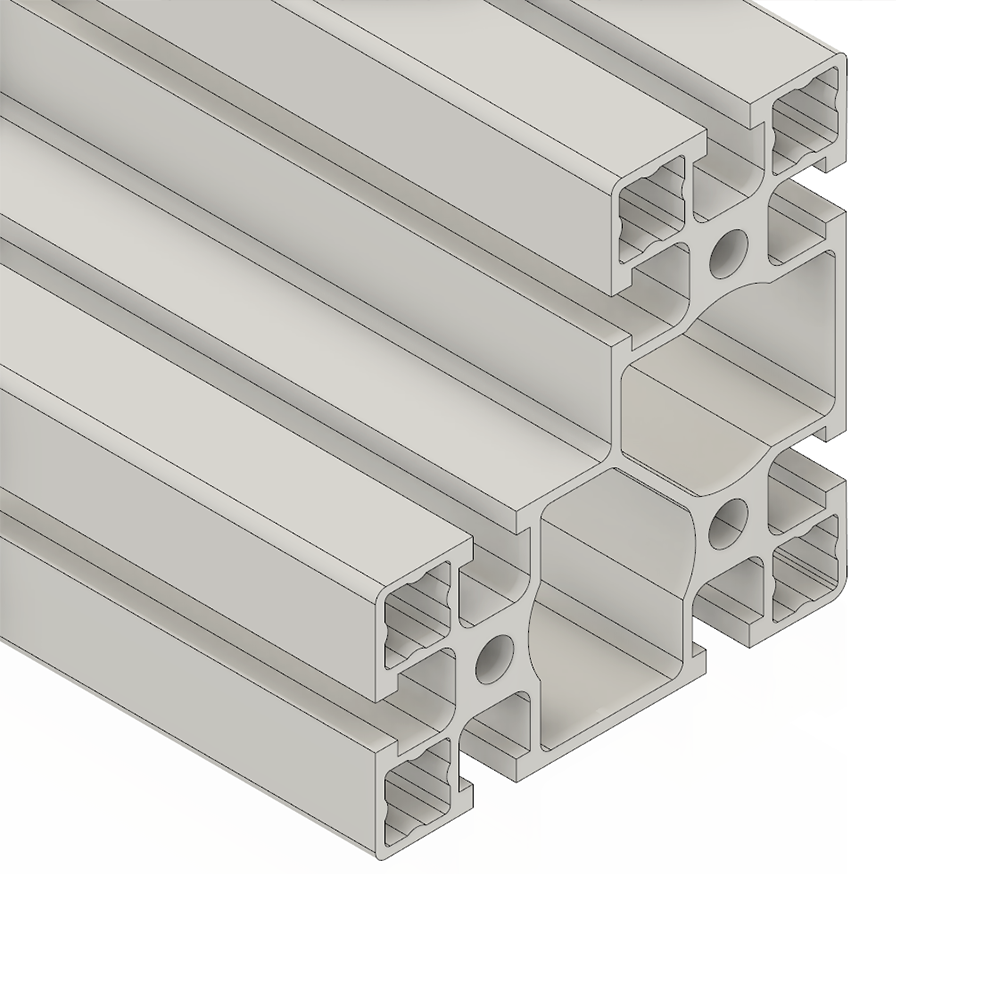

MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X 90MM, CUT TO THE LENGTH OF 700 MM

  • $37.49 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 5.83

MODULAR SOLUTIONS EXTRUDED PROFILE, 90MM X 90MM, CUT TO THE LENGTH OF 700 MM

GENERAL SPECIFICATIONS:

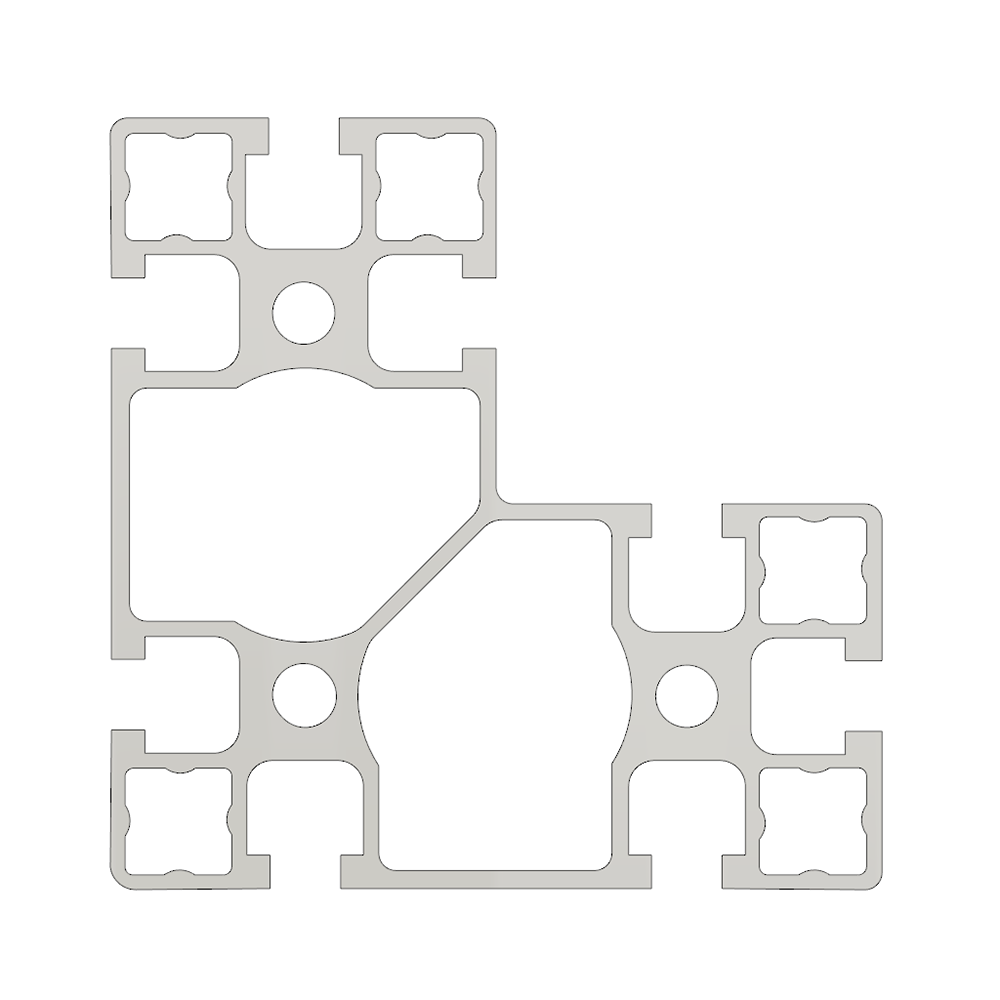

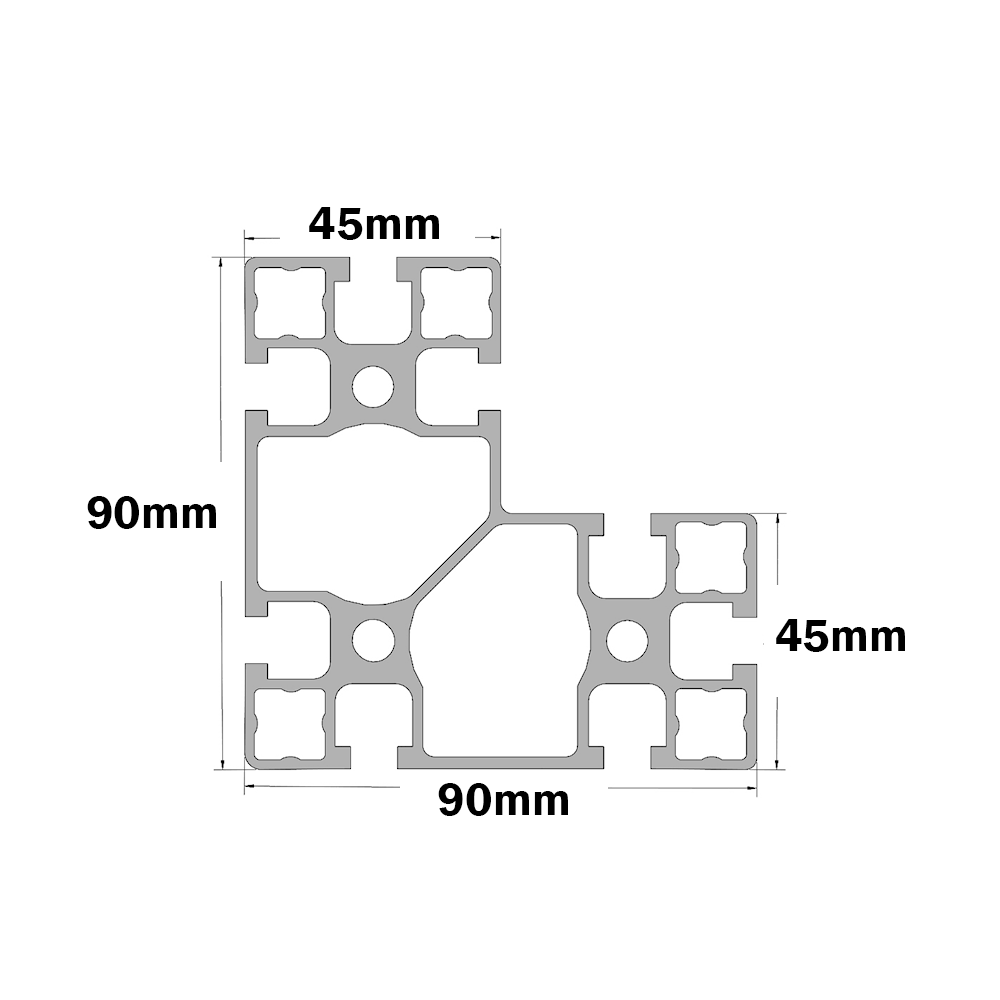

  • 90MM X 90MM PROFILE
  • STANDARD 8MM T SLOT
  • CLEAR COAT ANODIZATION
  • MATERIAL: 6063 T6 ANODIZED ALUMINUM

TECHNICAL:

  • IX = 131.72 CM4
  • IY = 131.72 CM4
  • FOR USE WITH 8MM SELF TAPPING SCREWS
  • END CAP 60-030-0, 60-030-1, 60-030-2, OR 60-030-5

INFO:

  • FOR USE WITH 8MM SELF TAPPING SCREWS
  • END CAP 60-030-0, 60-030-1, 60-030-2, OR 60-030-5
  • BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE

10-9090-0-700MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>90MM X 90MM, CUT TO THE LENGTH OF 700 MM
10-9090-0-700MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>90MM X 90MM, CUT TO THE LENGTH OF 700 MM
10-9090-0-700MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>90MM X 90MM, CUT TO THE LENGTH OF 700 MM
Click image to enlarge
10-9090-0-700MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>90MM X 90MM, CUT TO THE LENGTH OF 700 MM
10-9090-0-700MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>90MM X 90MM, CUT TO THE LENGTH OF 700 MM
10-9090-0-700MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>90MM X 90MM, CUT TO THE LENGTH OF 700 MM

Specifications

CUT LENGTH 700 MM

Item # 10-9090-0-700MM

MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X 90MM, CUT TO THE LENGTH OF 700 MM

  • $37.49 / EA
    • Log in to see if custom discounts apply

    Documents

    10-9090-0-700MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>90MM X 90MM, CUT TO THE LENGTH OF 700 MM
    10-9090-0-700MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>90MM X 90MM, CUT TO THE LENGTH OF 700 MM
    10-9090-0-700MM MODULAR SOLUTIONS EXTRUDED PROFILE<br>90MM X 90MM, CUT TO THE LENGTH OF 700 MM
