Item # 10-9550-0-12IN

MODULAR SOLUTIONS EXTRUDED PROFILE
95MM X 50MM PROFILE SLEAVE FOR 45MM X 90MM PROFILE, CUT TO THE LENGTH OF 12 INCH

  • $6.60 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 1.25

MODULAR SOLUTIONS EXTRUDED PROFILE, 95MM X 50MM PROFILE SLEAVE FOR 45MM X 90MM PROFILE, CUT TO THE LENGTH OF 12 INCH

GENERAL SPECIFICATIONS:

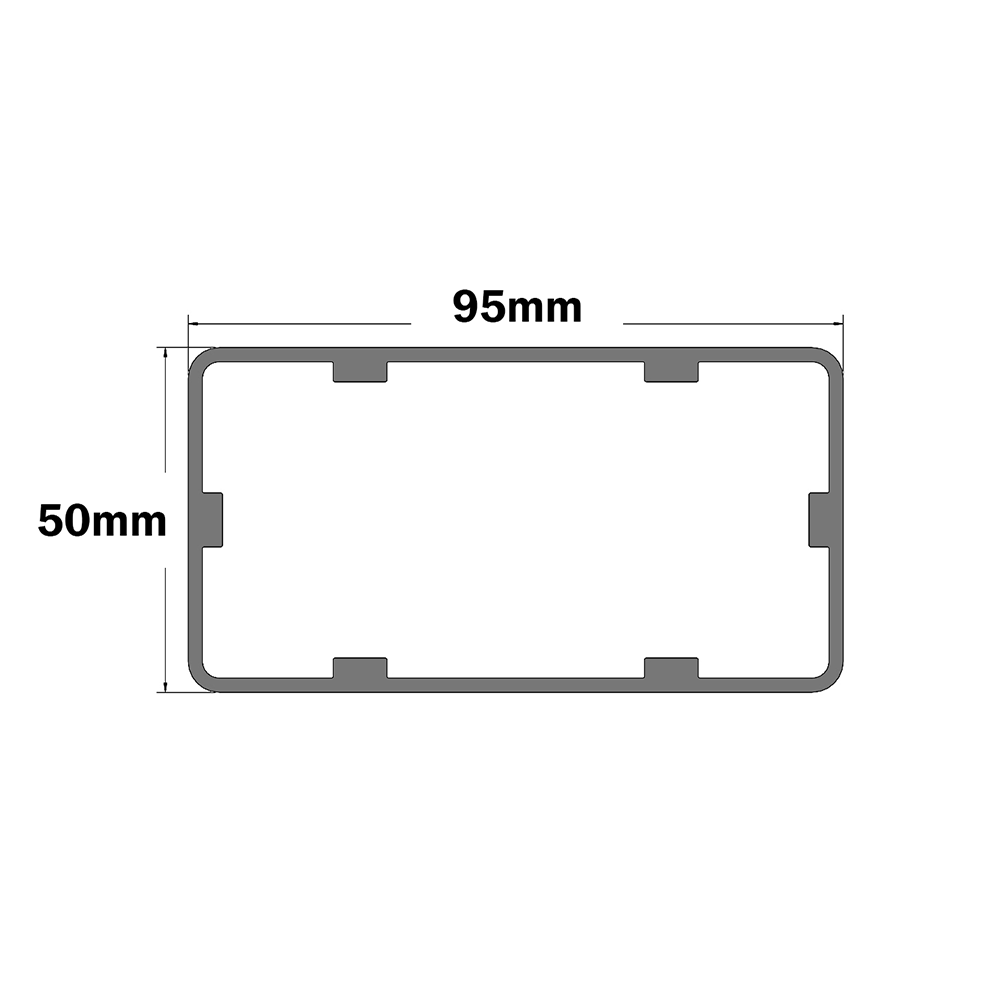

  • 95MM X 50MM PROFILE SLEAVE FOR 45X90 PROFILE
  • STANDARD 8MM T SLOT
  • CLEAR COAT ANODIZATION
  • MATERIAL: 6063 T6 ANODIZED ALUMINUM

TECHNICAL:

  • IX = 28.78 CM4
  • IY = 79.55 CM4

INFO:

  • WORKS AS A SLEAVE OVER 45 X 90 PROFILE

10-9550-0-12IN MODULAR SOLUTIONS EXTRUDED PROFILE<br>95MM X 50MM PROFILE SLEAVE FOR 45MM X 90MM PROFILE, CUT TO THE LENGTH OF 12 INCH
10-9550-0-12IN MODULAR SOLUTIONS EXTRUDED PROFILE<br>95MM X 50MM PROFILE SLEAVE FOR 45MM X 90MM PROFILE, CUT TO THE LENGTH OF 12 INCH
10-9550-0-12IN MODULAR SOLUTIONS EXTRUDED PROFILE<br>95MM X 50MM PROFILE SLEAVE FOR 45MM X 90MM PROFILE, CUT TO THE LENGTH OF 12 INCH
Click image to enlarge
10-9550-0-12IN MODULAR SOLUTIONS EXTRUDED PROFILE<br>95MM X 50MM PROFILE SLEAVE FOR 45MM X 90MM PROFILE, CUT TO THE LENGTH OF 12 INCH
10-9550-0-12IN MODULAR SOLUTIONS EXTRUDED PROFILE<br>95MM X 50MM PROFILE SLEAVE FOR 45MM X 90MM PROFILE, CUT TO THE LENGTH OF 12 INCH
10-9550-0-12IN MODULAR SOLUTIONS EXTRUDED PROFILE<br>95MM X 50MM PROFILE SLEAVE FOR 45MM X 90MM PROFILE, CUT TO THE LENGTH OF 12 INCH

Specifications

CUT LENGTH 12 INCH

Item # 10-9550-0-12IN

MODULAR SOLUTIONS EXTRUDED PROFILE
95MM X 50MM PROFILE SLEAVE FOR 45MM X 90MM PROFILE, CUT TO THE LENGTH OF 12 INCH
