Item # 1100042

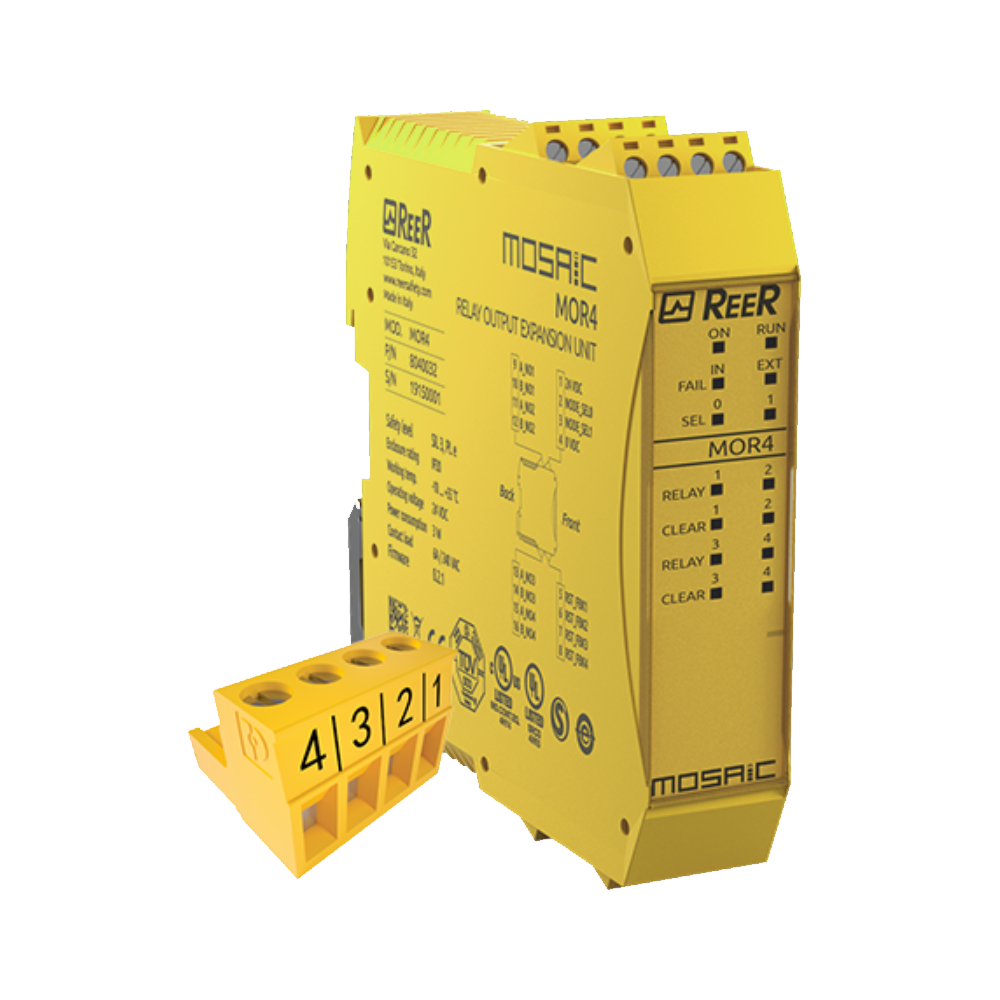

REER RELAY EXPANSION UNIT, 4 SAFETY RELAY OUTPUTS, CONFIGURABLE OUTPUTS, SCREW TERMINAL BLOCKS(MOR4)

  • $338.15 / EA
  • Manufacturer: REER
  • UM: EA
  • Weight: 0.50
PROVIDES 4 CONFIGURABLE GUIDED CONTACT SAFETY RELAYS.
IT ALLOWS TO SELECT THE SAFETY CATEGORY VIA THE MSD SOFTWARE:.
SAFETY CAT. 1: 4 INDEPENDENT SINGLE CHANNEL OUTPUTS.
SAFETY CAT. 2: 4 INDEPENDENT SINGLE CHANNEL OUTPUTS WITH OTE (OUTPUT TEST EQUIPMENT).
SAFETY CAT. 4: 2 INDEPENDENT DOUBLE CHANNELS OUTPUTS

SAFETY CERTIFICATIONS: CE, TÜV, UL

REER LIGHT CURTAIN MOSAIC

SPECIFICATIONS
WEIGHT:
0.24 KG
HEIGHT:
36 MM
WIDTH:
128 MM
DEPTH:
118 MM

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

NOT FINDING WHAT YOU NEED?
CONTACT US

1100042 REER RELAY EXPANSION UNIT, 4 SAFETY RELAY OUTPUTS, CONFIGURABLE OUTPUTS, SCREW TERMINAL BLOCKS(MOR4)
1100042 REER RELAY EXPANSION UNIT, 4 SAFETY RELAY OUTPUTS, CONFIGURABLE OUTPUTS, SCREW TERMINAL BLOCKS(MOR4)
Click image to enlarge
1100042 REER RELAY EXPANSION UNIT, 4 SAFETY RELAY OUTPUTS, CONFIGURABLE OUTPUTS, SCREW TERMINAL BLOCKS(MOR4)
1100042 REER RELAY EXPANSION UNIT, 4 SAFETY RELAY OUTPUTS, CONFIGURABLE OUTPUTS, SCREW TERMINAL BLOCKS(MOR4)

Specifications

UNIT TYPE SAFETY RELAY UNITS
CONTROL TYPE MOR - CONFIGURABLE

Item # 1100042

REER RELAY EXPANSION UNIT, 4 SAFETY RELAY OUTPUTS, CONFIGURABLE OUTPUTS, SCREW TERMINAL BLOCKS(MOR4)

  • $338.15 / EA
    • Log in to see if custom discounts apply

    Documents

    1100042 REER RELAY EXPANSION UNIT, 4 SAFETY RELAY OUTPUTS, CONFIGURABLE OUTPUTS, SCREW TERMINAL BLOCKS(MOR4)
    1100042 REER RELAY EXPANSION UNIT, 4 SAFETY RELAY OUTPUTS, CONFIGURABLE OUTPUTS, SCREW TERMINAL BLOCKS(MOR4)
