Item # 1100174

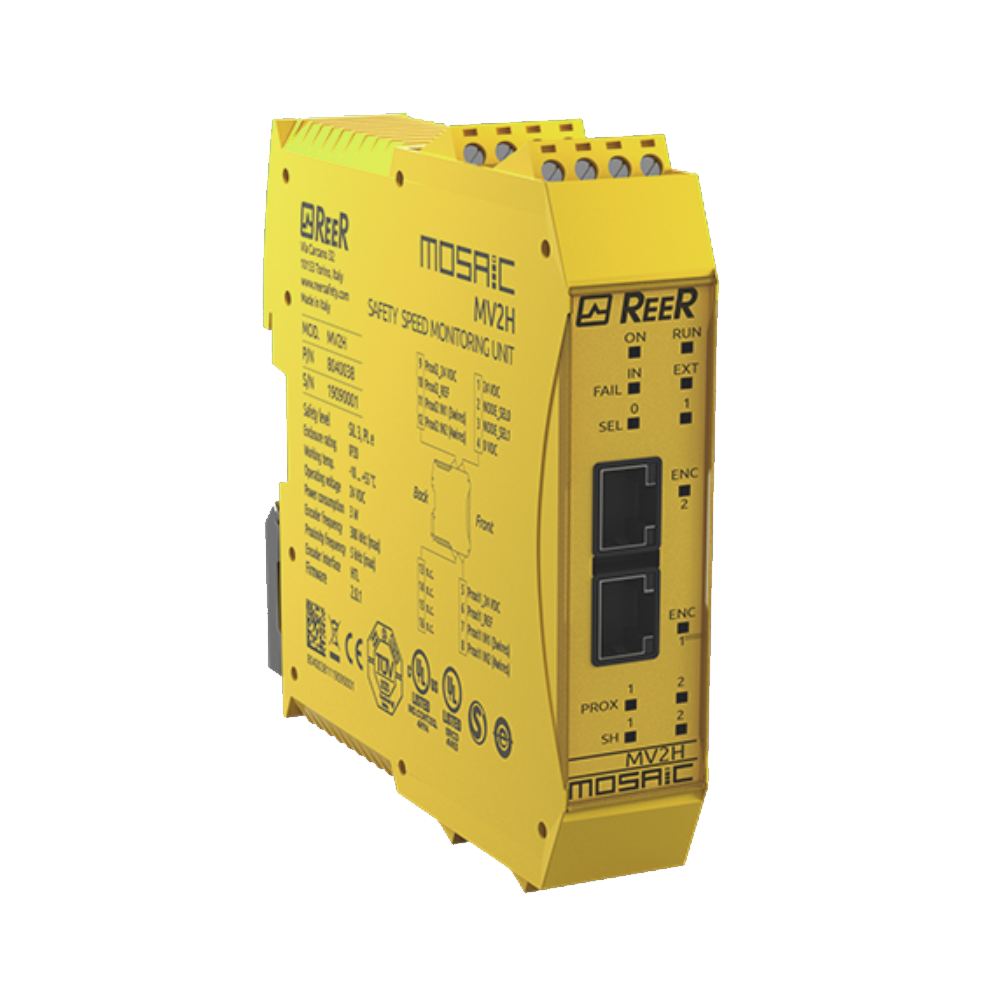

REER SAFETY SPEED MONITORING EXPANSION UNIT, 2 INPUTS, HTL ENCODERS, CLAMP TERMINAL BLOCKS(MV2HC)
- $491.86 / EA
- Manufacturer: REER
- UM: EA
- Weight: 0.40
SAFETY SPEED MONITORING (UP TO PL E) FOR: ZERO SPEED CONTROL, MAX. SPEED, SPEED RANGE AND DIRECTION CONTROL.
RJ-45 CONNECTORS FOR ENCODERS AND TERMINAL BLOCKS FOR PROXIMITY SWITCHES.
MAX. INPUT FREQUENCY FOR ENCODERS: UP TO 500 KHZ (300 KHZ FOR HTL ENCODER).
MAX. INPUT FREQUENCY FOR PROXIMITY SWITCHES: UP TO 5 KHZ.
INCLUDES TWO CONFIGURABLE LOGICAL OUTPUTS AND IS THEREFORE ABLE TO CONTROL UP TO TWO INDEPENDENT AXIS (CONFIGURABLE VIA MSD)
RJ-45 CONNECTORS FOR ENCODERS AND TERMINAL BLOCKS FOR PROXIMITY SWITCHES.
MAX. INPUT FREQUENCY FOR ENCODERS: UP TO 500 KHZ (300 KHZ FOR HTL ENCODER).
MAX. INPUT FREQUENCY FOR PROXIMITY SWITCHES: UP TO 5 KHZ.
INCLUDES TWO CONFIGURABLE LOGICAL OUTPUTS AND IS THEREFORE ABLE TO CONTROL UP TO TWO INDEPENDENT AXIS (CONFIGURABLE VIA MSD)
SAFETY CERTIFICATIONS: CE, TÜV, UL
REER LIGHT CURTAIN MOSAIC
| SPECIFICATIONS | |
|---|---|
| WEIGHT: | |
| HEIGHT: | WIDTH: |
| DEPTH: | |
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
NOT FINDING WHAT YOU NEED?
CONTACT US
Click image to enlarge
Specifications
| UNIT TYPE | EXPANSION UNITS |
| CONTROL TYPE | MV - SPEED MONITORING |
Item # 1100174
REER SAFETY SPEED MONITORING EXPANSION UNIT, 2 INPUTS, HTL ENCODERS, CLAMP TERMINAL BLOCKS(MV2HC)
Documents
×
