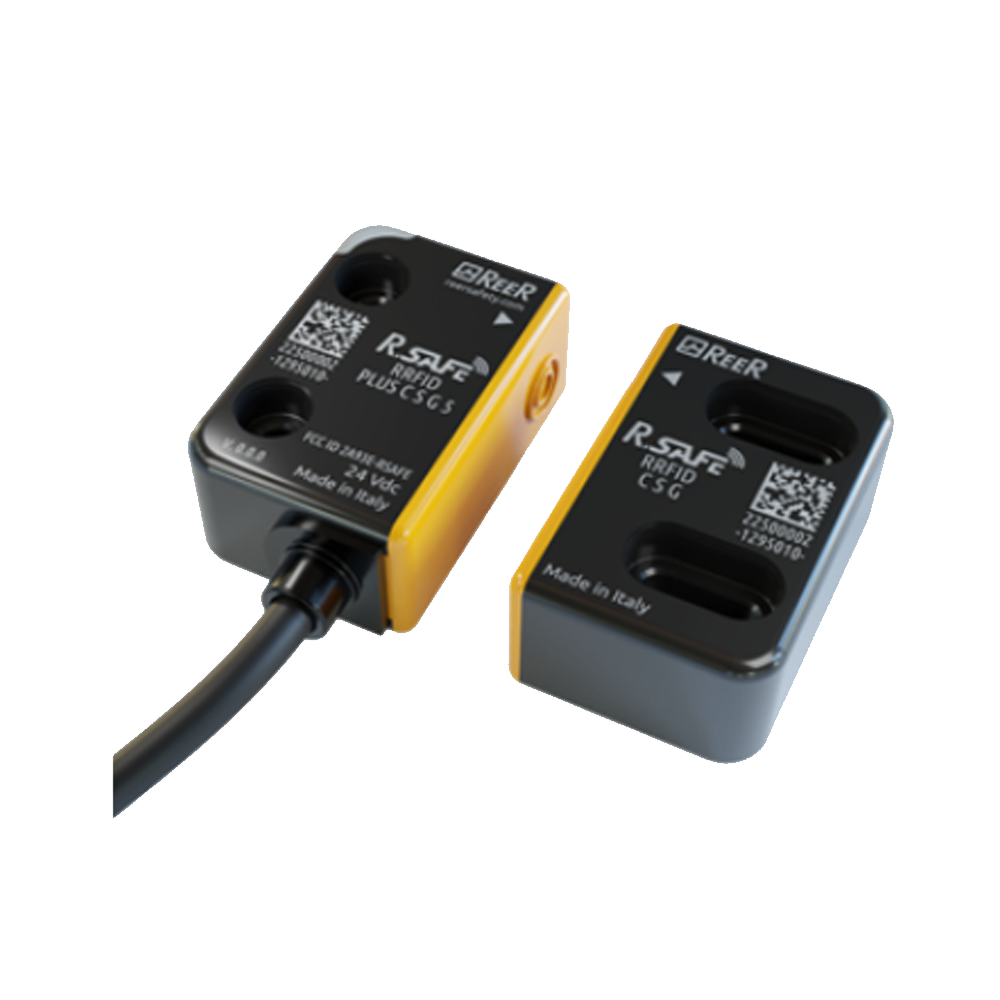

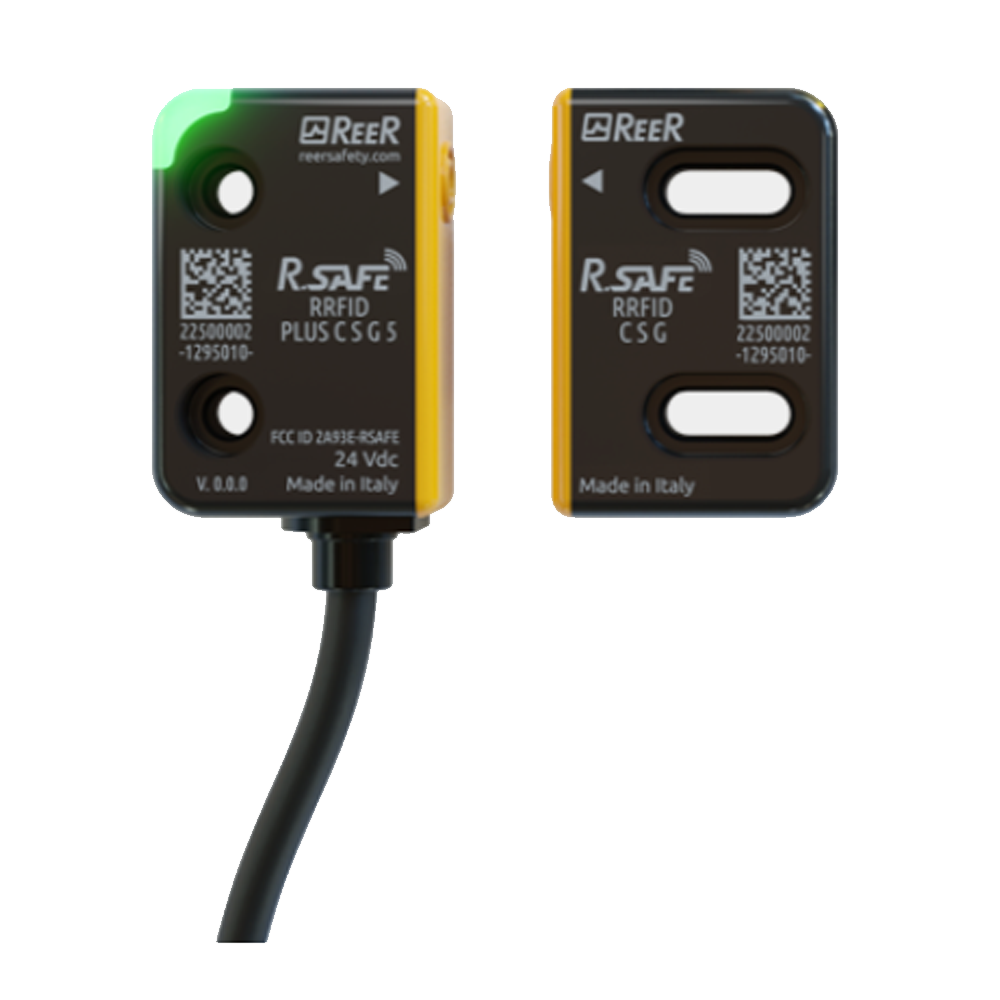

THE REER RFID SERIES SAFETY SENSORS ARE CONTACTLESS SENSORS FOR POSITION CONTROL OF MOVABLE GUARDS. THIS TYPE OF SENSOR IS USED TO MONITOR THE POSITION OF SAFETY DEVICES THAT ARE SLIDING, HINGED, OR REMOVABLE.

THE RFID SERIES ARE INDIVIDUALLY CODED TO ALLOW THE APPROPRIATE TAMPERING PROTECTION IN ALL APPLICATIONS. THIS SERIES OF SENSORS INCLUDES THREE CODING OPTIONS TO CHOOSE FROM.

• FIRST, THE GENERIC CODING OPTION. THIS CODING TYPE HAS AN ACTUATOR THAT IS FREE AND NOT SPECIFICALLY ASSIGNED TO A SINGLE SENSOR.
• NEXT, THE INDIVIDUAL CODING OPTION HAS AN ACTUATOR THAT IS PROGRAMMED VIA TEACH-IN AND PERMANENTLY ASSIGNED TO A SENSOR DURING SET-UP. THIS PROCESS CAN BE REPEATED IF NECESSARY.
• FINALLY, THE RFID SERIES HAS A UNIQUE CODING OPTION. THIS COMBO HAS AN ACTUATOR THAT IS PERMANENTLY ASSIGNED TO THE SENSOR DURING MANUFACTURING, IT CANNOT BE REPLACED WITH ANOTHER ACTUATOR.

ALL THREE VARIETIES HAVE A SAFETY LEVEL OF TYPE 4 - PL E - SIL3 - SILCL3 - CATEGORY 4, WITH CE, TÜV, UL APPROVALS. THE IP RATING FOR THESE SENSORS IS IP65, IP67, AND IP69K.
