THE JANUS SERIES OF SAFETY LIGHT CURTAINS HAVE INTEGRATED MUTING FUNCTIONS. THIS SERIES IS IDEAL FOR THE PROTECTION OF A VAST NUMBER OF HIGH-RISK INDUSTRIAL APPLICATIONS THAT REQUIRE AN ADDED LEVEL OF SAFETY. THE JANUS SERIES GAURANTEES INDEPENDANCE OF THE LIGHT GRID FROM THE CONTROL CIRCUITS OF THE SYSTEM, WHICH IS OFTEN DISTANT FROM THE PROTECTED GATE. MODEL OPTIONS ALSO INCLUDE SEPERATION OF THE LIGHT GRID AND MUTING SENSORS, ALL CONTROLLED FROM THE MAIN CONNECTOR.

ABOUT THIS MODEL:

SAFETY LIGHT CURTAIN: TYPE 4, SIL3, SILCL3, PL E, CAT. 4.
CROSS SECTION: 50 X 60 MM.
HARDWARE CONFIGURATION: NO PROGRAMMING NECESSARY, EASY TO INSTALL AND REPLACE, CONFIGURATION THROUGH MAIN CONNECTORS.
BUILT-IN MUTING SENSORS WITH 2 CROSSED BEAMS: PRE-WIRED, PRE-ALIGNED, ADJUSTABLE IN HEIGHT AND ANGLE.

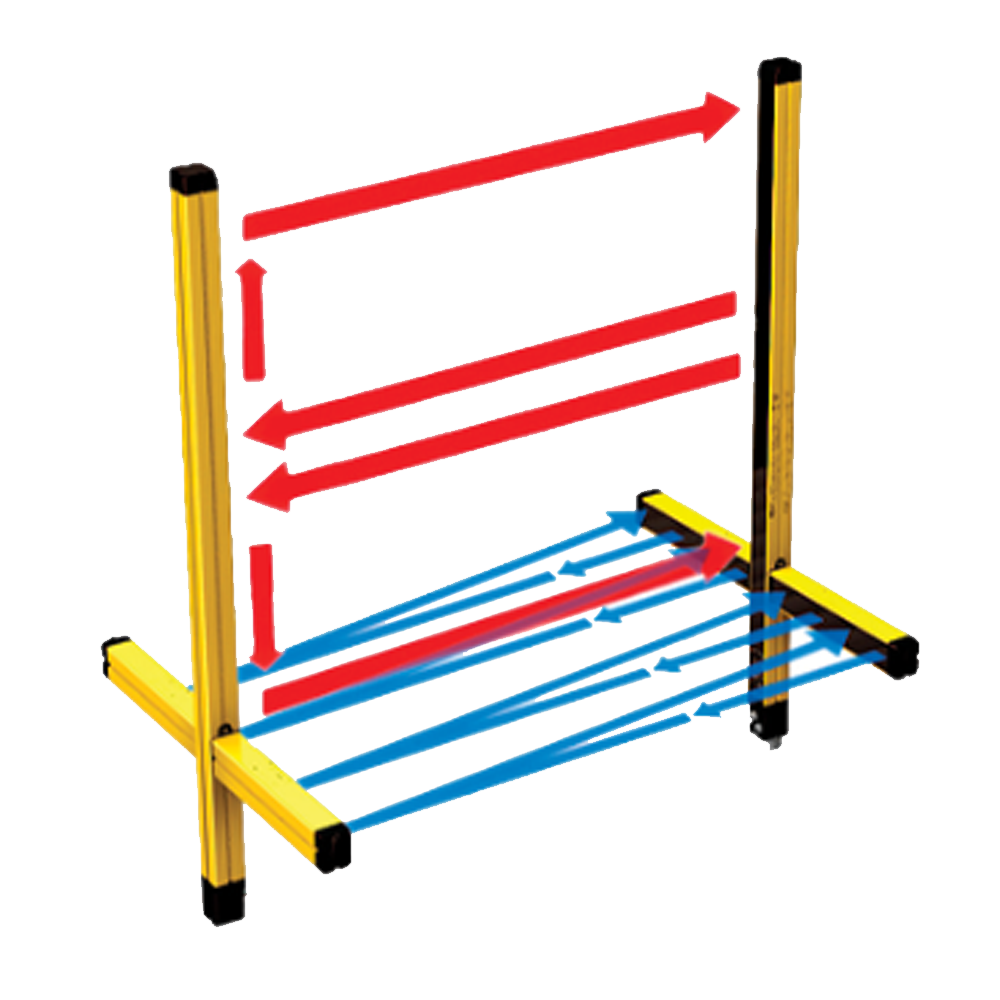

TWO-WAY ACCESS CONTROL SYSTEM WITH ENTRY-EXIT T-MUTING LOGIC.
MUTING SENSORS OPTIMISED FOR THE CORRECT AND CONSISTENT DETECTION OF TRANSPARENT MATERIALS (I.E. GLASS).
M12 CONNECTORS FOR EXTERNAL MUTING SENSORS, WITH OPERATING LOGIC WITH 2 OR 4 SENSORS.
UNSHIELDED CABLES UP TO 100 M CAN BE USED TO CONNECT THE SAFETY LIGHT CURTAIN.
WHAT'S IN THE BOX: ACTIVE TX/RX ELEMENT, PASSIVE RETRO-REFLECTOR ELEMENT AND STANDARD FASTENING BRACKETS

SAFETY CERTIFICATIONS: CE, TÜV, UL

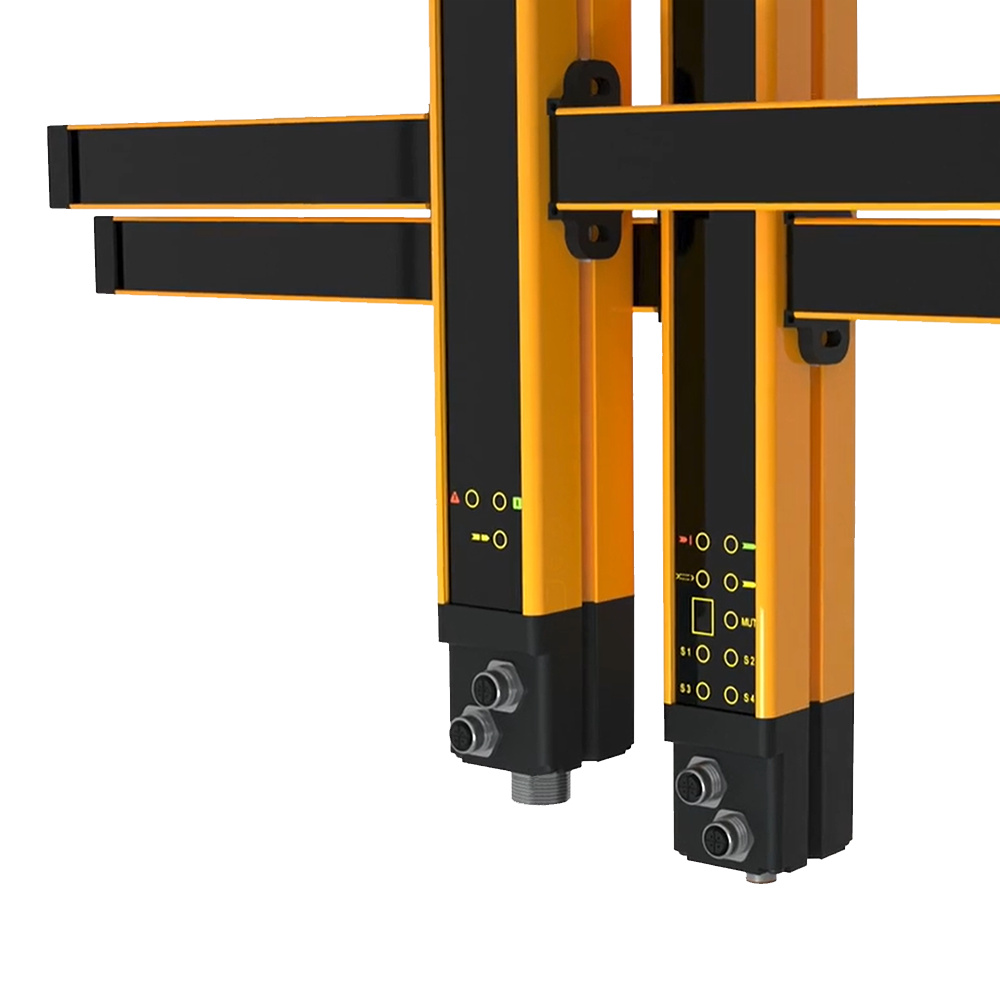

JANUS ACCESS CONTROL SAFETY LIGHT GRID WITH INTEGRATED MUTING FUNCTION

SPECIFICATIONS
DETECTION LENGTH:	510 mm
RESOLUTION:
HEIGHT:	1280 mm
WIDTH:	180 mm
DEPTH:	160 mm
WEIGHT:	8.54 Kg
DETECTION TYPE:	ACCESS CONTROL
ADD ONS:	T-LOGIC (ENTRY-EXIT) TRANSCEIVER (TRX) EXTERNAL DEVICE MONITORING
RESTART MODE:	AUTOMATIC/MANUAL
