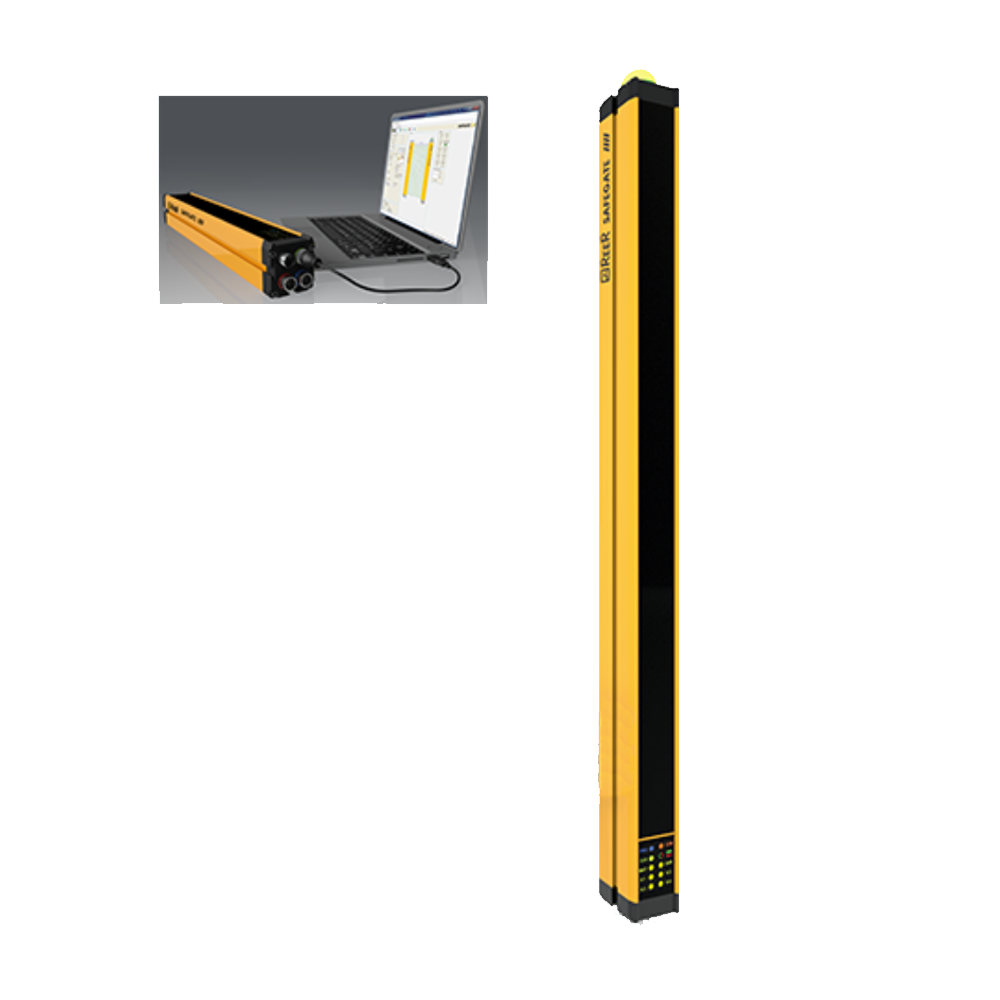

THE SAFEGATE SERIES OF SAFETY LIGHT CURTAINS HAVE INTEGRATED MUTING FUNCTIONS. THIS SERIES IS IDEAL FOR THE PROTECTION OF A VAST NUMBER OF HIGH-RISK INDUSTRIAL APPLICATIONS THAT REQUIRE AN ADDED LEVEL OF MUTING SAFETY. THIS SERIES GUARANTEES THE INTEGRATION OF MUTING SENSORS THAT CAN BE CONNECTED DIRECTLY TO THE SAFETY LIGHT CURTAIN. THE PROGRAMMABLE MODELS(SMPO) HAVE A FUNCTIONAL PARAMETER CONFIGURATION THAT CAN BE MANAGED VIA THE SAFEGATE CONFIGURATION SOFTWARE(SCS)

ABOUT THIS MODEL:

SAFETY LIGHT CURTAIN: TYPE 4, SIL3, SILCL3, PL E, CAT. 4.
CROSS SECTION: 50 X 55 MM.
HARDWARE CONFIGURATION: NO PROGRAMMING NECESSARY, ALLOWS CONFIGURATION OF MUTING LOGICS AND FUNCTIONAL PARAMETERS.
SOFTWARE CONFIGURATION: ALLOWS CONFIGURATION OF MUTING LOGICS, FUNCTIONAL PARAMENTS AND ADDITIONAL FUNCTIONS (I.E. FILTERS, DELAYS AND PARTIAL MUTING).

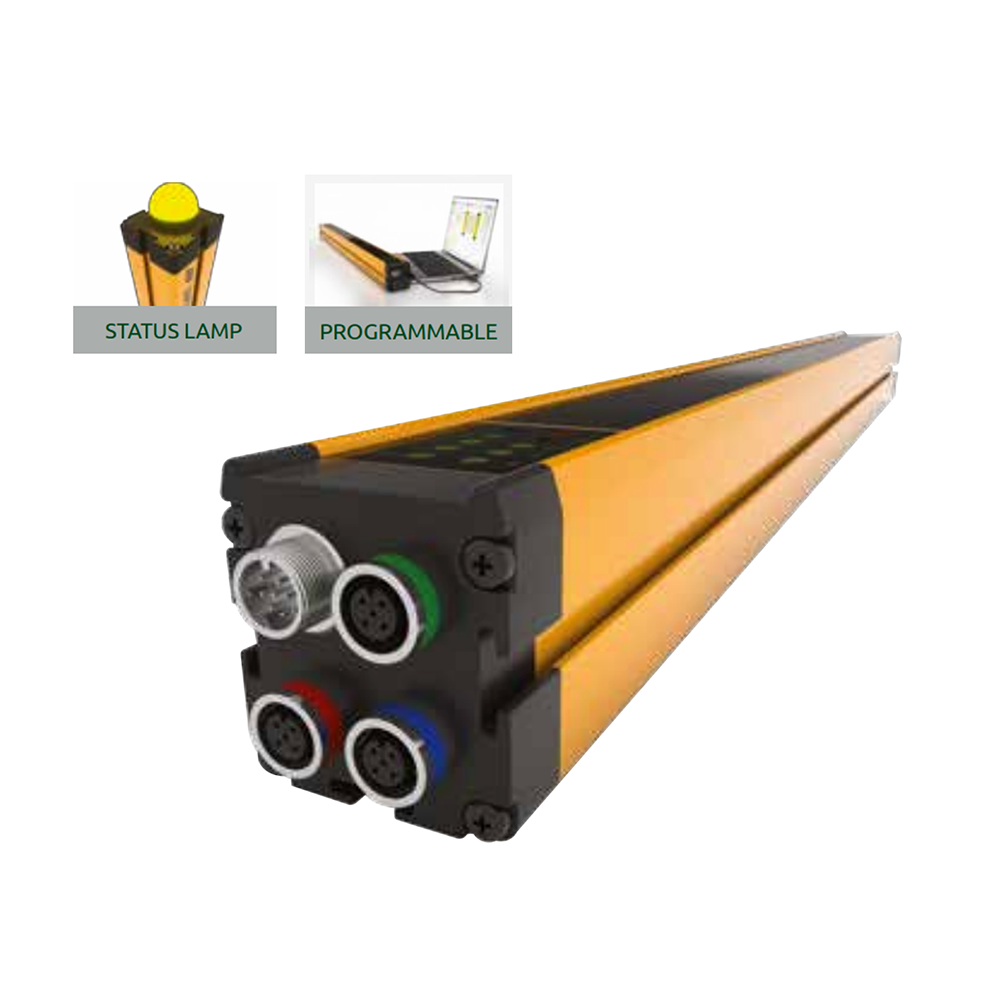

CONNECTION AND CONFIGURATION THROUGH M12 CONNECTORS.
3 PRE-CONFIGURED MUTING LOGICS: EXIT-ONLY (PARALLEL OR CROSSED BEAMS), ENTRY-EXIT (PARALLEL BEAMS), ENTRY-EXIT (CROSSED BEAMS) .
UNSHIELDED CABLES UP TO 100 M CAN BE USED TO CONNECT THE SAFETY LIGHT CURTAIN.
WHAT'S IN THE BOX: EMITTER, RECEIVER AND STANDARD FASTENING BRACKETS

SAFETY CERTIFICATIONS: CE, TÜV, UL

SAFEGARE SAFETY LIGHT CURTAIN

SPECIFICATIONS
DETECTION LENGTH:	31 mm
RESOLUTION:	30 mm
HEIGHT:	490 mm
WIDTH:	200 mm
DEPTH:	145 mm
WEIGHT:	2.96 Kg
DETECTION TYPE:	HAND
ADD ONS:	INTEGRATED MUTING FUNCTION EXTERNAL DEVICE MONITORING INTEGRATED MUTING LAMP PROGRAMMABLE S
RESTART MODE:	AUTOMATIC/MANUAL
