Item # 33-45453S-1

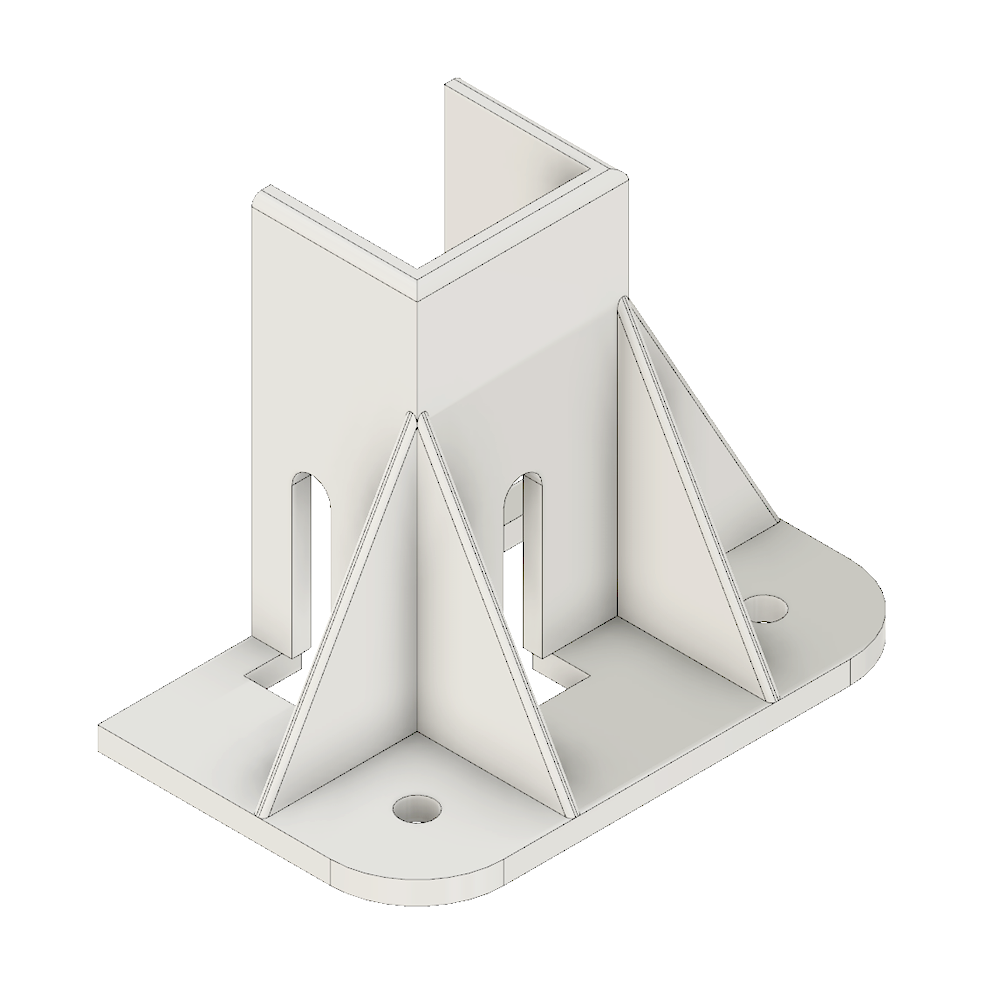

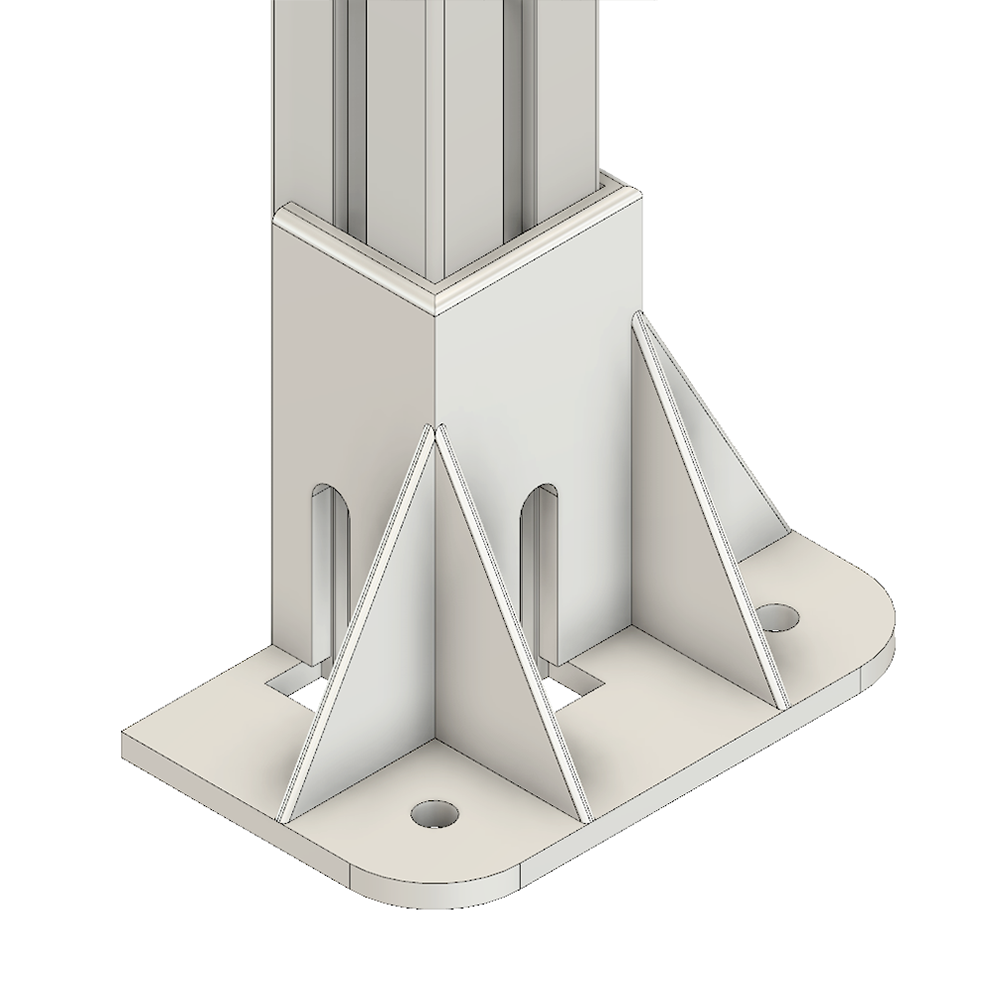

MODULAR SOLUTIONS FOOT
45MM X 45MM (3) SIDED FOOT W/11MM FLOOR ANCHOR HOLES
- $22.00 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 0.74
GENERAL SPECIFICATIONS:
- MOUNTING FOOT 3 SIDED FOR 45 X 45
- PARTICALLY ENCLOSED
- METALIC IN COLOR
- MATERIAL: CAST ALUMINUM
TECHNICAL:
- WITH 11MM FLOOR ANCHOR HOLES
- UP TO 40MM OF HEIGHT OF ADJUSTMENT
- WORKS WITH 3/8 IN X 3 IN WEDGE ANCHOR 24-383-0
- WORKS WELL WITH PROFILES 10-4545
INFO:
- WORKS WITH 3/8 IN X 3 IN WEDGE ANCHOR 24-383-0
- WORKS WELL WITH PROFILES 10-4545
Click image to enlarge
Specifications
| PROFILE USED WITH | 45 X 45 |
| NUMBER OF SIDES | 3 MOUNTING SIDES |
| MOUNTING HARDWARE | WITH HARDWARE |
Item # 33-45453S-1
MODULAR SOLUTIONS FOOT
45MM X 45MM (3) SIDED FOOT W/11MM FLOOR ANCHOR HOLES
