Item # 33-45453S-1SS
MODULAR SOLUTIONS FLOOR ANCHORING FOOT, THREE SIDED FOR 45MM X 45MM WITH STAINLESS STEEL HARDWARE
- $22.96 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 0.74
MOUNTING FOOT 3 SIDED FOR 45 X 45 W/ SS HARDWARE
PARTICALLY ENCLOSED
COLOR: METALLIC
MATERIAL: CAST ALUMINUM

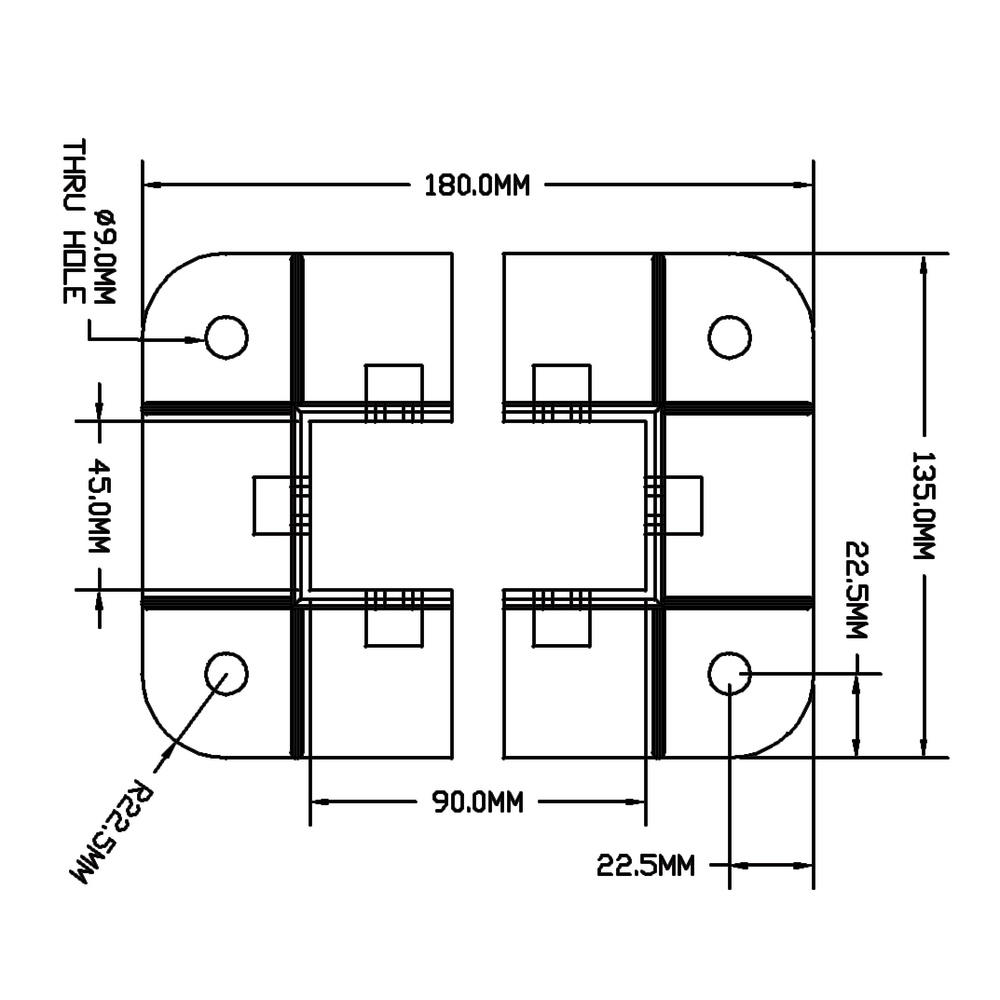

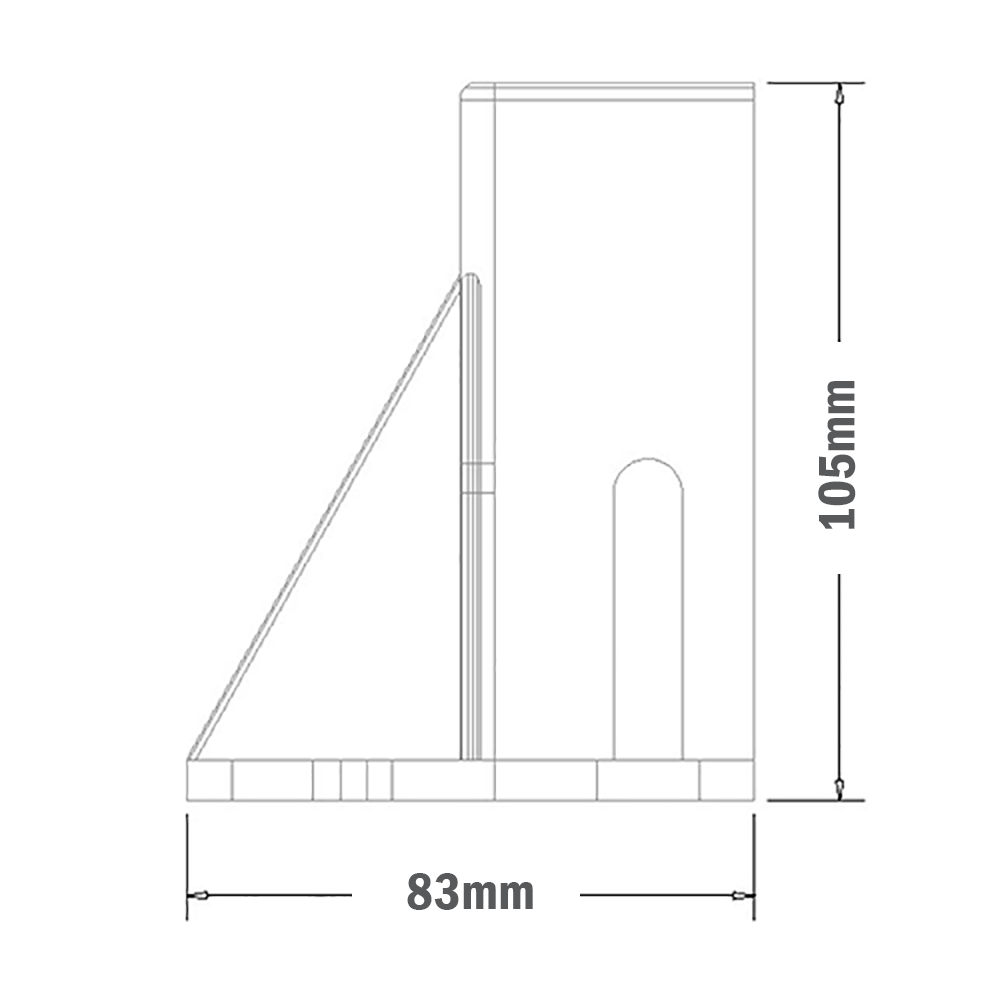

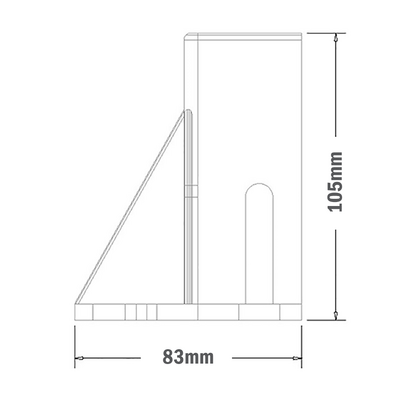

105MM TALL-135MM X 83MM WIDE-11MM ANCHOR HOLES
UP TO 40MM OF HEIGHT OF ADJUSTMENT

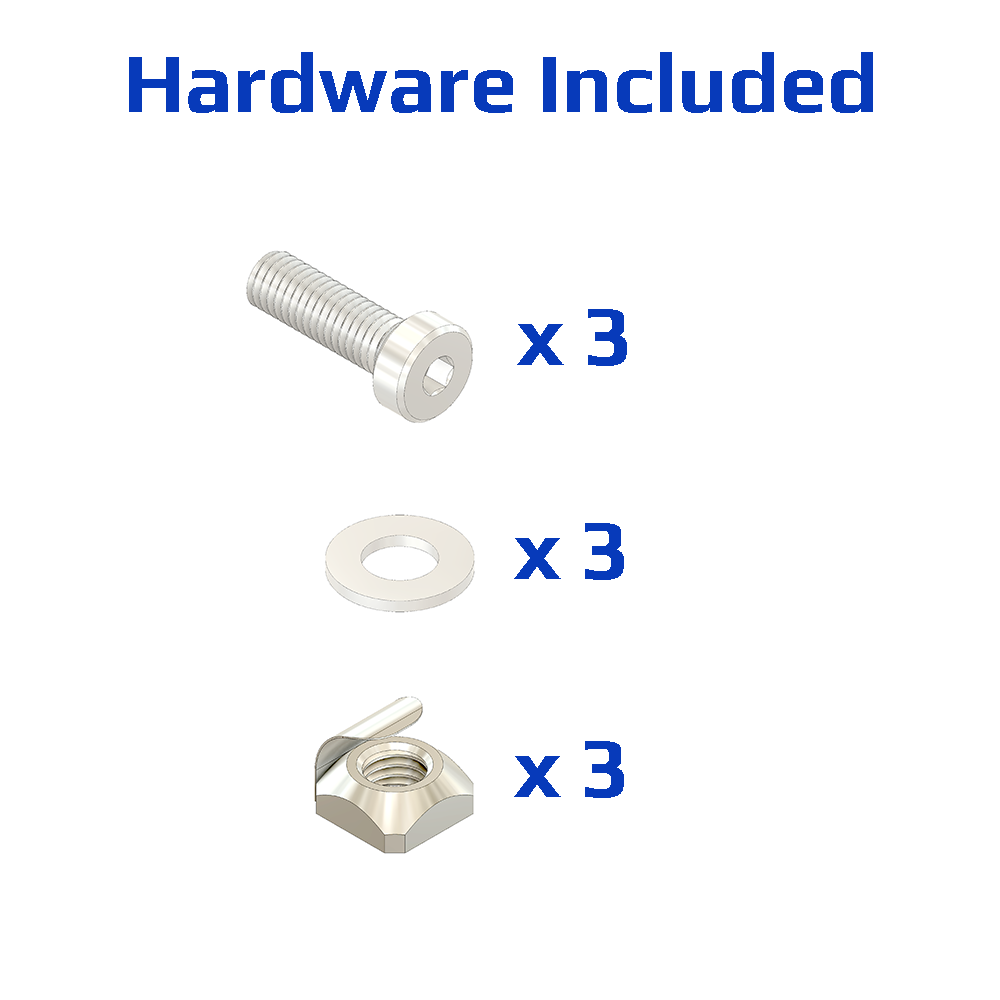

INCLUDES STAINLESS STEEL MOUNTING HARDWARE
USE WITH: 45 X 45 OR 45 X 90 PROFILE

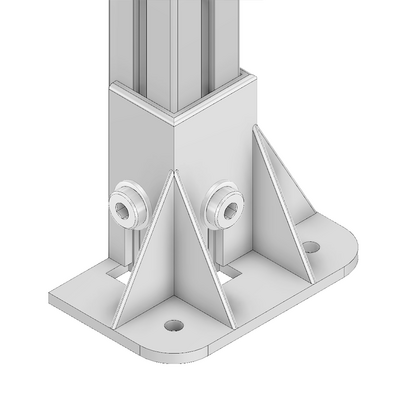

ATTACHES 45 SERIES FRAME TO FLOOR
USED WITH: 24-383-0 OR 24-383S-0 FLOOR ANCHORS
PART # WITHOUT HARDWARE IS 33-45453S-0NOT FINDING WHAT YOU NEED?
CONTACT US
PARTICALLY ENCLOSED
COLOR: METALLIC
MATERIAL: CAST ALUMINUM
105MM TALL-135MM X 83MM WIDE-11MM ANCHOR HOLES
UP TO 40MM OF HEIGHT OF ADJUSTMENT
INCLUDES STAINLESS STEEL MOUNTING HARDWARE
USE WITH: 45 X 45 OR 45 X 90 PROFILE
ATTACHES 45 SERIES FRAME TO FLOOR
USED WITH: 24-383-0 OR 24-383S-0 FLOOR ANCHORS
PART # WITHOUT HARDWARE IS 33-45453S-0NOT FINDING WHAT YOU NEED?
CONTACT US
Click image to enlarge
Specifications
| PROFILE USED WITH | 45 X 45 |
| NUMBER OF SIDES | 3 MOUNTING SIDES |
| MOUNTING HARDWARE | PARTICALLY ENCLOSED |
| STAINLESS STEEL HARDWARE |
Item # 33-45453S-1SS
MODULAR SOLUTIONS FLOOR ANCHORING FOOT, THREE SIDED FOR 45MM X 45MM WITH STAINLESS STEEL HARDWARE
