Item # 33-9090-0

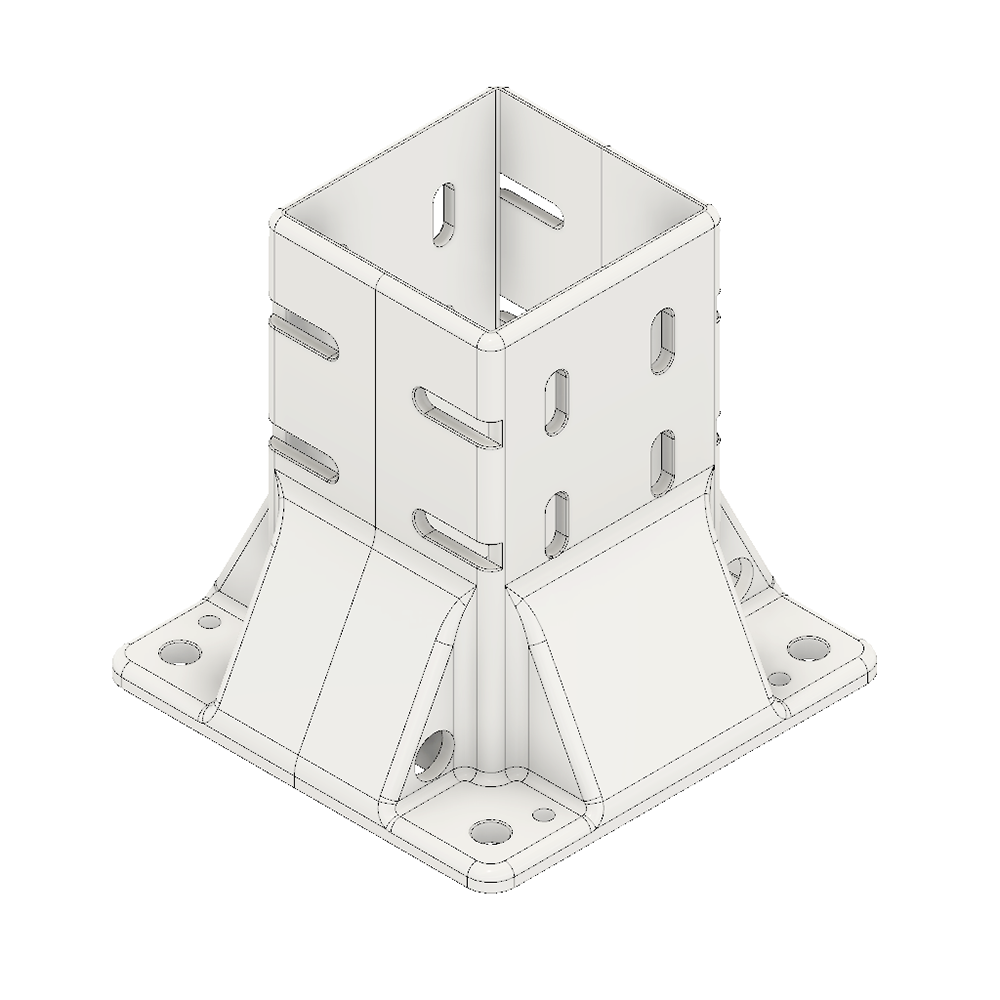

MODULAR SOLUTIONS FOOT
90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
- $47.64 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 5.02
MODULAR SOLUTIONS FOOT-90MM X 90MM FOUR SIDED W/12MM FLOOR ANCHOR HOLES
- MOUNTING FOOT 4 SIDED FOR 90 X 90
- FULLY ENCLOSED
- METALIC IN COLOR
- MATERIAL: CAST ALUMINUM
TECHNICAL
- WITH 12MM FLOOR ANCHOR HOLES
- UP TO 40MM OF HEIGHT OF ADJUSTMENT
- WORK WITH 1/2 IN X 3 3/4 IN WEDGE ANCHOR 24-123-0
INFO
- WORKS WELL WITH PROFILES 10-9090
- NO HARDWARE INCLUDED
CONTACT US
Click image to enlarge
Specifications
| PROFILE USED WITH | 90 X 90 |
| NUMBER OF SIDES | 4 MOUNTING SIDES |
| MOUNTING HARDWARE | FULLY ENCLOSED |
| NOT INCLUDED |
Item # 33-9090-0
MODULAR SOLUTIONS FOOT
90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
