Item # 34-030-3

SUPPORT ANGLE BRACKET
30 SERIES FLOOR FASTENING W/ HARDWARE

  • $9.90 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 0.25

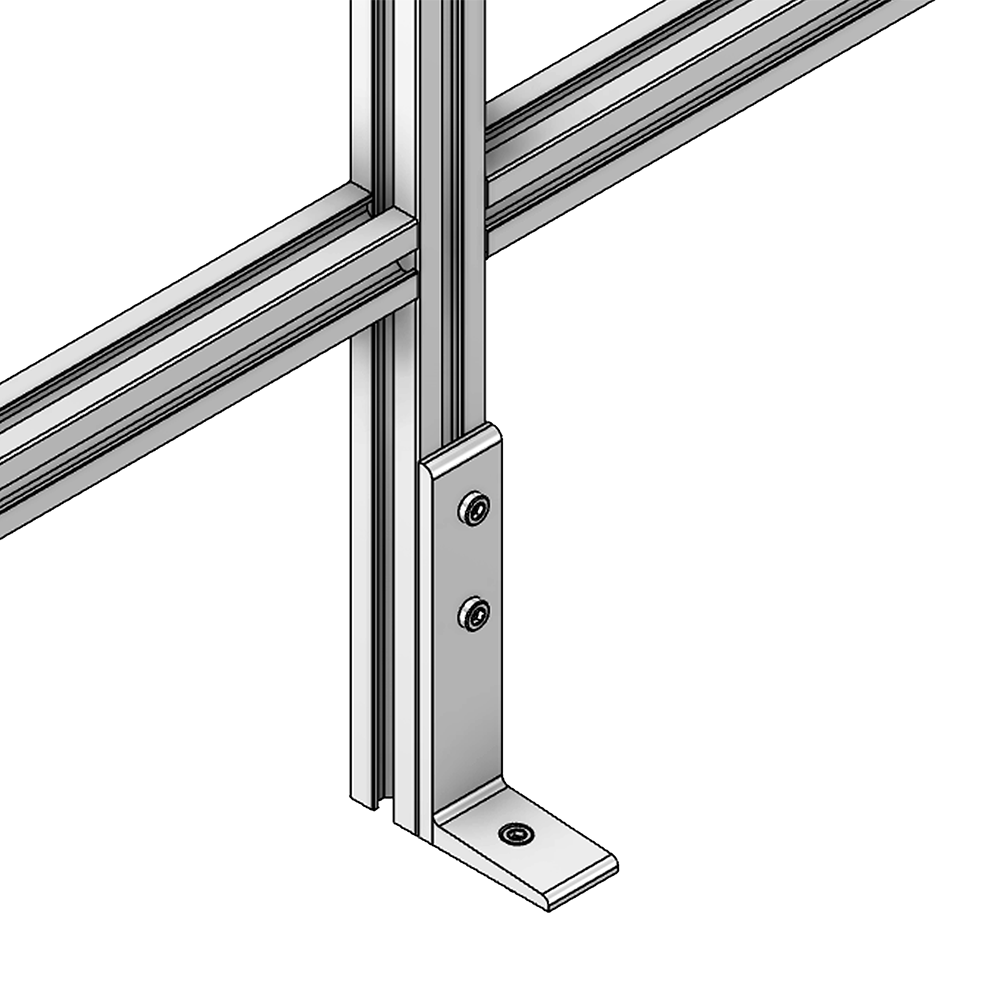

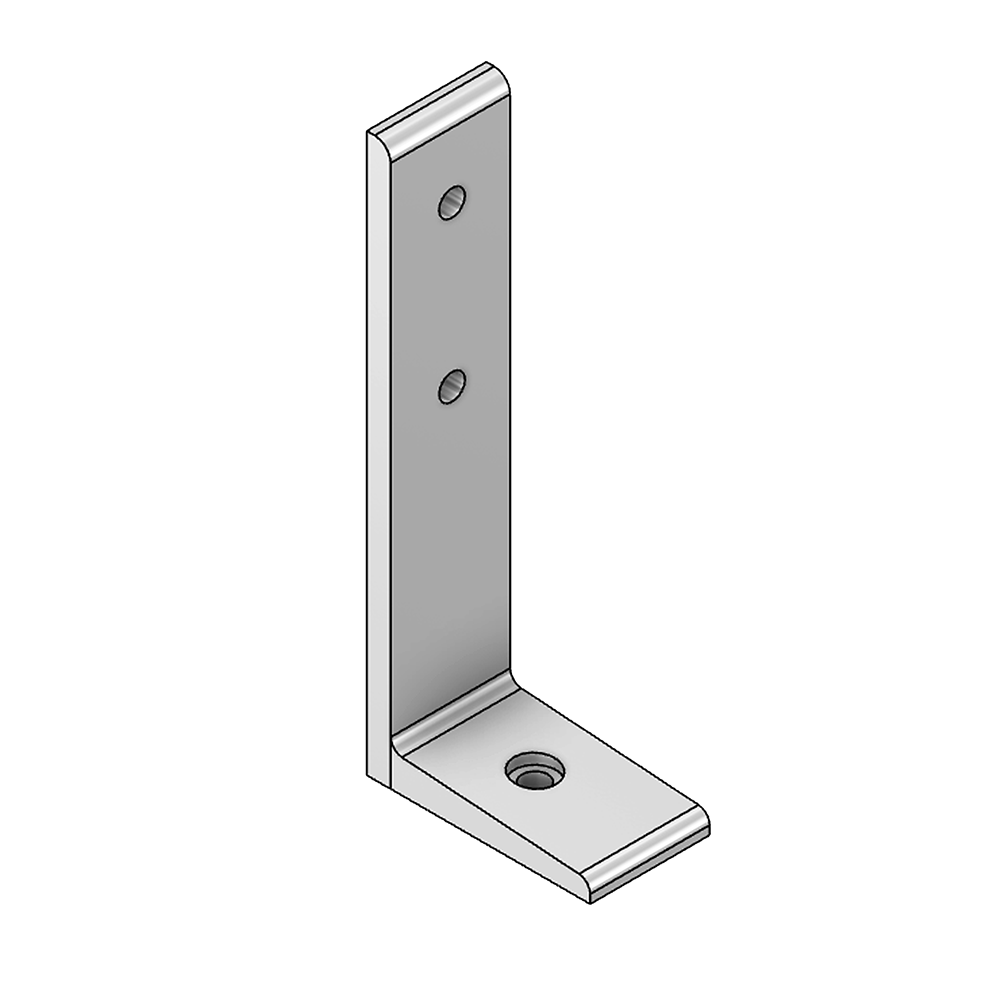

ALUMINUM PROFILE SUPPORT ANGLE BRACKET-30 SERIES FLOOR FASTENING

  • FLOOR FASTENING BRACKET 140
  • 30MM WIDE X 140MM TALL
  • CLEAR COAT ANODIZED
  • MATERIAL: ALUMINUM

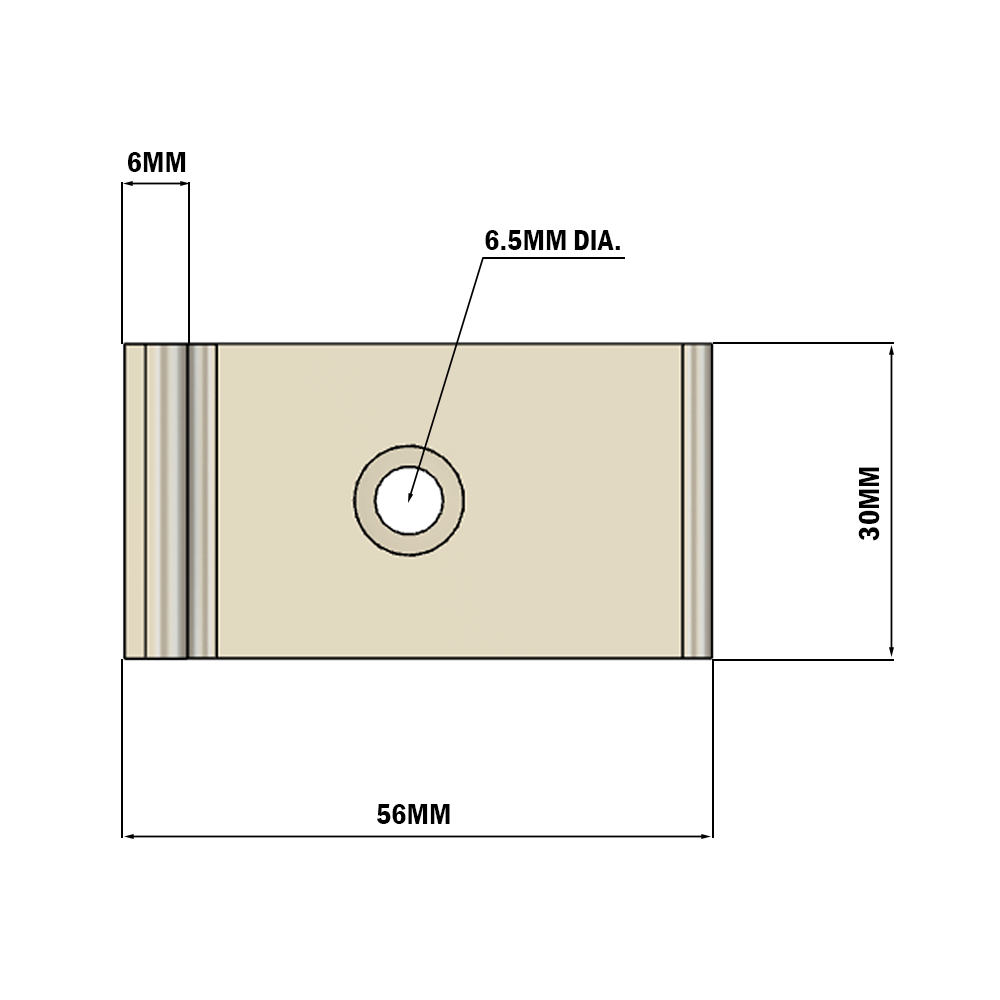

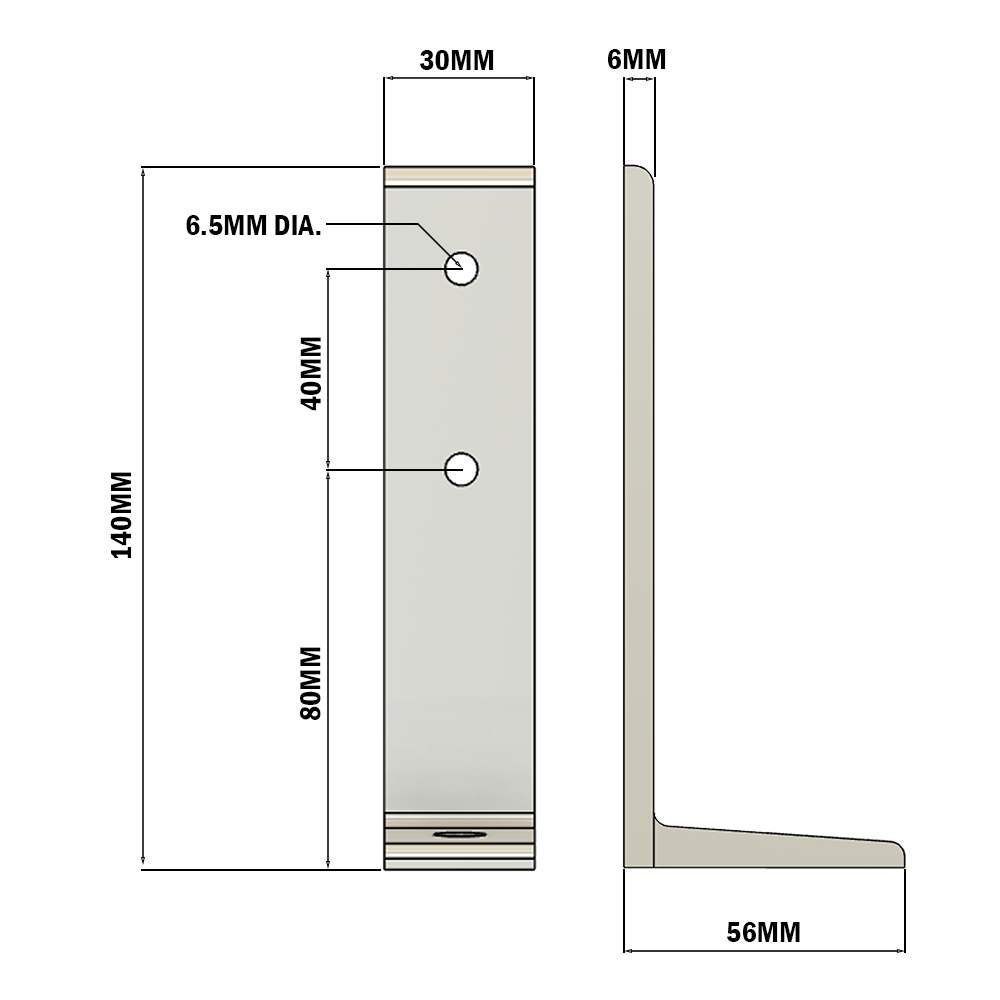

TECHNICAL

  • WEIGHT: 0.1 LBS. / 0.05 KG.
  • 8.5MM ANCHOR THROUGH HOLE
  • HEIGHT - 140MM
  • WORKS WITH 3/8 IN X 3 IN WEDGE ANCHOR 24-383-0

INFO

  • HARDWARE INCLUDED

NOT FINDING WHAT YOU NEED?
CONTACT US

34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
Click image to enlarge
34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE

Item # 34-030-3

SUPPORT ANGLE BRACKET
30 SERIES FLOOR FASTENING W/ HARDWARE

  • $9.90 / EA
    • Log in to see if custom discounts apply

    Documents

    34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
    34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
    34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
    34-030-3 SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
