Item # 40-010-1
MODULAR SOLUTIONS CONNECTOR
3-WAY BODY CONNECTION ANGLE W/ HARDWARE
- $8.81 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 0.33
GENERAL SPECIFICATIONS:

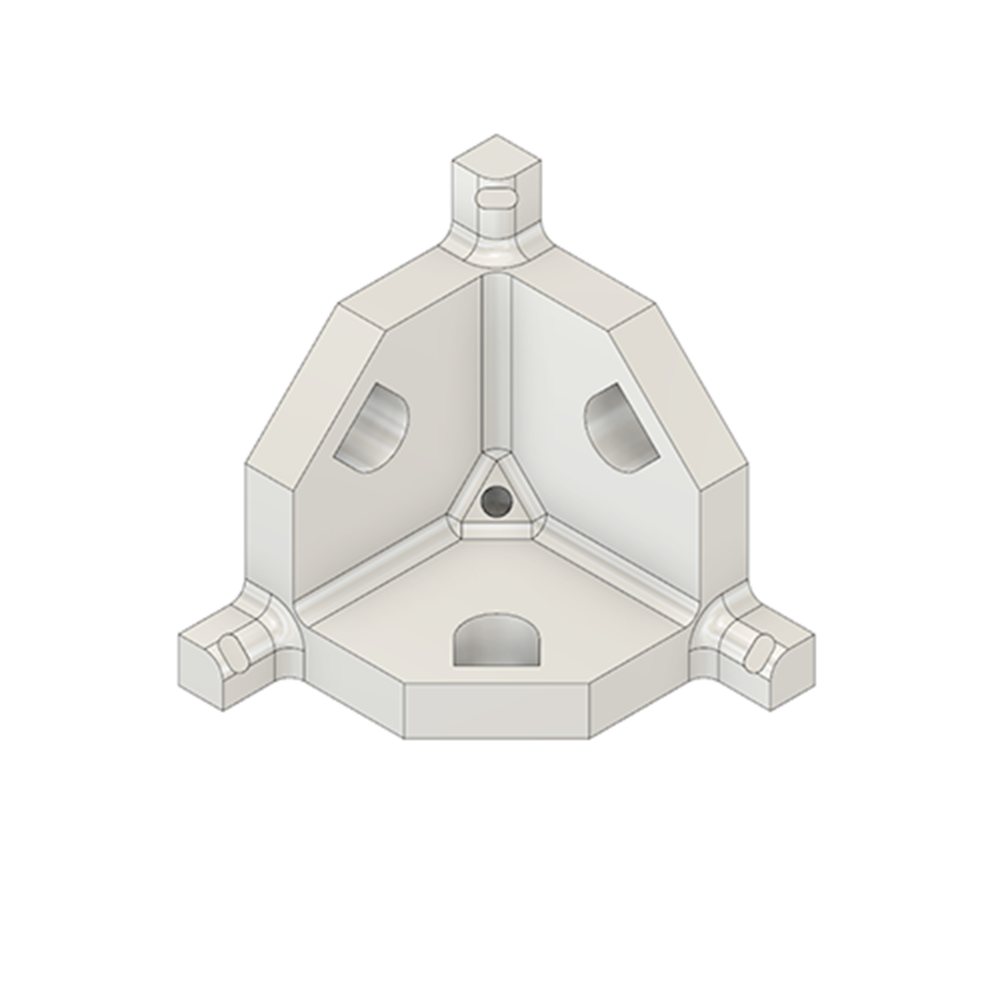

- 3-WAY BODY CONNECTION ANGLE
- ZINC PLATED
- MATERIAL: STEEL
TECHNICAL:

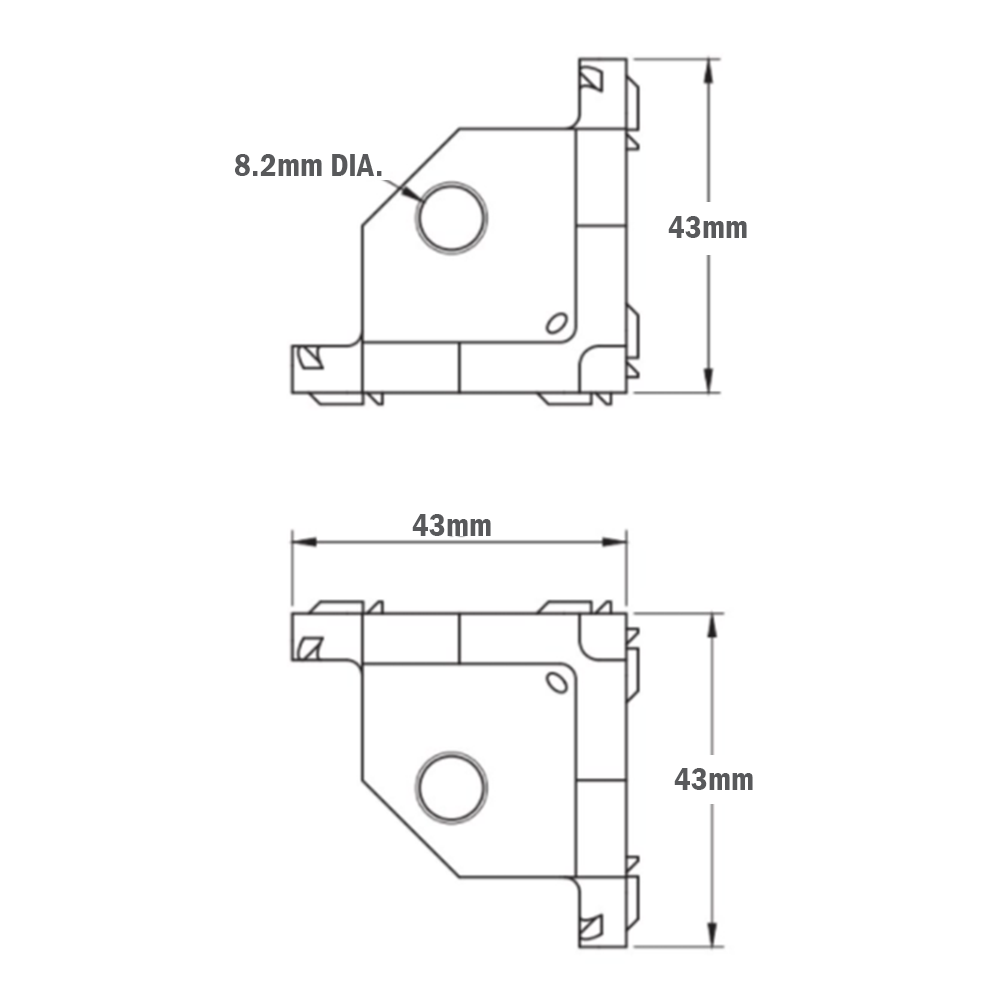

- 43 X 43 X 43MM

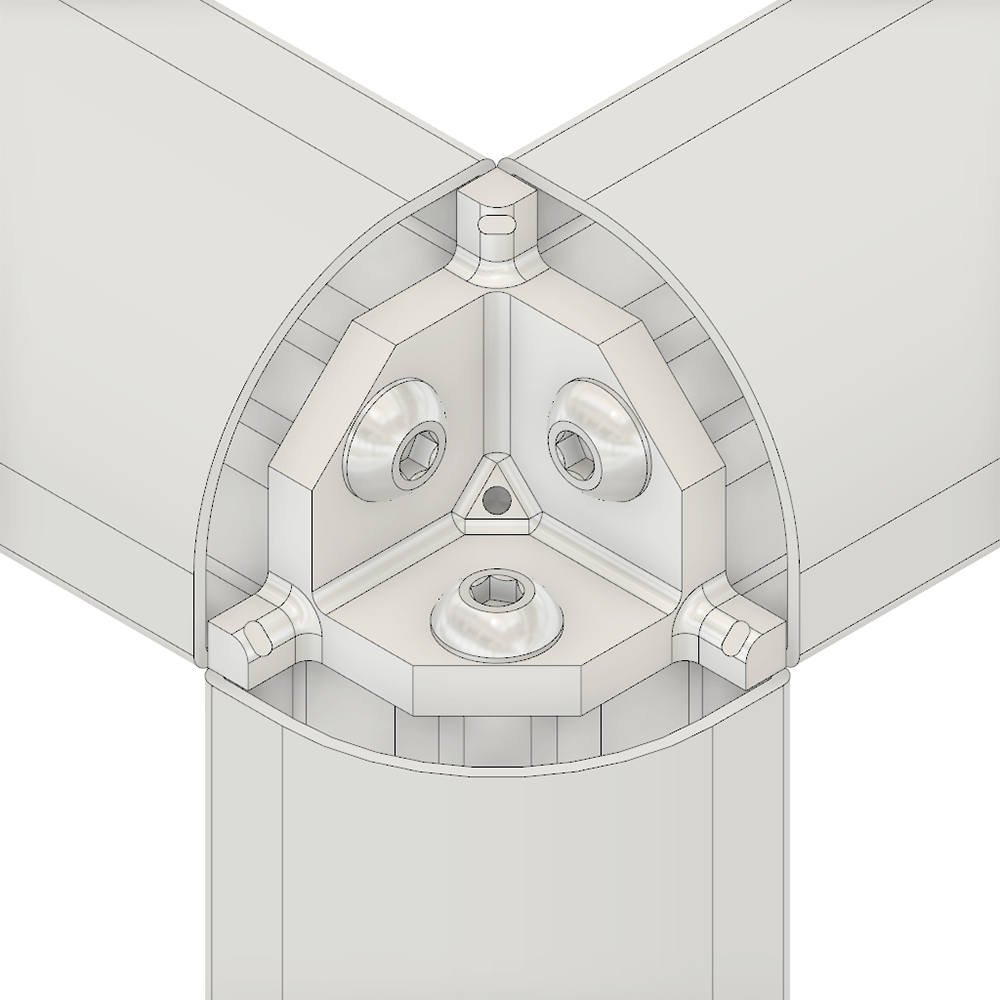

- WORKS WITH COVER 60-260-1 AND -2
- WORKS WELL WITH 10-4545 PROFILES
INFO:
- WORKS WITH COVER 60-260-1 AND -2
- WORKS WELL WITH 10-4545 PROFILES

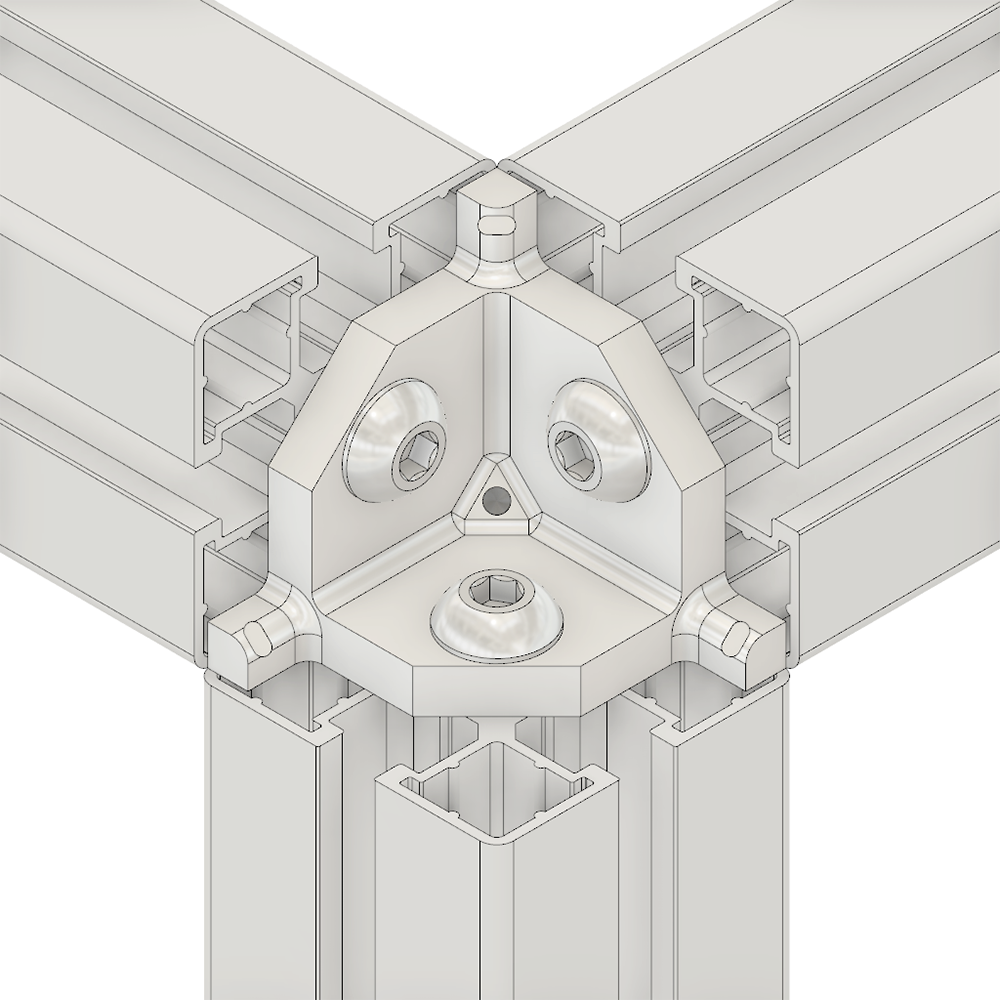

- CREATES 90 DEG 3 WAY CORNER CONNECTION
- FOR ENCLOSURES, TABLES AND OTHER SQUARE/BOX FRAMES
Click image to enlarge
Item # 40-010-1
MODULAR SOLUTIONS CONNECTOR
3-WAY BODY CONNECTION ANGLE W/ HARDWARE
