Item # 40-130-1

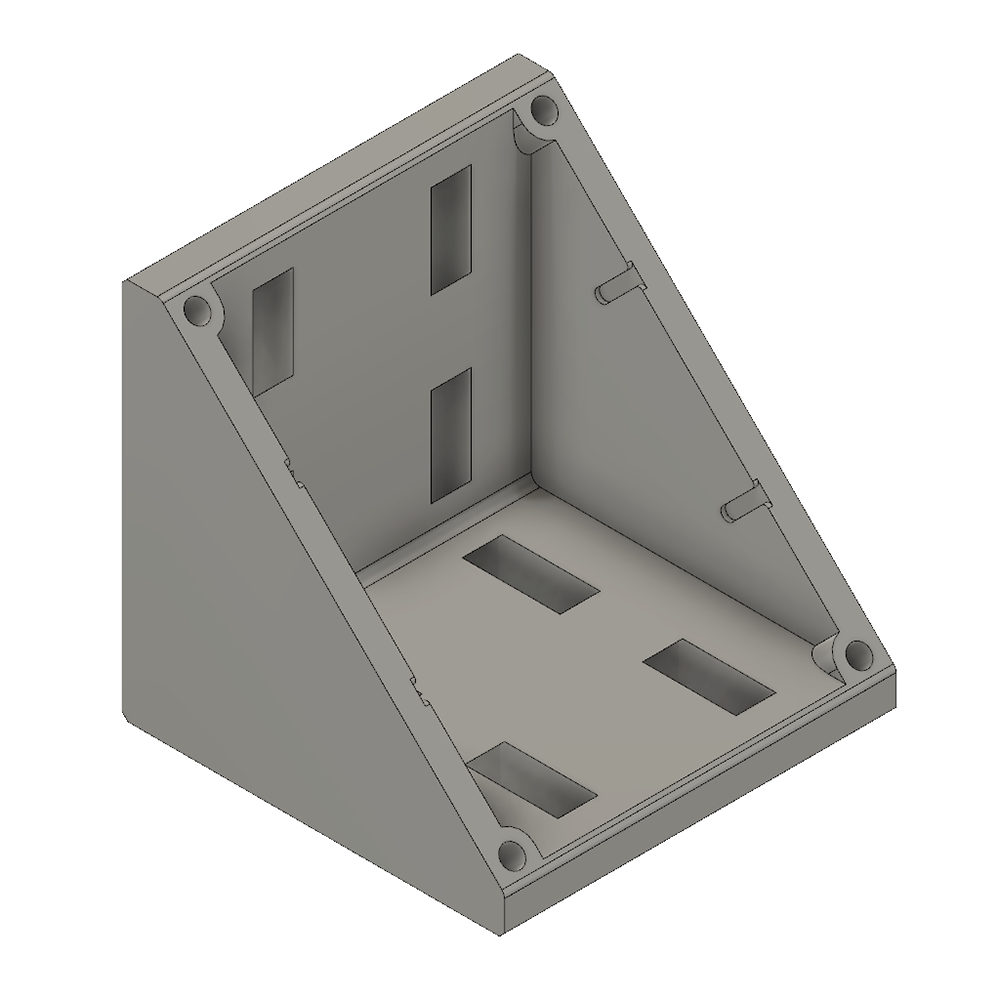

MODULAR SOLUTIONS ALUMINUM GUSSET
90MM X 90MM ANGLE W/HARDWARE
- $16.78 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 0.75
GENERAL SPECIFICATIONS:

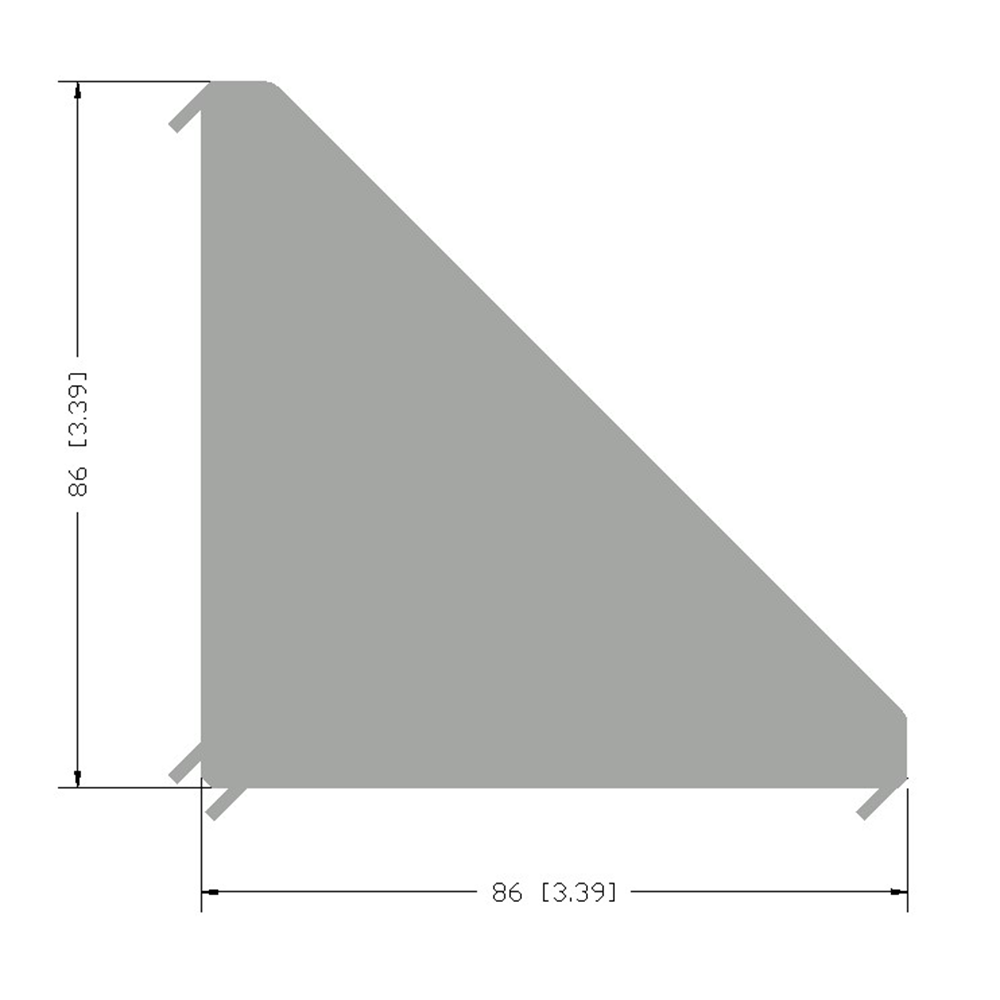

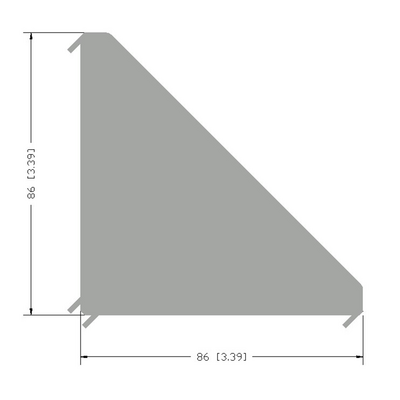

- GUSSET BRACKET 90 X 90
- REINFORCEMENT ANGLE
- PAINTED GRAY
- MATERIAL: CAST ALUMINUM
TECHNICAL:

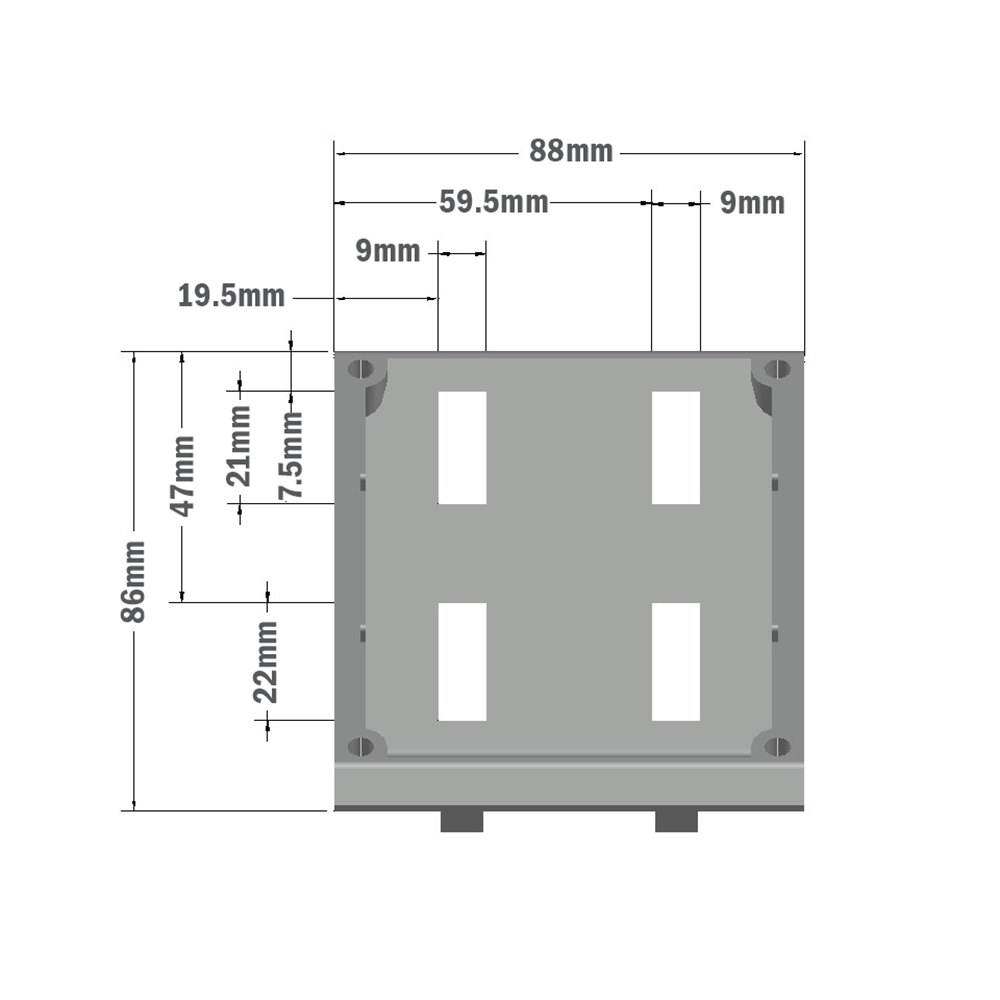

- SLOTTED HOLE FOR M8 BOLT
- CAN BE CLOSED WITH COVER CAP PART 40-230-0
- ANTI ROTATE FOR 8MM T SLOT
- WORKS WELL WITH 10-9090 PROFILES
INFO:
- ANTI ROTATE FOR 8MM T SLOT
- WORKS WELL WITH 10-9090 PROFILES

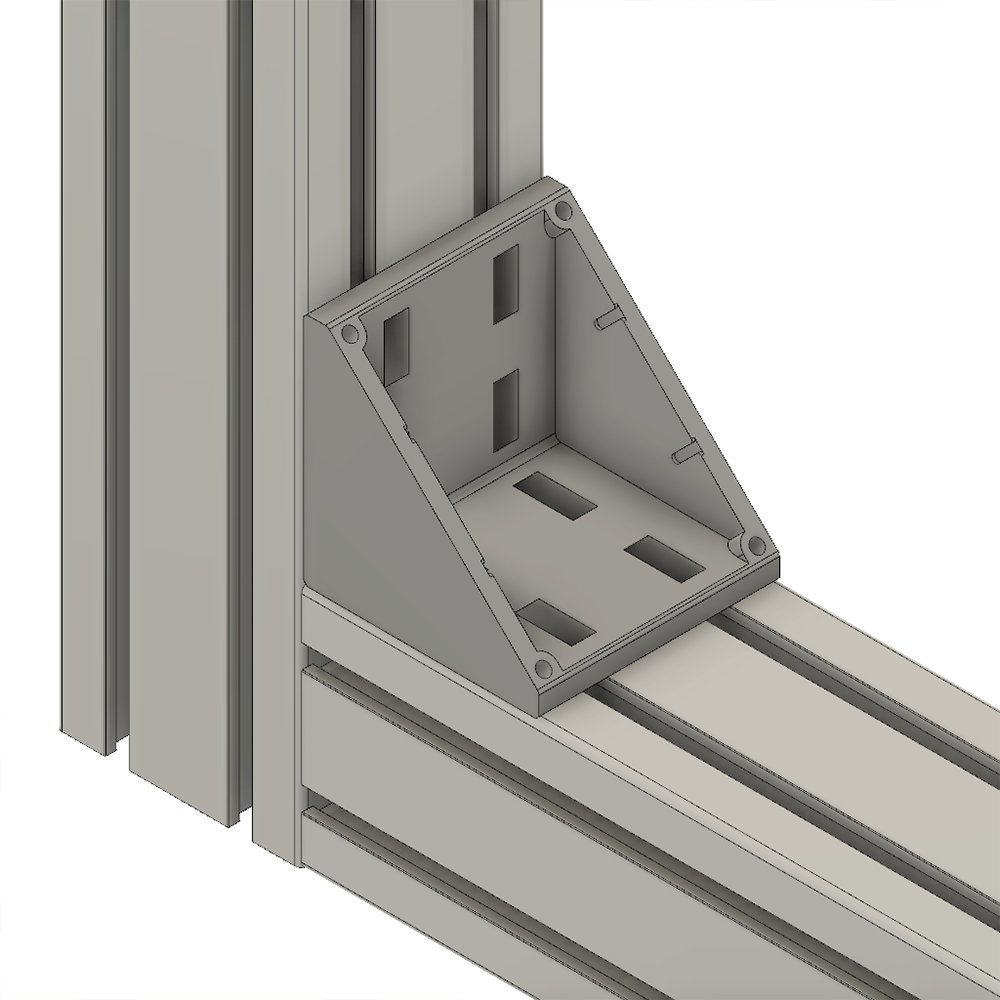

- CONNECTING PROFILES AT RIGHT ANGLES
Click image to enlarge
Item # 40-130-1
MODULAR SOLUTIONS ALUMINUM GUSSET
90MM X 90MM ANGLE W/HARDWARE
Documents
×
