Item # 40-150-3

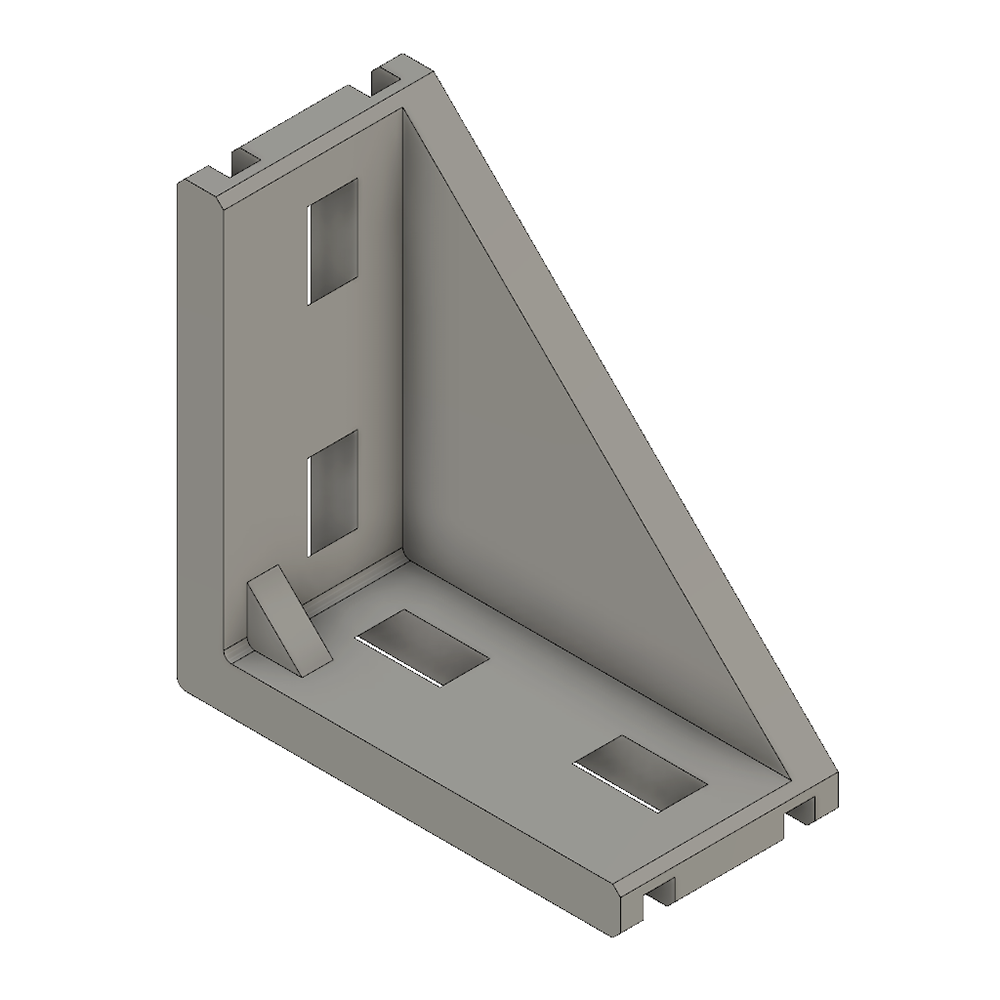

MODULAR SOLUTIONS ALUMINUM GUSSET
30 SERIES 30MM X 60MM ANGLE W/HARDWARE
- $6.56 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 0.13
- GUSSET BRACKET 30 X 60
- REINFORCEMENT ANGLE
- PAINTED GRAY
- MATERIAL: CAST ALUMINUM

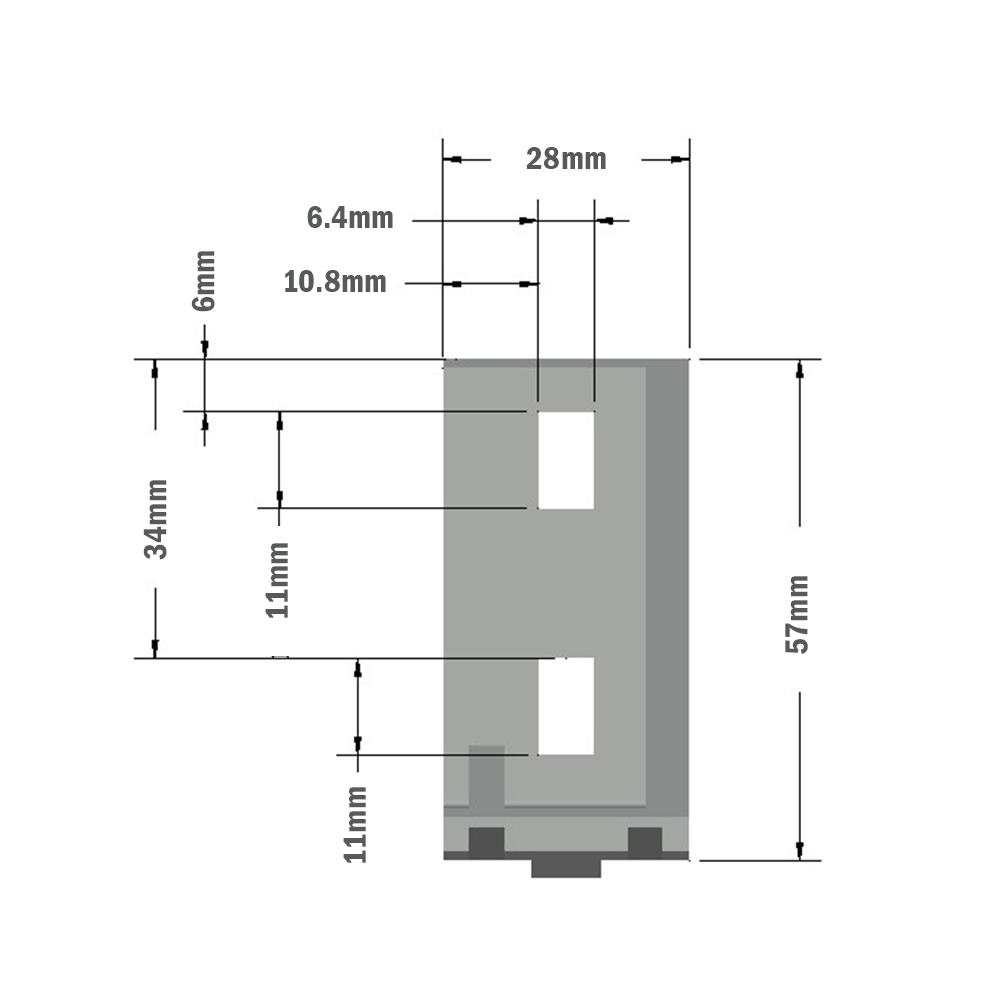

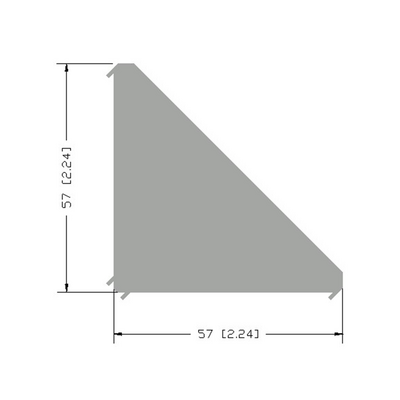

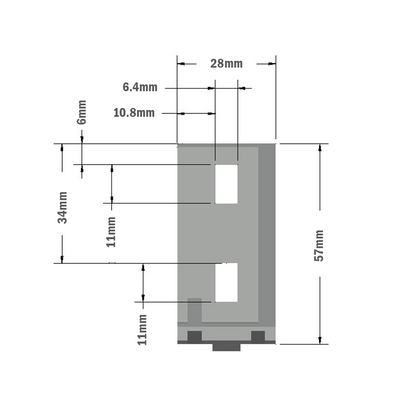

TECHNICAL
- SLOTTED HOLE FOR M8 BOLT
- THIS BRACKET CAN BE CLOSED WITH COVER CAP 40-250-0
- ANTI ROTATE FOR 8MM T SLOT
- INCLUDES FASTENING KIT TO PROFILE
INFO
- WORKS WELL WITH 10-3030 & 10-3060 PROFILES

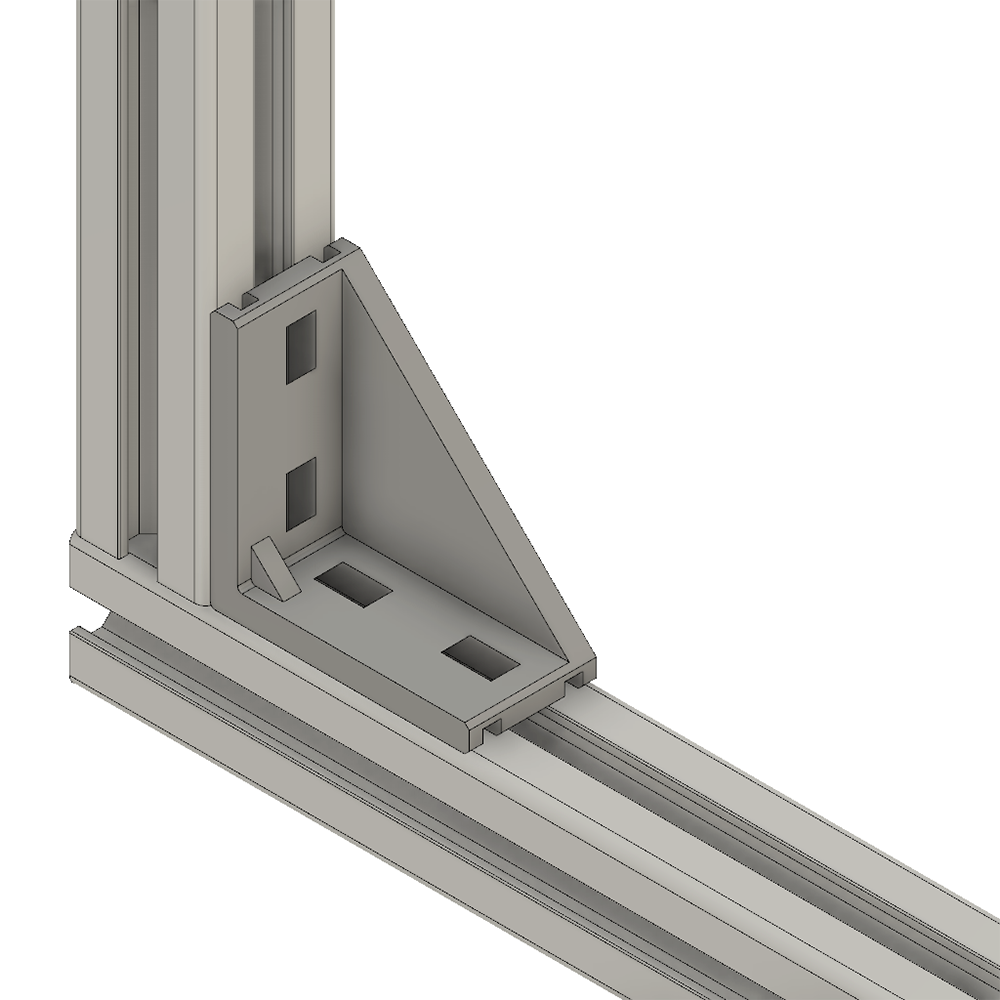

- CONNECTING PROFILES AT RIGHT ANGLES
MODULAR SOLUTIONS ALUMINUM GUSSET-30 SERIES 30MM X 60MM ANGLE W/HARDWARE
- GUSSET BRACKET 30 X 60
- REINFORCEMENT ANGLE
- PAINTED GRAY
- MATERIAL: CAST ALUMINUM
TECHNICAL
- SLOTTED HOLE FOR M8 BOLT
- THIS BRACKET CAN BE CLOSED WITH COVER CAP 40-250-0
- ANTI ROTATE FOR 8MM T SLOT
- INCLUDES FASTENING KIT TO PROFILE
INFO
- WORKS WELL WITH 10-3030 & 10-3060 PROFILES
- CONNECTING PROFILES AT RIGHT ANGLES
Click image to enlarge
Item # 40-150-3
MODULAR SOLUTIONS ALUMINUM GUSSET
30 SERIES 30MM X 60MM ANGLE W/HARDWARE
Documents
×
